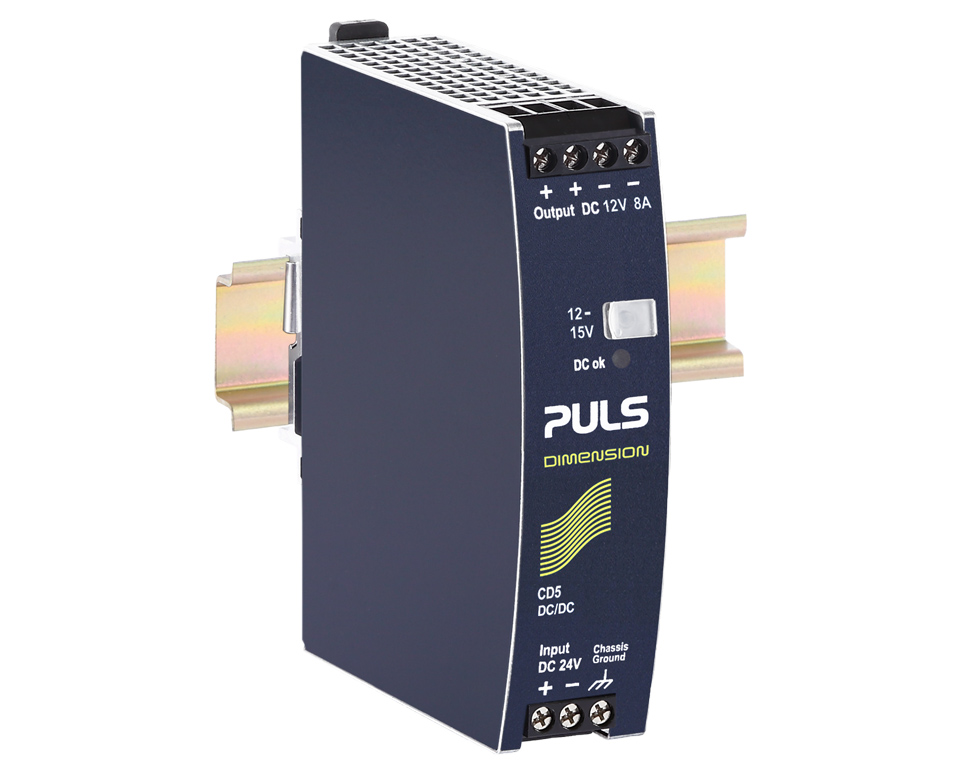

CD5.121
12 V, 8 A
DC output | 12 - 15 Vdc |
---|---|
8 - 6.4 A | |
96 W | |
Input | DC 24 V (-25 %/+35 %) |
Dimensions (WxHxD) | 32 x 124 x 102 mm |
Weight | 425 g |
Input data
DC Input voltage | DC 24 V (-25 %/+35 %) |
---|
Output data
Nominal voltage | 12 Vdc |
---|---|
Adjustment range | 12 - 15 V |
Output current range | 8 - 6.4 A |
Output current | 6.4 A at 15 V |
8 A at 12 V | |
Output power | 96 W |
Power reserves | 20 % Power Boost |
Derating | 2.5 W/°C for >+60 °C |
Ripple and noise voltage max. | 75 mVpp |
Overview
Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
---|---|
Weight per unit (excl. packaging) | 425 g |
Mounting method | DIN rail |
Operating temp. range | -25 °C to 70 °C |
Connection method | Screw terminals |
Efficiency, typ. | 88.2 % |
Power losses, typ. | 12.8 W |
MTBF SN 29500 @ 40 °C (h) | 1161000 h |
