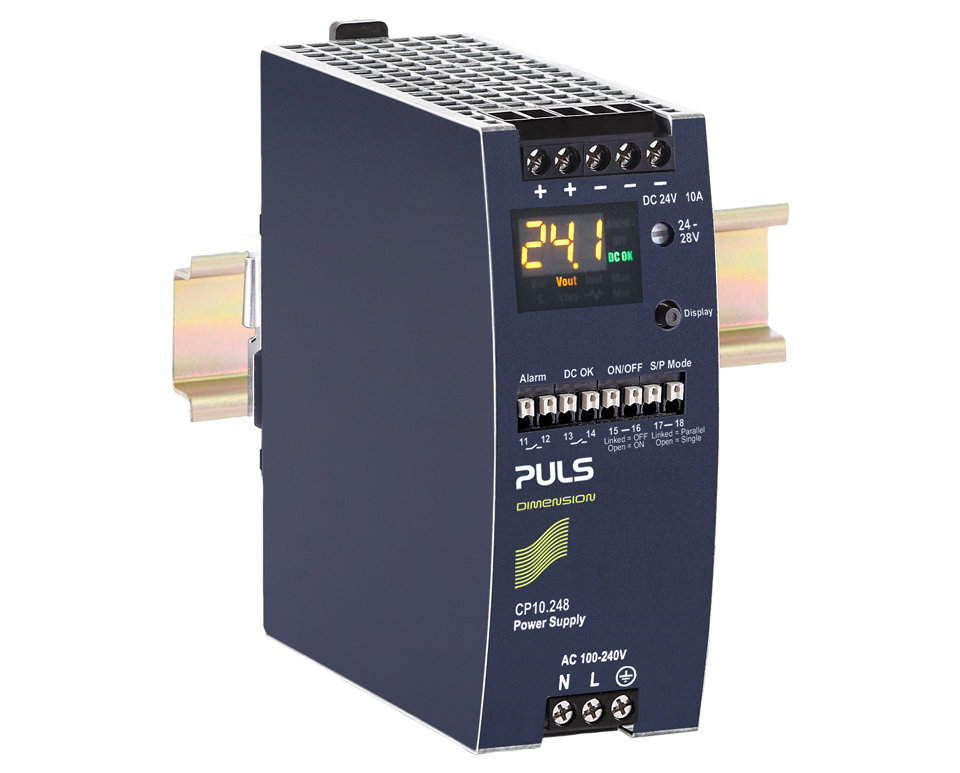

CP10.248
DIN rail power supplies for 1-phase system
24 V, 10 A integrated power supply condition display (PSCD)
Datasheet
24 V, 10 A integrated power supply condition display (PSCD)
| DC output | 24 - 28 Vdc |
|---|---|
| 10 - 8.6 A | |
| 240 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (± 20 %) | |
| Dimensions (WxHxD) | 48 x 124 x 127 mm |
| Weight | 675 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (± 20 %) |
| Power factor | 0.97 |
| Input inrush current limitation | active |
| Input inrush current | 6 A / 9 A |
| External input fuse recommendation | B-10 A / C-10 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 10 - 8.6 A |
| Output current | 8.6 A at 28 V |
| 10 A at 24 V | |
| Output power | 240 W |
| Power reserves | 20 % power reserves |
| Derating | 6 W/°C for +60 to +70 °C |
| 15 W/1000 m for altitudes >2000 m | |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 48 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 675 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 94.9 % |
| Power losses, typ. | 12.8 W |
| DC-OK signal | yes |
