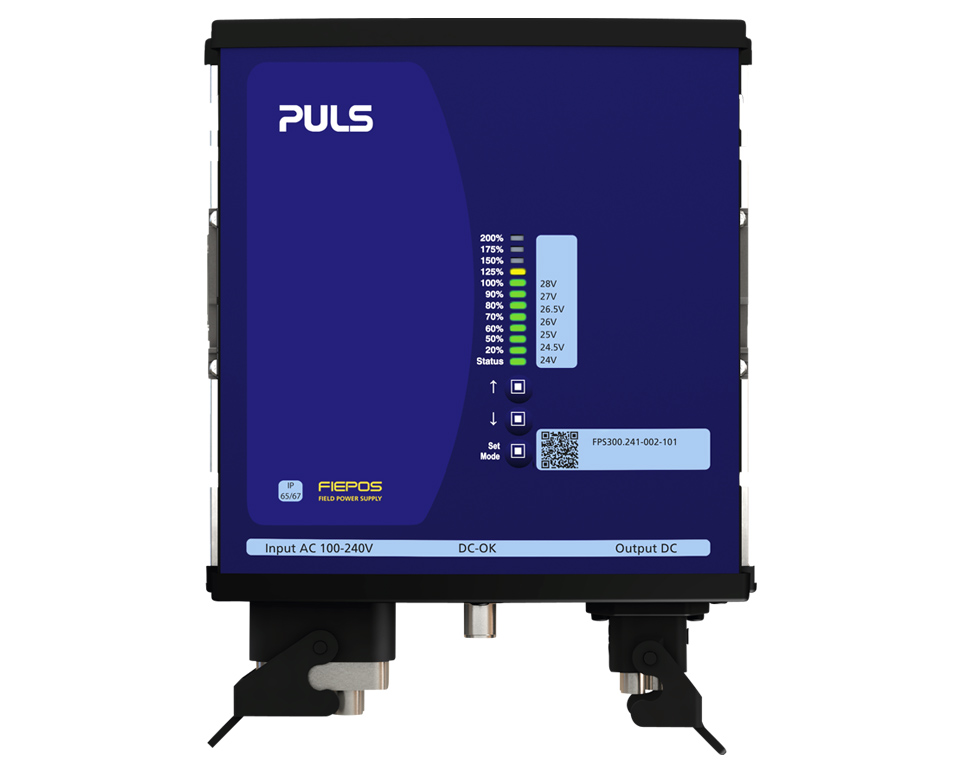

FPS300.241-002-101
24 V, 15 A Input: HanQ4/2 | Output: HanQ4/0
DC output | 24 - 28 Vdc |
---|---|
15 - 12.9 A | |
360 W | |
Input | AC 100 - 240 V (-15 %/+10 %) |
DC 110 V - 300 V (± 20 %) | |
Dimensions (WxHxD) | 182 x 183 x 59 mm |
Weight | 1200 g |
Input data
AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
---|---|
DC Input voltage | DC 110 V - 300 V (± 20 %) |
Power factor | 0.97 |
Input inrush current limitation | NTC |
Input inrush current | 3 A / 7 A |
External input fuse recommendation | B-6 A / C-6 A |
Output data
Nominal voltage | 24 Vdc |
---|---|
Adjustment range | 24 - 28 V |
Output current range | 15 - 12.9 A |
Output current | 12.9 A at 28 V |
15 A at 24 V | |
Output power | 360 W |
Power reserves | 600 W (up to 5s) |
Derating | 10 W/°C for +55 to +70 °C |
Ripple and noise voltage max. | 50 mVpp |
Overview
Dimensions (WxHxD) | 182 mm x 183 mm x 59 mm |
---|---|
Weight per unit (excl. packaging) | 1200 g |
Operating temp. range | -25 °C to 70 °C |
Connection method | Input: HanQ4/2 | Output: HanQ4/0 |
Efficiency, typ. | 95.6 % |
Power losses, typ. | 16.2 W |
DC-OK signal | yes |
