PISA11.406

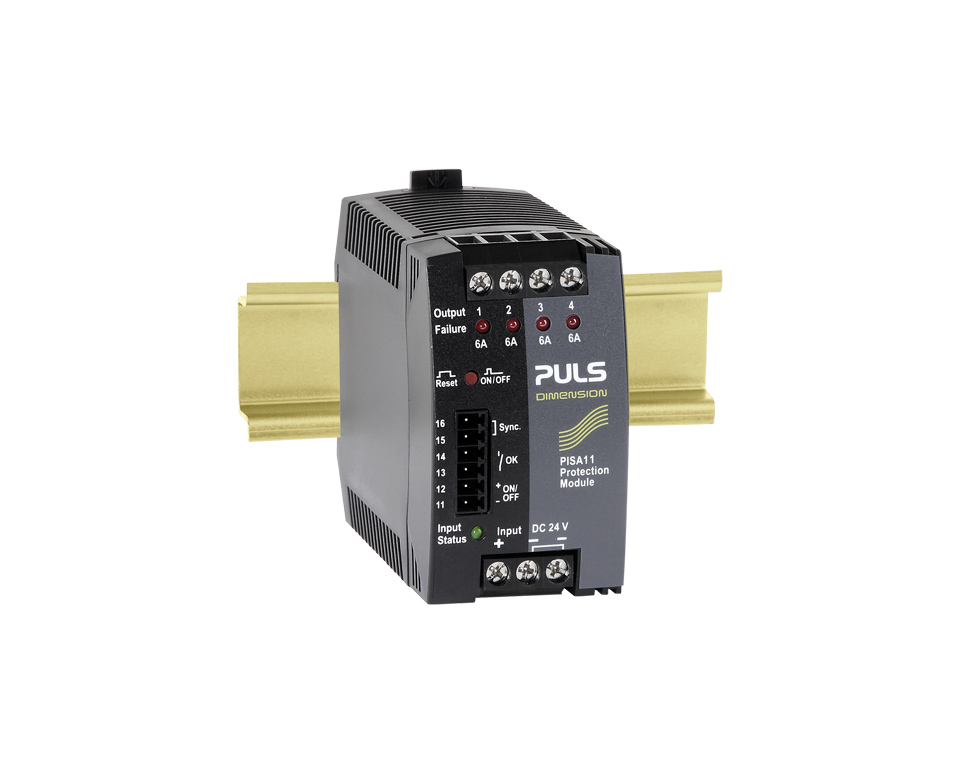

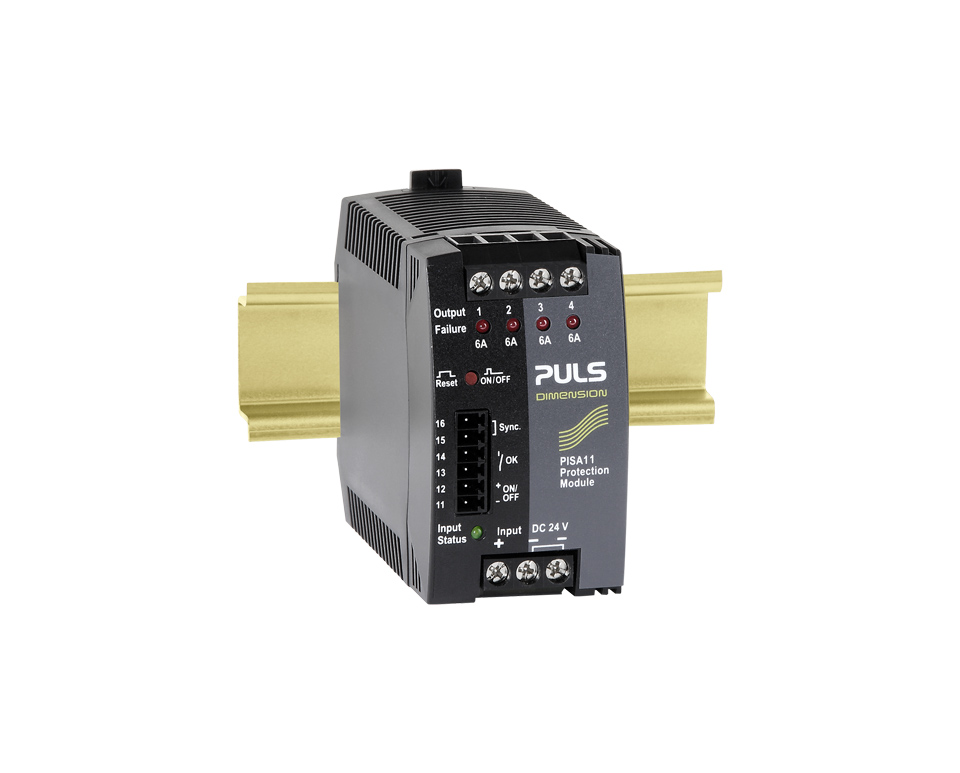

Electronic circuit breaker
24 V, 20 A 4 output channels: 4x 6A
Datasheet
24 V, 20 A 4 output channels: 4x 6A
| DC output | DC 24 V |
|---|---|
| 6 A 6 A 6 A 6 A | |
| Input | DC 18 V - 30 V |
| Dimensions (WxHxD) | 45 x 75 x 91 mm |
| Weight | 120 g |
Input data
| DC Input voltage | DC 18 V - 30 V |
|---|---|
| DC Input current at no load, typ. | 43 mA |
| Input voltage required to switch on the outputs, typ. | 21.4 Vdc |
| Input voltage protection level min./max. | 21 - 21.8 Vdc |
Output data
| Adjustment range | 24 - 28 V |
|---|---|
| Output current | 6 A 6 A 6 A 6 A |
| Output current (sum of all outputs) | 20 A |
| Output current limitation min./max. | 20.5 / 30 A |
| Turn-on delay of outputs | 270 ms |
| Shutdown-times at short circuit, typ. | 8 ms |
Overview
| Dimensions (WxHxD) | 45 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 120 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 2.4 W |
| No-load losses, typ. | 1.0 W |
| MTBF SN 29500 @ 40 °C (h) | 1942000 h |
