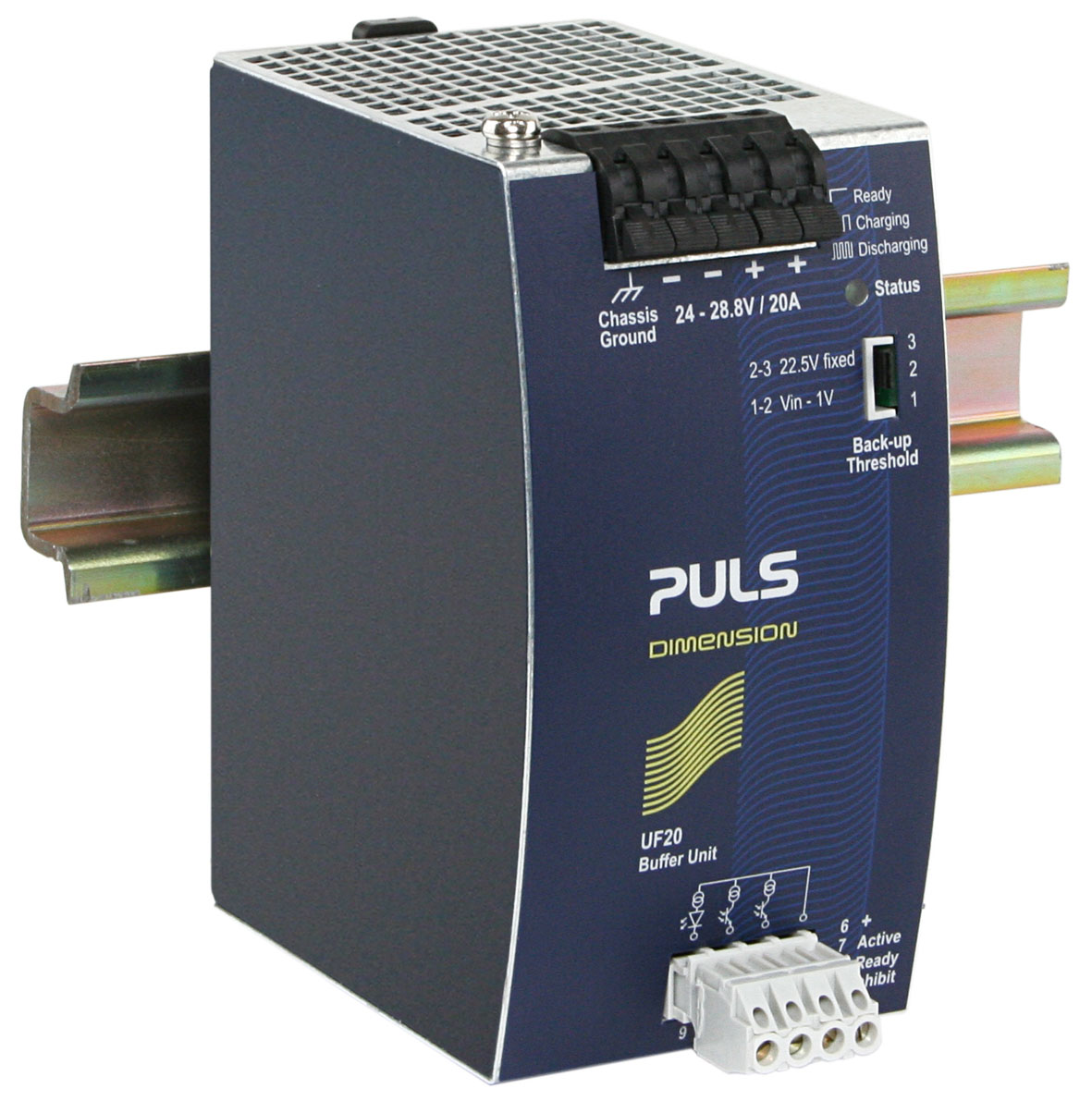

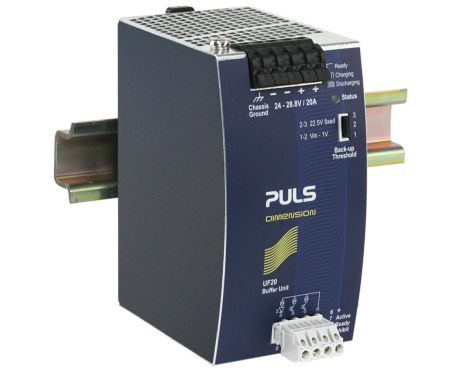

UF20.241

Buffer module
24 V, 20 A
electrolytic capacitor buffer module typ. 310ms at 20A
Datasheet
DC output DC 24 V
20 A
Input DC 24 V - 24 V (-7 %/+20 %)
Dimensions (WxHxD) 64 x 124 x 102 mm
Weight 740 g
Compare

Input data

DC Input voltage DC 24 V - 24 V (-7 %/+20 %)

Output data

Nominal voltage 24 Vdc
22.5 Vds
Output current 24 A
20 A

Buffering

Storage element Electrolytic capacitors

Overview

Dimensions (WxHxD) 64 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 740 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Spring clamps
MTBF SN 29500 @ 40 °C (h) 2327000 h
