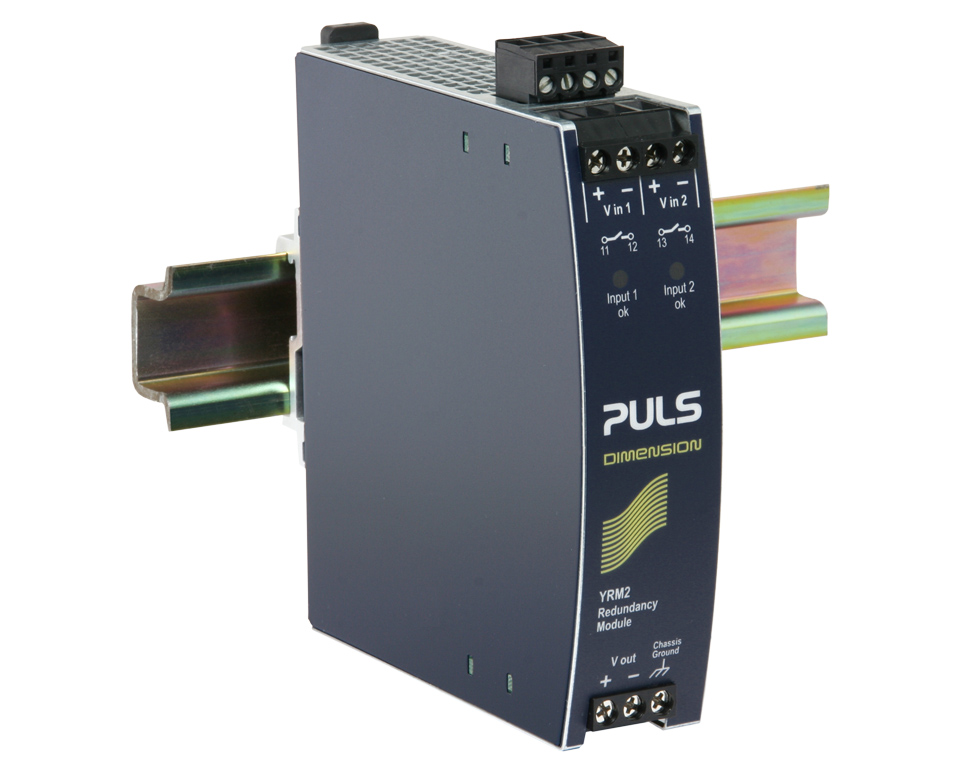

YRM2.DIODE

Diode redundancy module
24 V, 20 A
2x 10A input, with signal contact
Datasheet
DC output 24 - 48 Vdc
20 A
Input DC 24 V - 48 V
Dimensions (WxHxD) 32 x 124 x 117 mm
Weight 350 g
Compare

Input data

Input current 2 x 10 A
Nominal current per input 10 A
DC Input voltage DC 24 V - 48 V
Voltage drop 800 mV

Output data

Output current range 20 A
Output current 20 A
Output current short circuit max. 25 A
Derating 0.5 W/°C for >+60 °C

Overview

Dimensions (WxHxD) 32 mm x 124 mm x 117 mm
Weight per unit (excl. packaging) 350 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 9.0 W
No-load losses, typ. 1 W
MTBF SN 29500 @ 40 °C (h) 9100000 h
