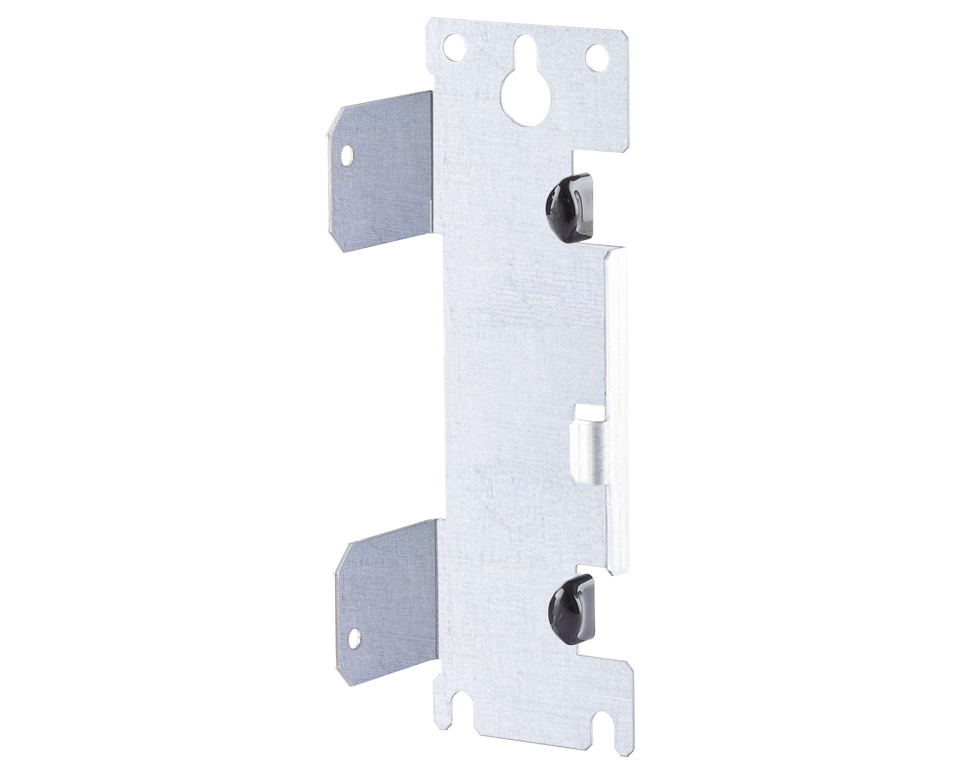

ZM5.WALL

Wall / panel mount bracket

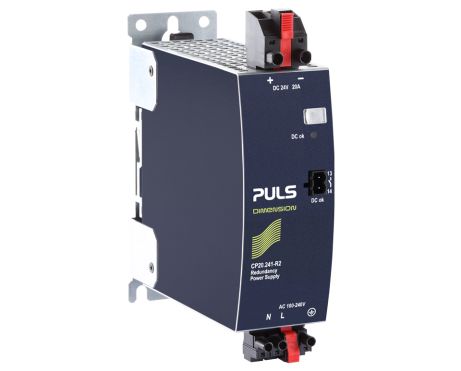

for CP20

Dimensions (WxHxD)	50 x 150 x 37 mm
Weight	110 g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Overview

Dimensions (WxHxD)	50 mm x 150 mm x 37 mm
Weight per unit (excl. packaging)	110 g
Mounting method	Wall mounting
Housing material	Metal

Techn. documentation

Datasheet

(308 KB)

Installation manual

(167 KB)

2-D dimensional mechanical CAD drawing DXF

(391 KB)

2-D dimensional mechanical drawing DWG

(1 MB)

3-D dimensional mechanical CAD model STEP

(43 KB)

3-D dimensional mechanical model DWF

(144 KB)

Image ZM5.WALL

(132 KB)

Approvals / Product Compliance

Material Compliance Declaration – RoHS, REACH, ...

(86 KB)

PULS Conflict Minerals Statement & RMI Reporting Templates (CMRT/EMRT)

(3 MB)

Features

Rugged metal bracket
Suitable for specific DIMENSION units

Commercial info

Article number	ZM5.WALL
Product status	Lead time on request
UPC code	875404002802
Warranty period (months)	36
Country of origin	Czech Republic
Packaging unit	1 PU pc
Weight per piece (excl. packaging)	110 g
E classification	eClass 5.1 27049090
	eClass 6.x 27049090
	eClass 7.x 27049090
	eClass 8.0 27049090
	eClass 9.0 27049090
	ETIM 4.0 EC002625
	ETIM 5.0 EC001024
Customs tariff number	85049090
