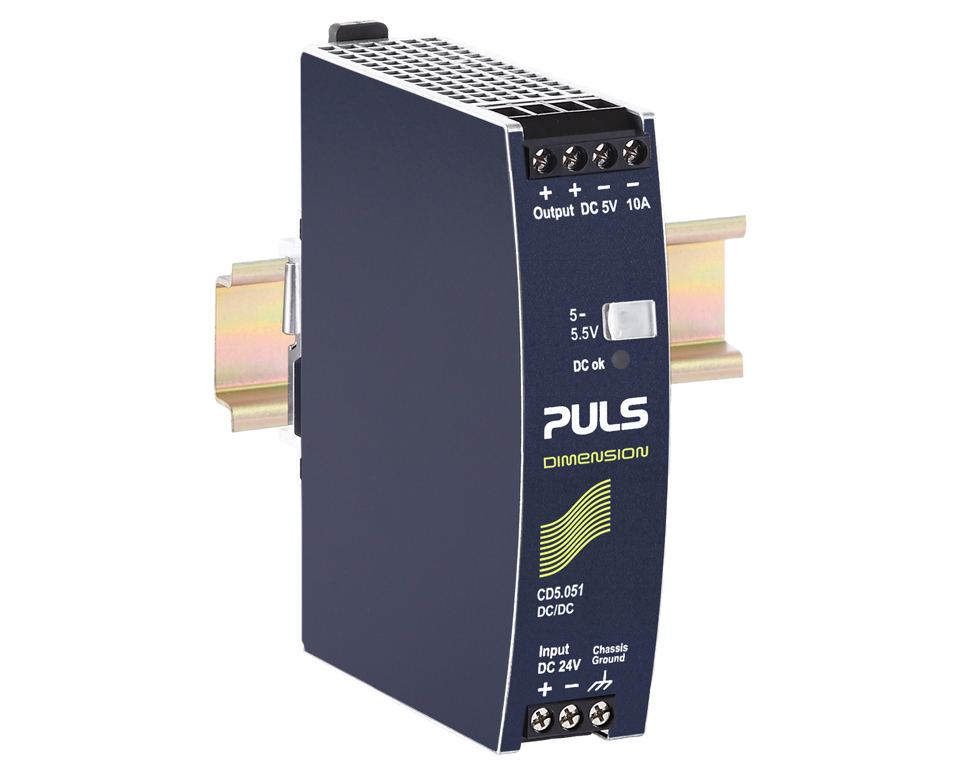

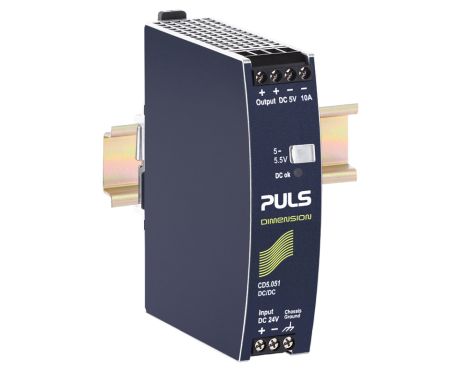

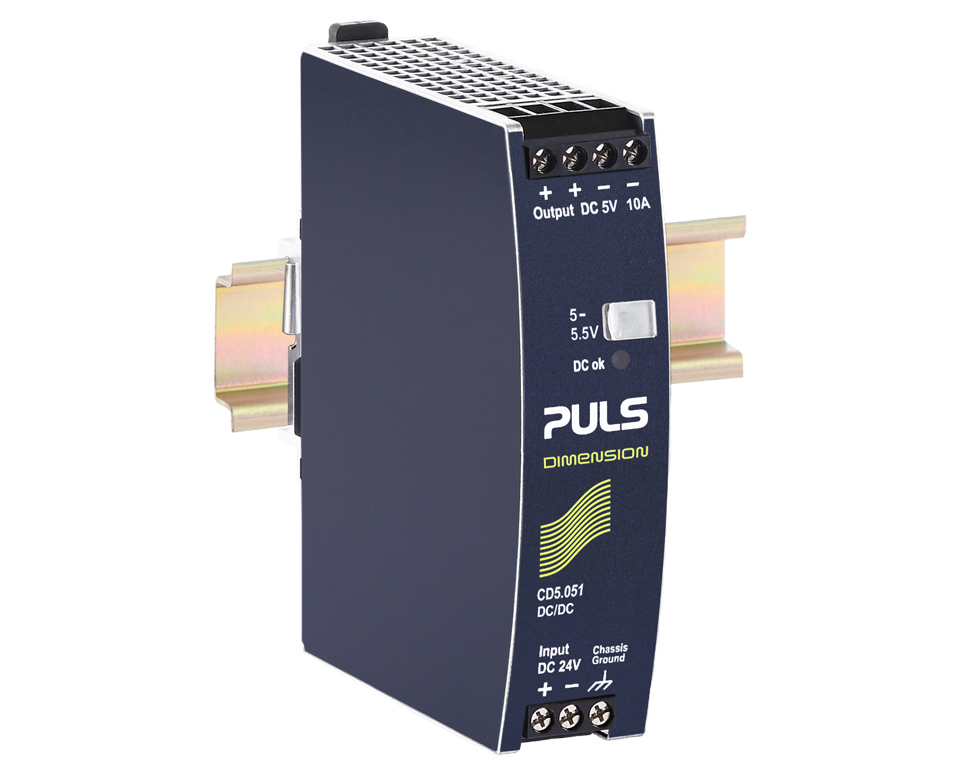

CD5.051

DC/DC converter
5 V, 10 A
Datasheet
DC output 5 - 5.5 Vdc
10 - 10 A
50 W
Input DC 18 V - 32.4 V
Dimensions (WxHxD) 32 x 124 x 102 mm
Weight 425 g
Compare

Input data

DC Input voltage DC 18 V - 32.4 V

Output data

Nominal voltage 5 Vdc
Adjustment range 5 - 5.5 V
Output current range 10 - 10 A
Output current 10 A at 5.5 V
10 A at 5 V
Output power 50 W
Power reserves 20 % Power Boost
Derating 1.25 W/°C for +60 to +70 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 32 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 425 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 81.5 %
Power losses, typ. 11.5 W
