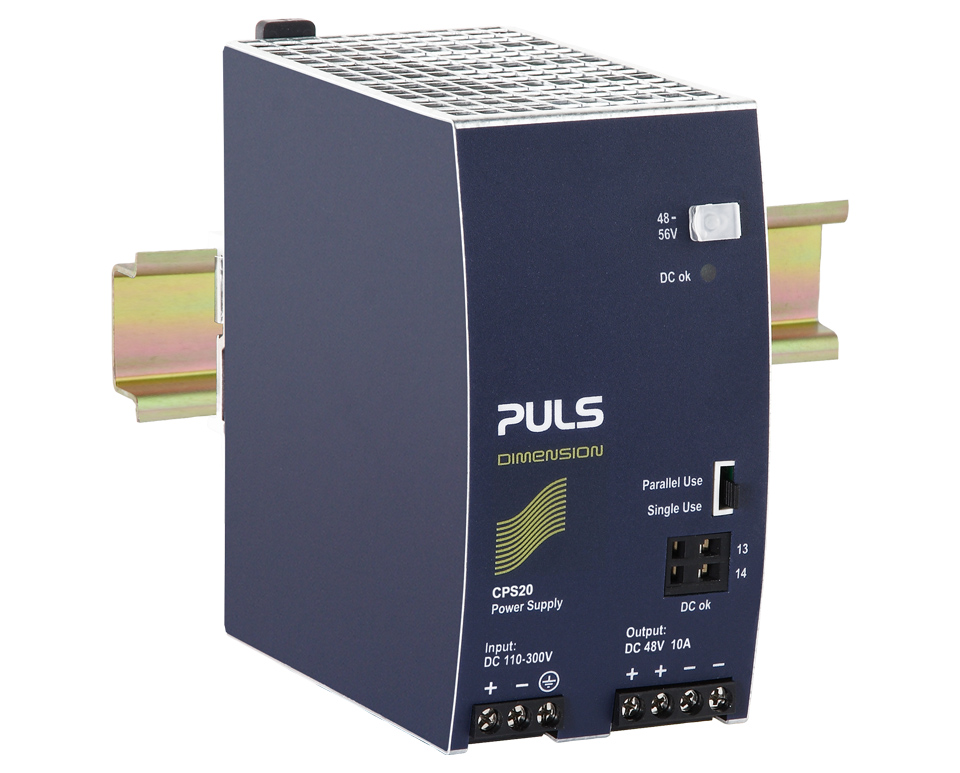

CPS20.481-D1

DC/DC converter
48 V, 10 A
enhanced DC input
Datasheet
DC output 48 - 56 Vdc
10 - 8.6 A
480 W
Input DC 110 V - 300 V (± 20 %)
Dimensions (WxHxD) 65 x 124 x 127 mm
Weight 940 g
Compare

Input data

DC Input voltage DC 110 V - 300 V (± 20 %)
Input inrush current limitation active
Input inrush current 6 A / 4 A

Output data

Nominal voltage 48 Vdc
Adjustment range 48 - 56 V
Output current range 10 - 8.6 A
Output current 8.6 A at 56 V
10 A at 48 V
Output power 480 W
Power reserves 20 % Power Boost
Derating 12 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 65 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 940 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 94.6 %
Power losses, typ. 27.4 W
MTBF SN 29500 @ 40 °C (h) 537000 h
DC-OK signal yes
