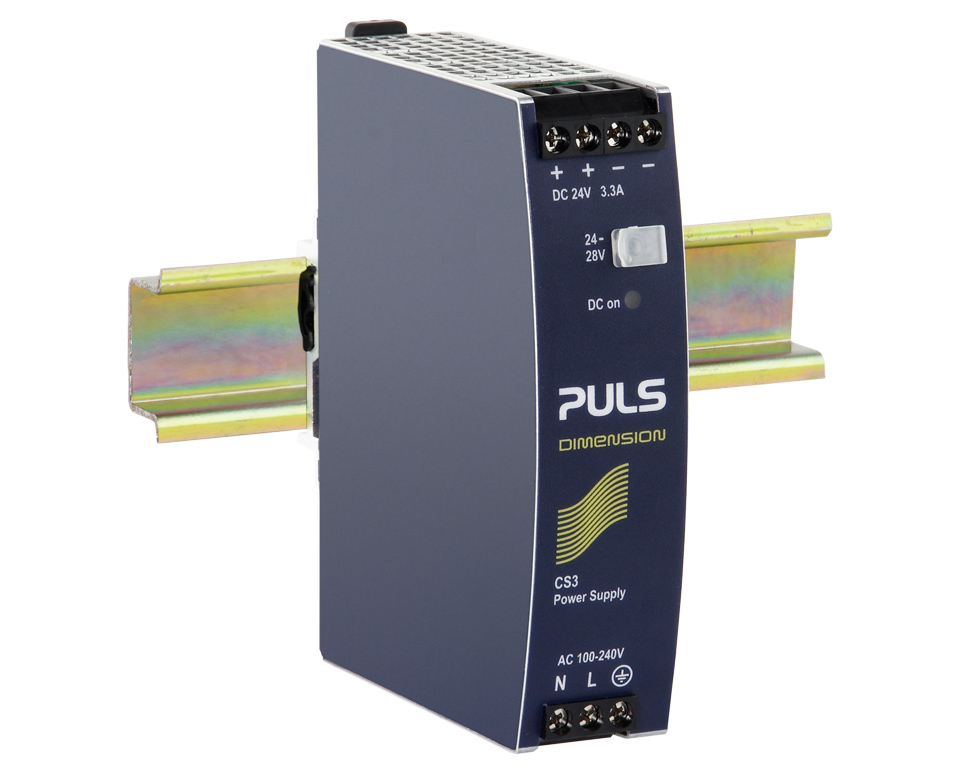

CS3.241

DIN rail power supplies for 1-phase system
24 V, 3.3 A
Datasheet
DC output 24 - 28 Vdc
3.3 - 2.7 A
80 W
Input AC 100 - 240 V (± 10 %)
DC 110 V - 300 V (-20 %/+25 %)
Dimensions (WxHxD) 32 x 124 x 102 mm
Weight 430 g
Compare

Input data

AC Input voltage AC 100 - 240 V (± 10 %)
DC Input voltage DC 110 V - 300 V (-20 %/+25 %)
Power factor 0.56
Input inrush current limitation NTC
Input inrush current 23 A / 45 A
External input fuse recommendation B-10 A / C-6 A

Output data

Nominal voltage 24 Vdc
Adjustment range 24 - 28 V
Output current range 3.3 - 2.7 A
Output current 2.7 A at 28 V
3.3 A at 24 V
Output power 80 W
Derating 1.8 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 32 mm x 124 mm x 102 mm
Weight per unit (excl. packaging) 430 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 89.8 %
Power losses, typ. 9.1 W
MTBF SN 29500 @ 40 °C (h) 2243000 h
