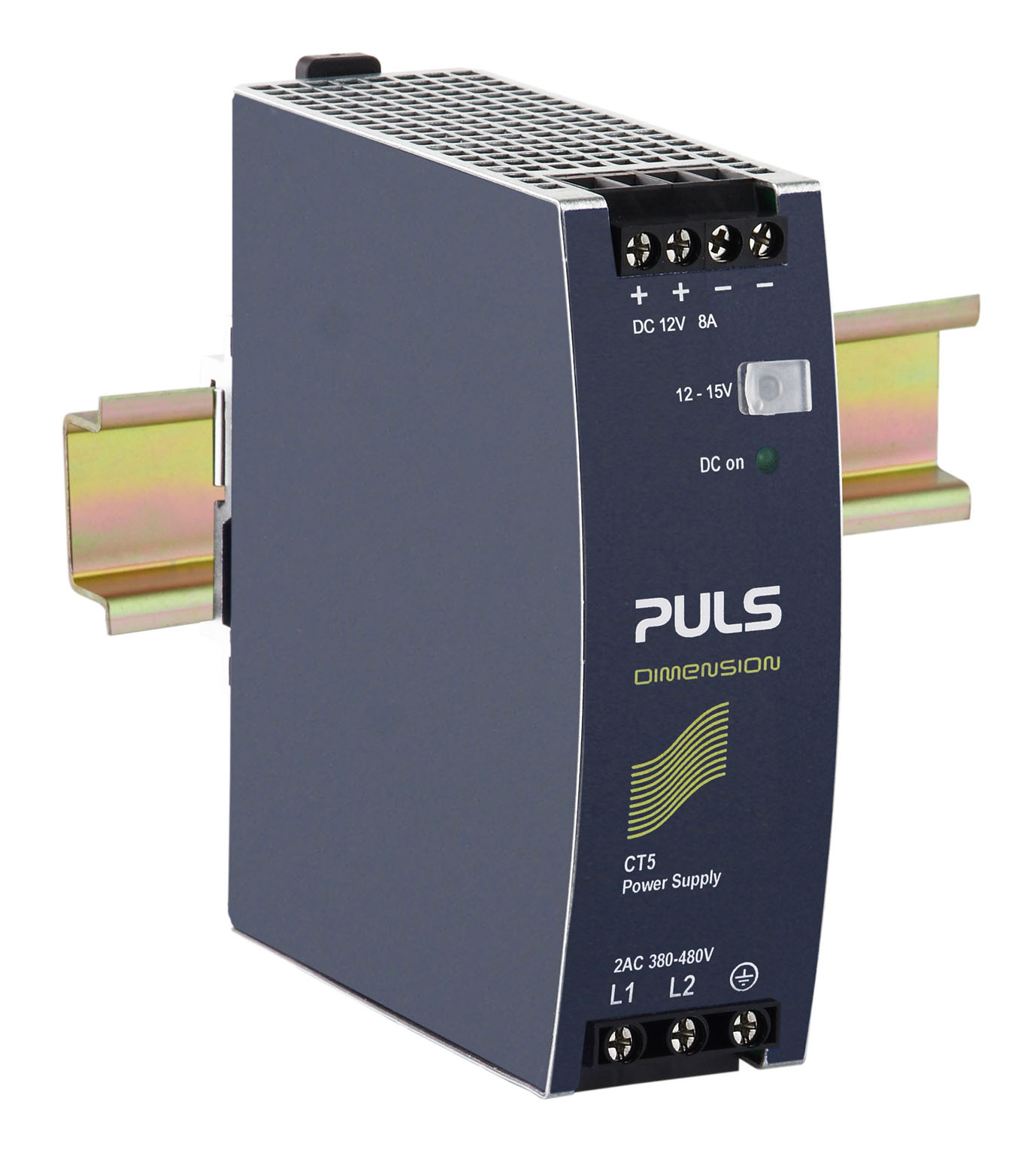

CT5.121
DIN rail power supplies for 3-phase system
12V, 8A
Datasheet
12V, 8A
| DC output | 12 - 15Vdc |
|---|---|
| 8 - 6.4A | |
| 96W | |
| Input | AC 380 - 480V (-15%/+20%) |
| Dimensions (WxHxD) | 40 x 124 x 117mm |
| Weight | 500g |
Input data
| AC Input voltage | AC 380 - 480V (-15%/+20%) |
|---|---|
| Harmonic correction | PFC |
| Power factor | 0.44 |
| Input inrush current limitation | active |
| Input inrush current | 4A / 4A |
| External input fuse recommendation | B-6A / C-3A |
Output data
| Nominal voltage | 12Vdc |
|---|---|
| Adjustment range | 12 - 15V |
| Output current range | 8 - 6.4A |
| Output current | 6.4A at 15V |
| 8A at 12V | |
| Output power | 96W |
| Derating | 2.5W/°C for >+60°C |
| Ripple and noise voltage max. | 100mVpp |
Overview
| Dimensions (WxHxD) | 40mm x 124mm x 117mm |
|---|---|
| Weight per unit (excl. packaging) | 500g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Screw terminals |
| Efficiency, typ. | 85.4% |
| Power losses, typ. | 16.4W |
| MTBF SN 29500 @ 40°C (h) | 983000h |
