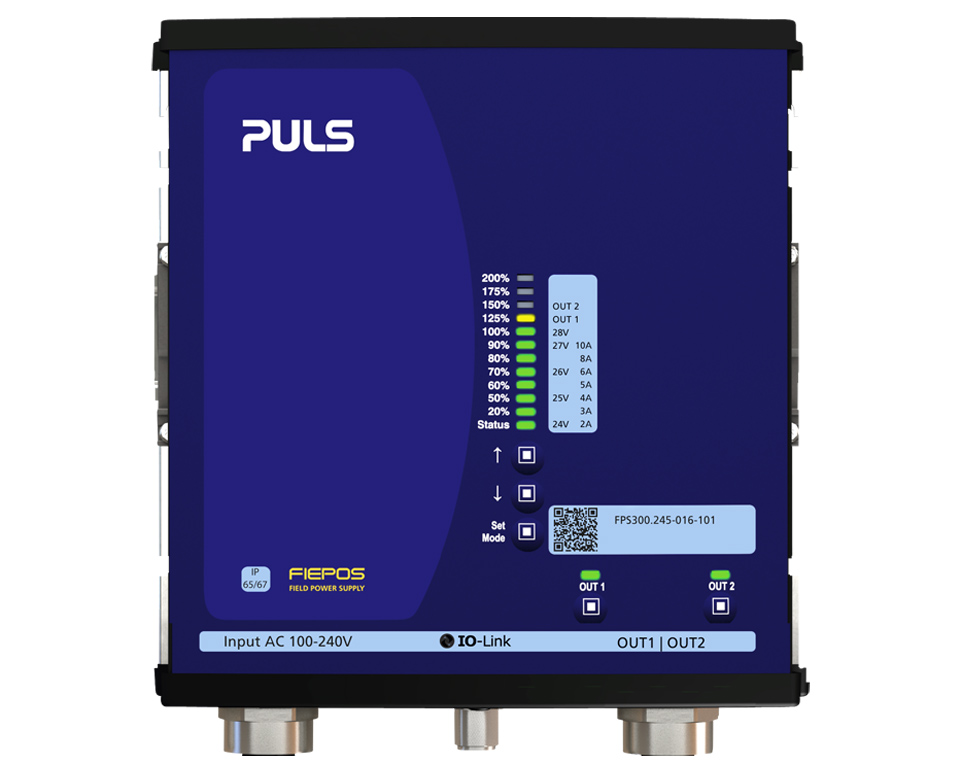

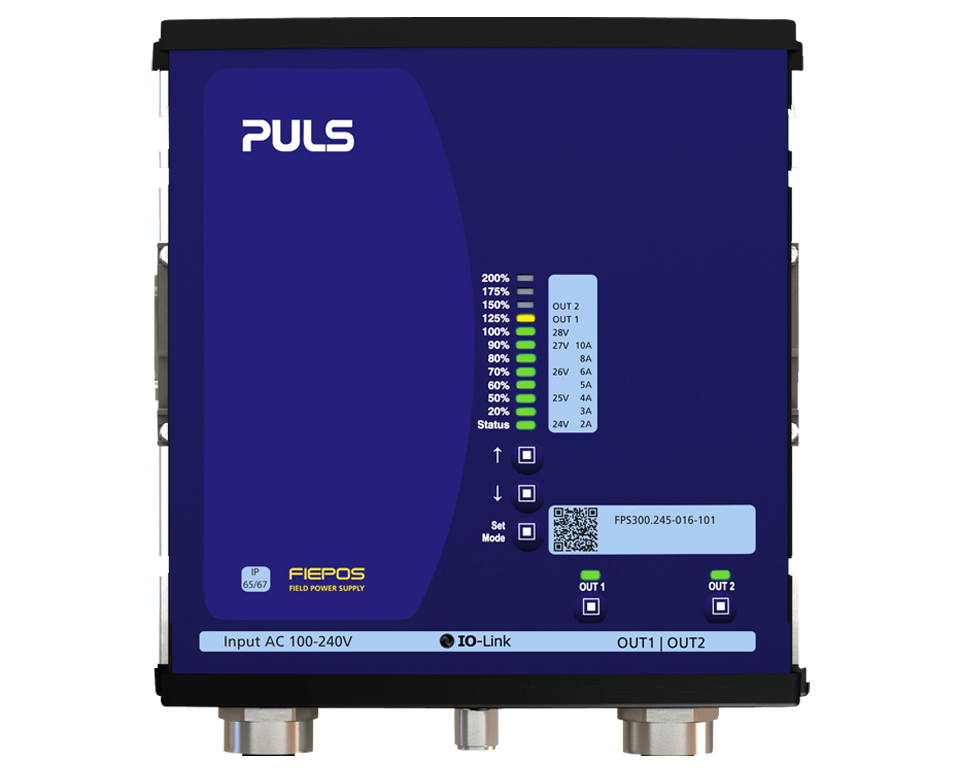

FPS300.245-016-101
1-phase IP54, IP65 and IP67 power supply
24 V, 15 A IO-Link | Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
Datasheet
24 V, 15 A IO-Link | Input: 7/8" - 3pin | Output: 1x 7/8" - 5pin
| DC output | 24 - 28 Vdc |
|---|---|
| 15 - 12.9 A | |
| 360 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (± 20 %) | |
| Dimensions (WxHxD) | 181 x 183 x 59 mm |
| Weight | 1200 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (± 20 %) |
| Power factor | 0.97 |
| Input inrush current limitation | NTC |
| Input inrush current | 2.6 A / 6 A |
| External input fuse recommendation | B-6 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 15 - 12.9 A |
| Output current | 12.9 A at 28 V |
| 15 A at 24 V | |
| Output power | 360 W |
| Power reserves | 600 W (up to 5s) |
| Derating | 6 W/°C for +45 to +55 °C |
| 10 W/°C for +55 to +70 °C | |
| 20 W/1000 m for altitudes >2000 m | |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 181 mm x 183 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 1200 g |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Input: 7/8" 3pin | Output: 7/8" 5pin |
| Efficiency, typ. | 95.7 % |
| Power losses, typ. | 13.5 W |
| MTBF SN 29500 @ 40 °C (h) | 384000 h |
