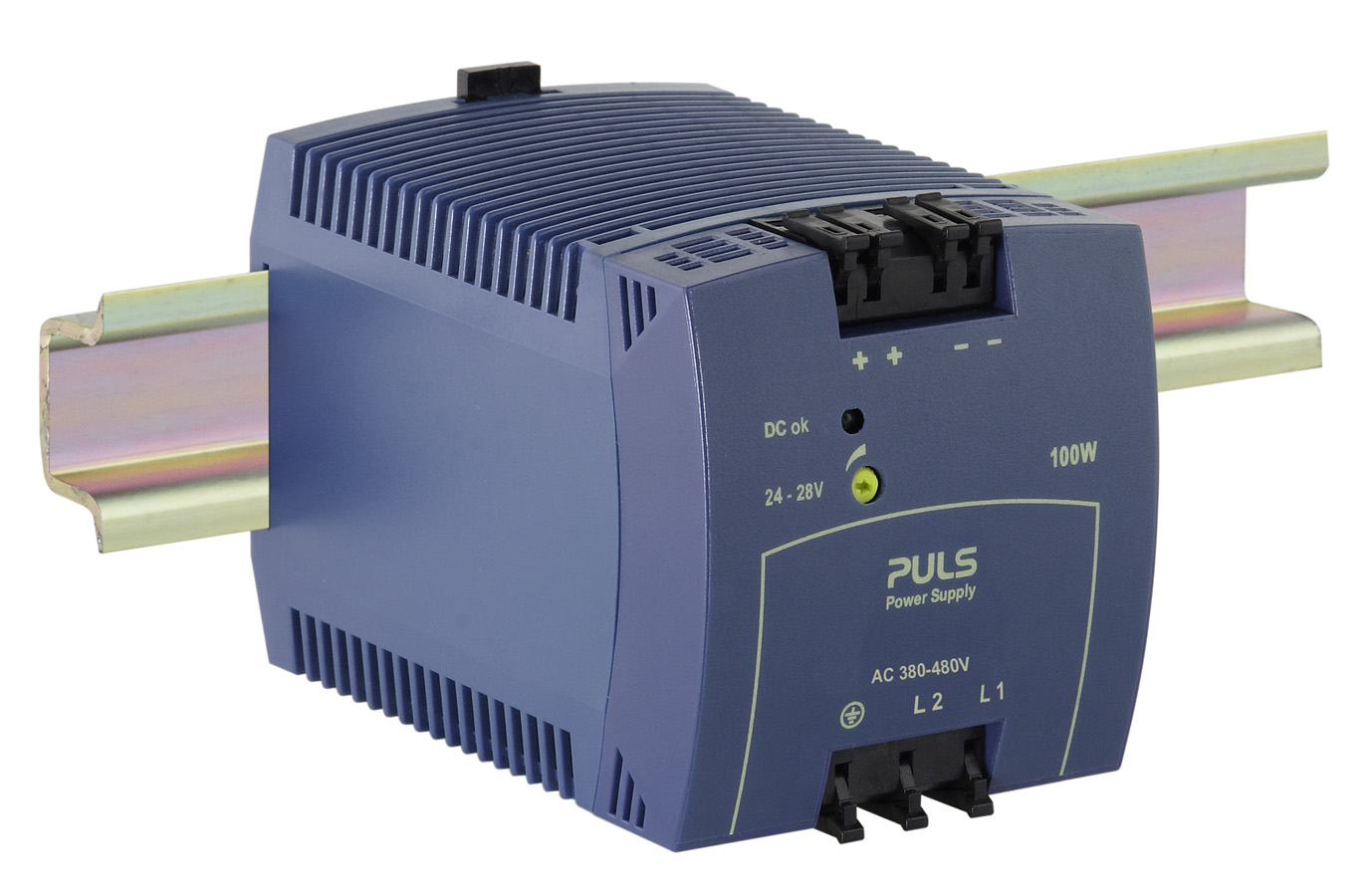

ML100.200
DIN rail power supplies for 3-phase system
24 V, 4.2 A
Datasheet
24 V, 4.2 A
| DC output | 24 - 28 Vdc |
|---|---|
| 4.2 - 3.6 A | |
| 100 W | |
| Input | AC 380 - 480 V (± 15 %) |
| Dimensions (WxHxD) | 73 x 75 x 103 mm |
| Weight | 360 g |
Input data
| AC Input voltage | AC 380 - 480 V (± 15 %) |
|---|---|
| Power factor | 0.6 |
| Input inrush current limitation | NTC |
| Input inrush current | 30 A / 36 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 4.2 - 3.6 A |
| Output current | 3.6 A at 28 V |
| 4.2 A at 24 V | |
| Output power | 100 W |
| Derating | 2.5 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 73 mm x 75 mm x 103 mm |
|---|---|
| Weight per unit (excl. packaging) | 360 g |
| Mounting method | DIN rail |
| Connection method | Spring clamps |
| Efficiency, typ. | 89.5 % |
| Power losses, typ. | 11.7 W |
| MTBF SN 29500 @ 40 °C (h) | 1594000 h |
