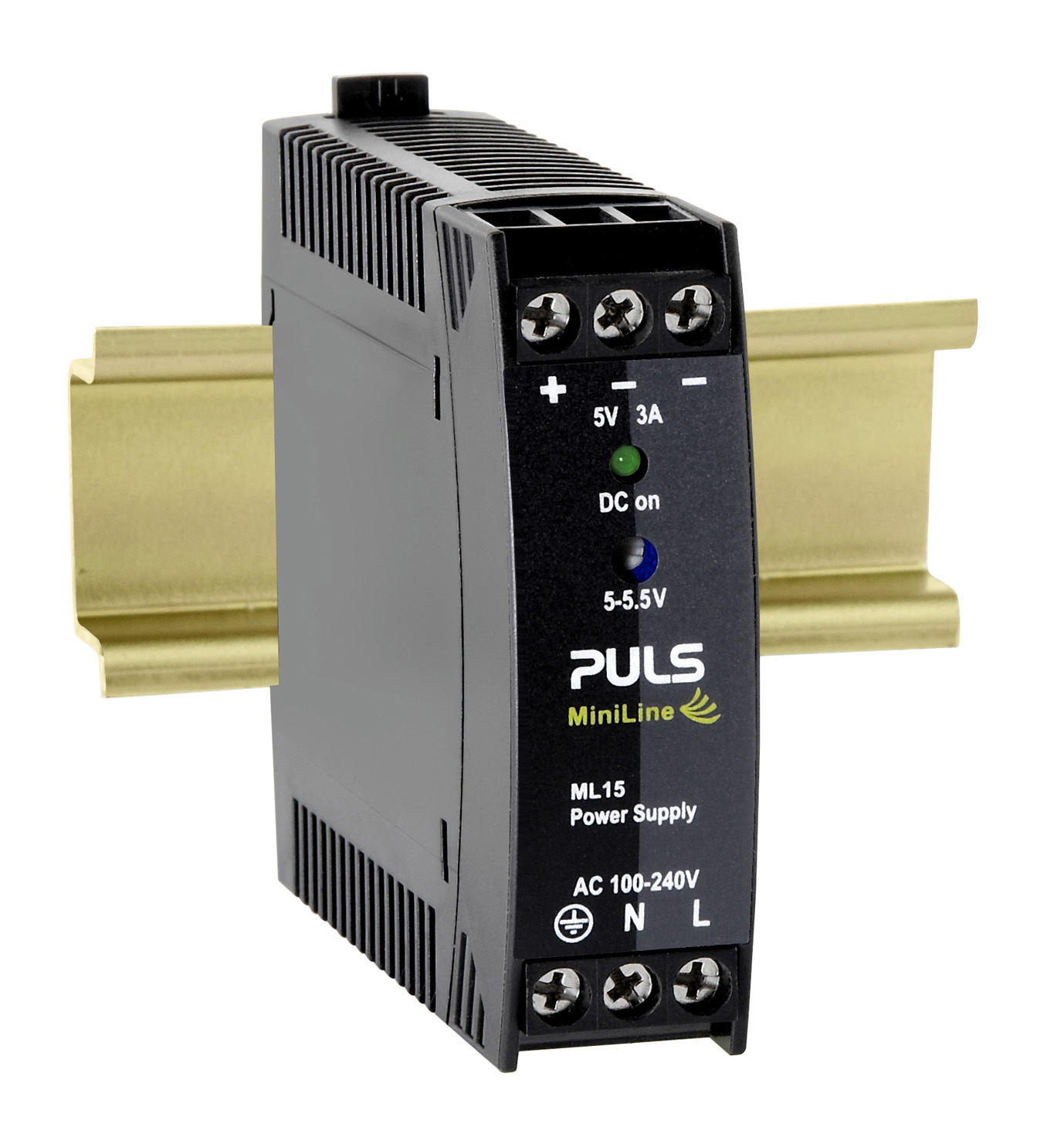

ML15.051

DIN rail power supplies for 1-phase system
5 V, 3 A
Datasheet
DC output 5 - 5.5 Vdc
3 - 2.7 A
15 W
Input AC 100 - 240 V (-15 %/+10 %)
DC 110 V - 300 V (-20 %/+25 %)
Dimensions (WxHxD) 23 x 75 x 91 mm
Weight 130 g
Compare

Input data

AC Input voltage AC 100 - 240 V (-15 %/+10 %)
DC Input voltage DC 110 V - 300 V (-20 %/+25 %)
Power factor 0.44
Input inrush current limitation NTC
Input inrush current 16 A / 31 A
External input fuse recommendation B-6 A / C-3 A

Output data

Nominal voltage 5 Vdc
Adjustment range 5 - 5.5 V
Output current range 3 - 2.7 A
Output current 2.7 A at 5.5 V
3 A at 5 V
Output power 15 W
Derating 0.4 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 23 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) 130 g
Mounting method DIN rail
Connection method Screw terminals
Efficiency, typ. 77.2 %
Power losses, typ. 4,5 W
MTBF SN 29500 @ 40 °C (h) 2686000 h
