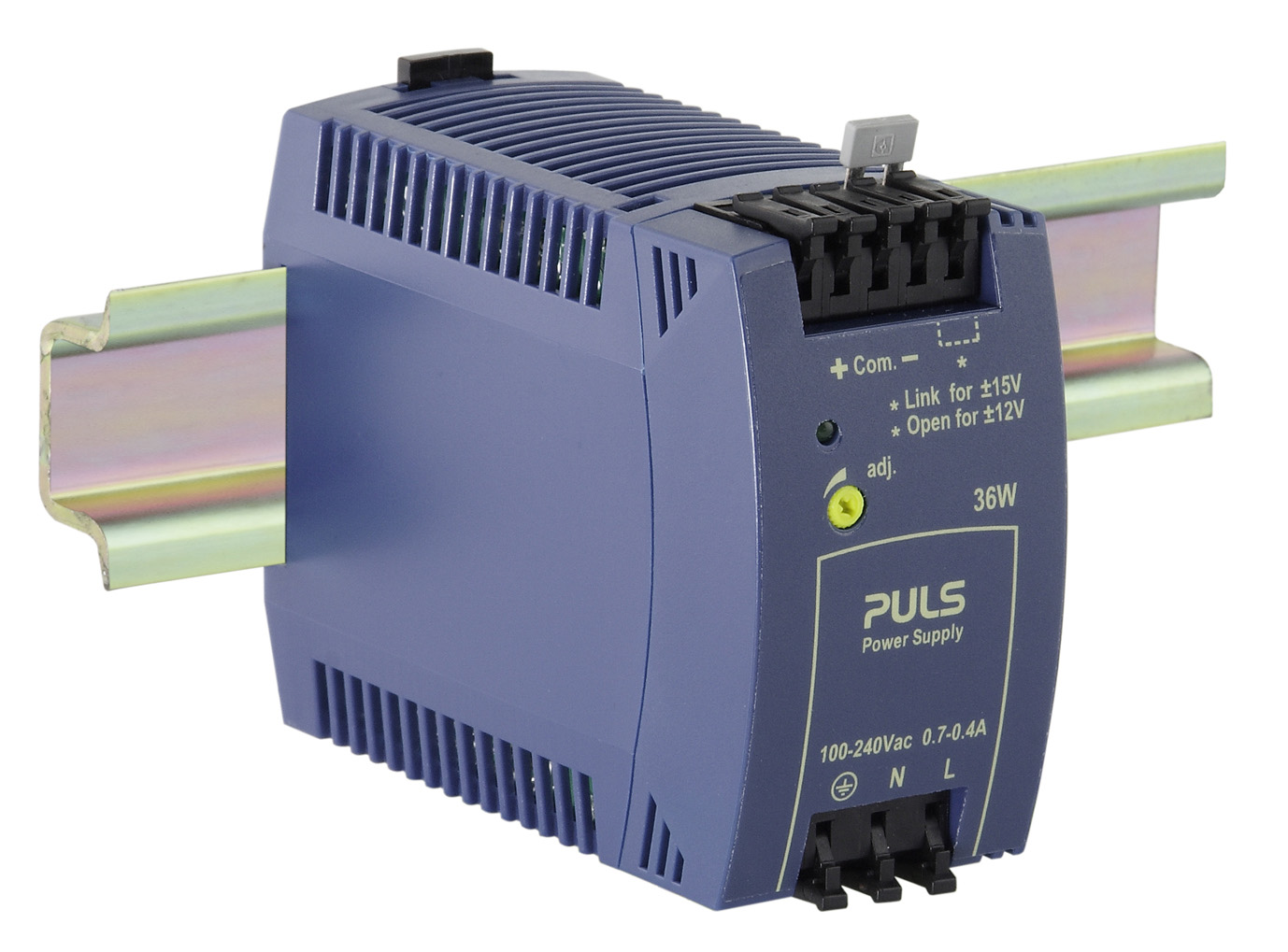

ML30.106

DIN rail power supplies for 1-phase system
12 V, 2.5 A
dual-output voltage
Datasheet
DC output 12 - 15 Vdc
2.5 - 2.5 A
36 W
Input AC 100 - 240 V (-15 %/+10 %)
DC 110 V - 300 V (-20 %/+25 %)
Dimensions (WxHxD) 45 x 75 x 91 mm
Weight 240 g
Compare

Input data

AC Input voltage AC 100 - 240 V (-15 %/+10 %)
DC Input voltage DC 110 V - 300 V (-20 %/+25 %)
Power factor 0.53
Input inrush current limitation NTC
Input inrush current 17 A / 35 A
External input fuse recommendation B-10 A / C-6 A

Output data

Nominal voltage 12 Vdc
Adjustment range 12 - 15 V
Output current range 2.5 - 2.5 A
Output current 2.5 A at 15 V
2.5 A at 12 V
Output power 36 W
Derating 1 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 45 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) 240 g
Mounting method DIN rail
Connection method Spring clamps
Efficiency, typ. 86 %
Power losses, typ. 5.9 W
MTBF SN 29500 @ 40 °C (h) 600000 h
