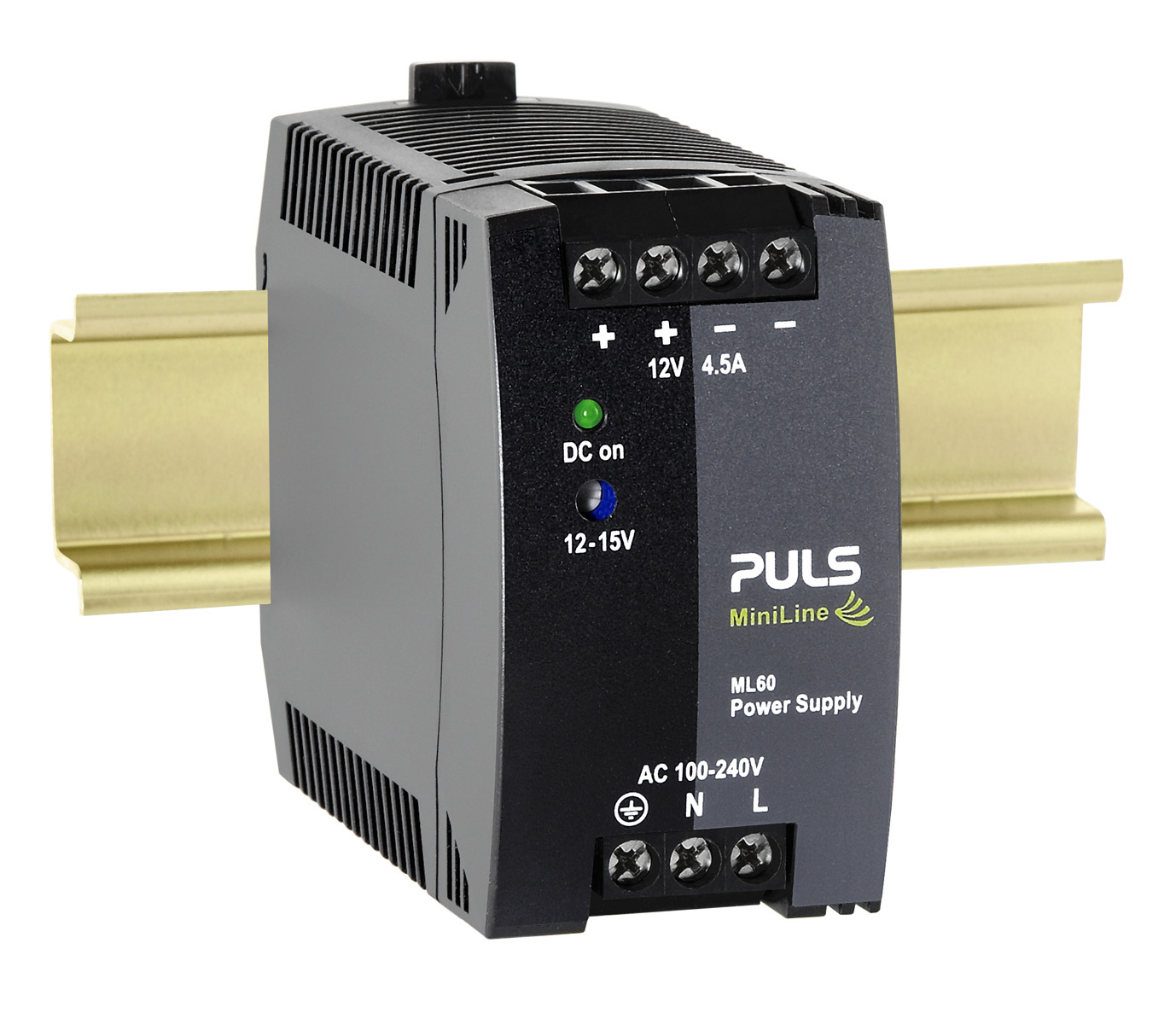

ML60.121

DIN rail power supplies for 1-phase system
12 V, 4.5 A
Datasheet
DC output 12 - 15 Vdc
4.5 - 3.6 A
54 W
Input AC 100 - 240 V (-15 %/+10 %)
DC 110 V - 300 V (-20 %/+25 %)
Dimensions (WxHxD) 45 x 75 x 91 mm
Weight 250 g
Compare

Input data

AC Input voltage AC 100 - 240 V (-15 %/+10 %)
DC Input voltage DC 110 V - 300 V (-20 %/+25 %)
Power factor 0.5
Input inrush current limitation NTC
Input inrush current 16 A / 32 A
External input fuse recommendation B-10 A / C-6 A

Output data

Nominal voltage 12 Vdc
Adjustment range 12 - 15 V
Output current range 4.5 - 3.6 A
Output current 3.6 A at 15 V
4.5 A at 12 V
Output power 54 W
Derating 1.4 W/°C for >+60 °C
Ripple and noise voltage max. 50 mVpp

Overview

Dimensions (WxHxD) 45 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) 250 g
Mounting method DIN rail
Connection method Screw terminals
Efficiency, typ. 87.2 %
Power losses, typ. 7.9 W
MTBF SN 29500 @ 40 °C (h) 1690000 h
