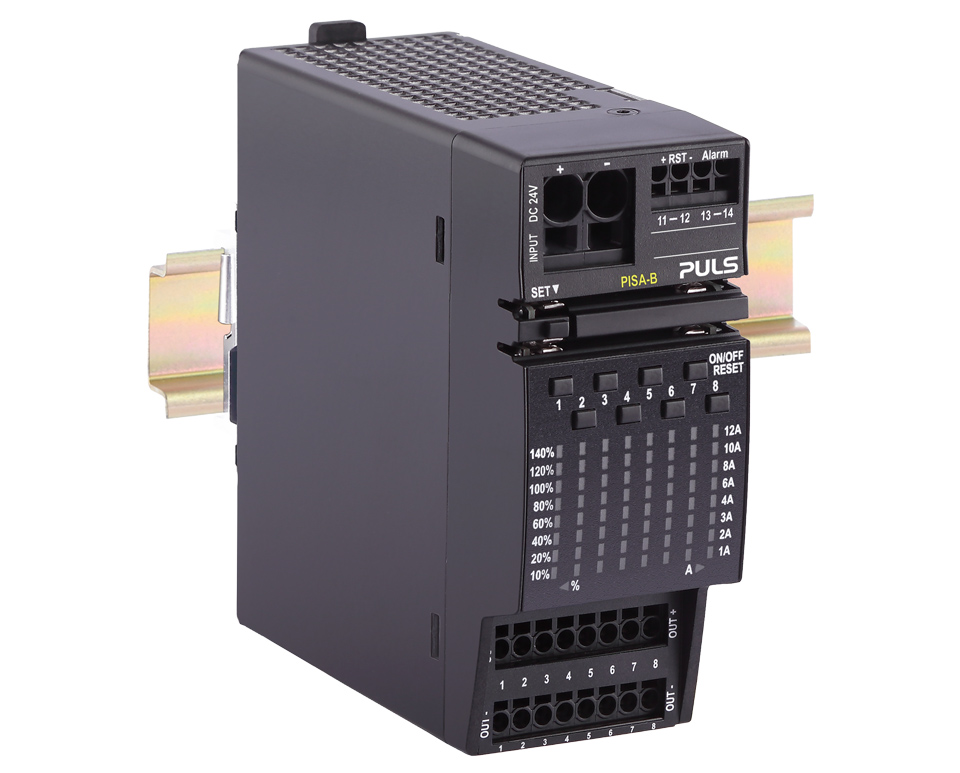

24V, 40A 8 output channels: 2x 1-12A, 6x 1-10A; Digital coded alarm signal
|DC output||DC 24V|
|Input||DC 19.2V - 30V|
|Dimensions (WxHxD)||52 x 124 x 130mm|
|DC Input voltage||DC 19.2V - 30V|
|DC Input current at no load, typ.||35mA|
|Input voltage required to switch on the outputs, typ.||19Vdc|
|Output current (sum of all outputs)||40A|
|Turn-on delay of outputs||750ms|
|Dimensions (WxHxD)||52mm x 124mm x 130mm|
|Weight per unit (excl. packaging)||370g|
|Mounting method||DIN rail|
|Operating temp. range||-25°C to 70°C|
|Connection method||Push-in clamps|
|Power losses, typ.||10.8W|
|No-load losses, typ.||1W|
