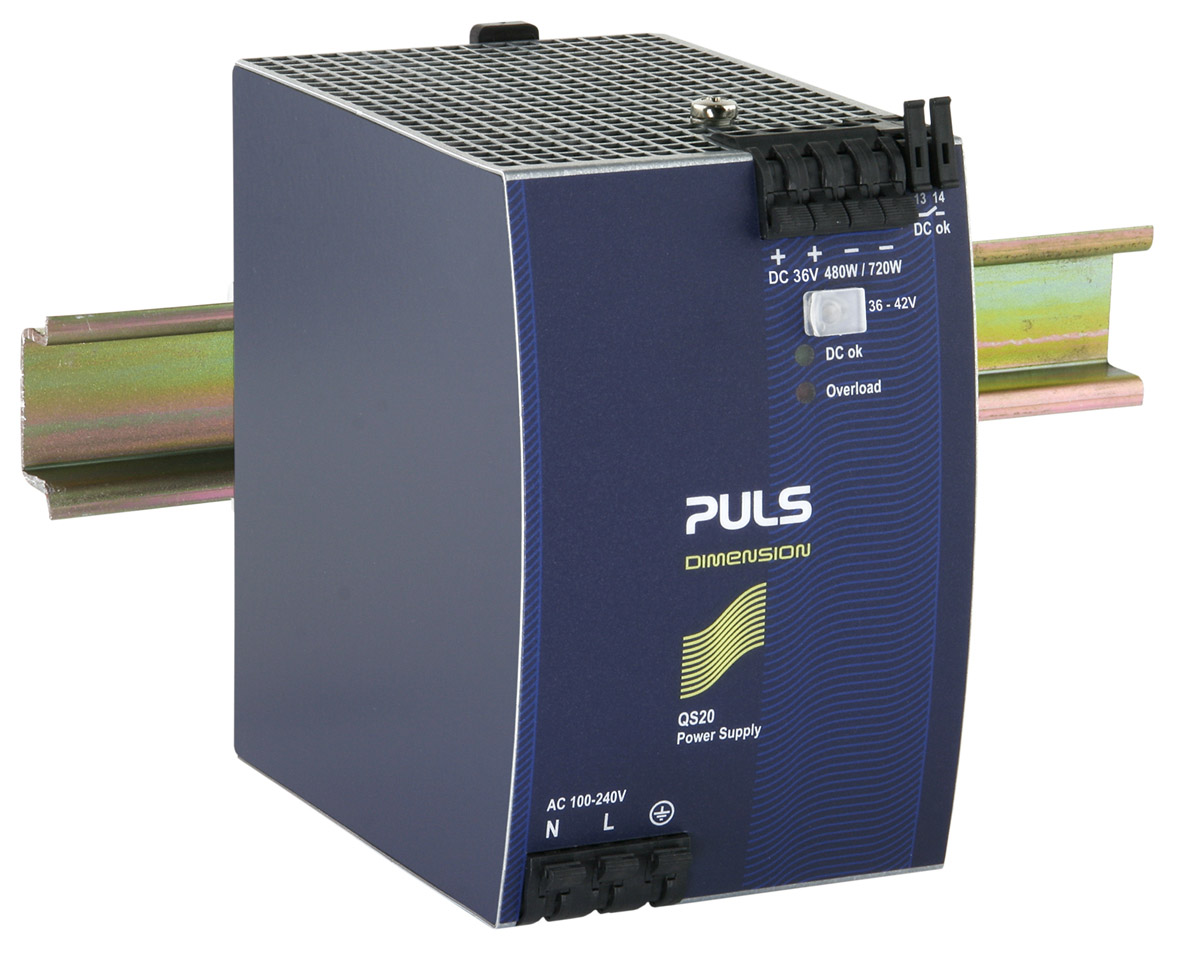

QS20.361

DIN rail power supplies for 1-phase system
36 V, 13.3 A
Datasheet
DC output 36 - 42 Vdc
13.3 - 11.4 A
480 W
Input AC 100 - 240 V (± 15 %)
DC 110 V - 150 V (-20 %/+25 %)
Dimensions (WxHxD) 82 x 124 x 127 mm
Weight 1200 g
Compare

Input data

AC Input voltage AC 100 - 240 V (± 15 %)
DC Input voltage DC 110 V - 150 V (-20 %/+25 %)
Harmonic correction active
Power factor 0.9
Input inrush current limitation active
Input inrush current 9 A / 7 A
External input fuse recommendation B-10 A / C-10 A

Output data

Nominal voltage 36 Vdc
Adjustment range 36 - 42 V
Output current range 13.3 - 11.4 A
Output current 11.4 A at 42 V
13.3 A at 36 V
Output power 480 W
Power reserves 50 % BonusPower
Derating 12 W/°C for >+60 °C
Ripple and noise voltage max. 100 mVpp

Overview

Dimensions (WxHxD) 82 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 1200 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Spring clamps
Efficiency, typ. 94 %
Power losses, typ. 30.6 W
MTBF SN 29500 @ 40 °C (h) 469000 h
DC-OK signal yes
