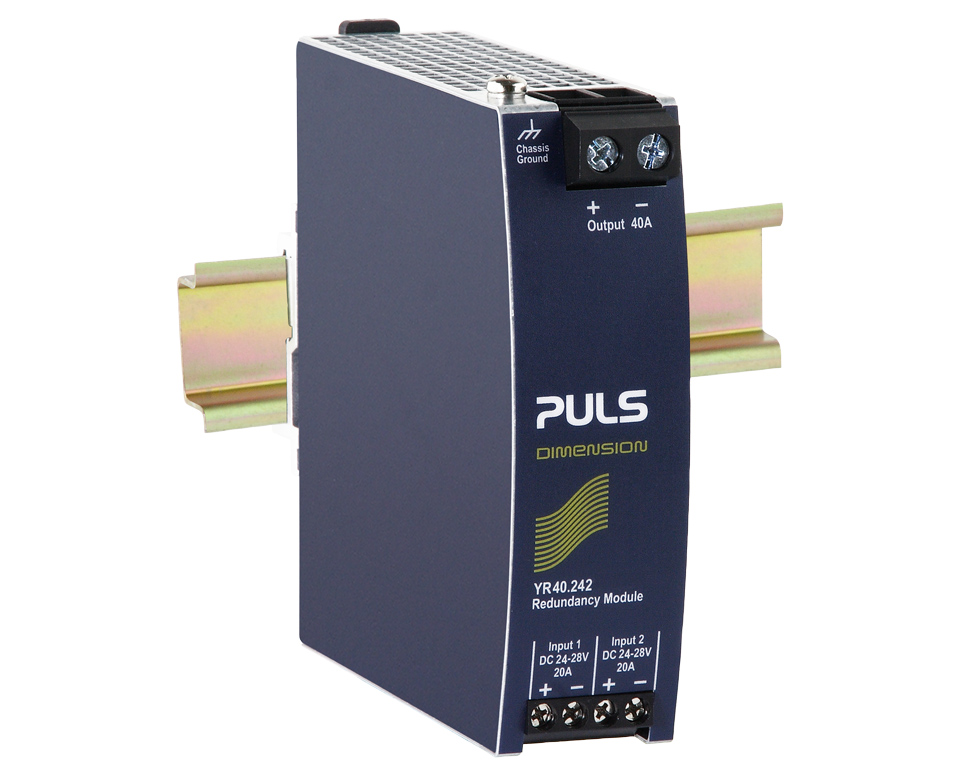

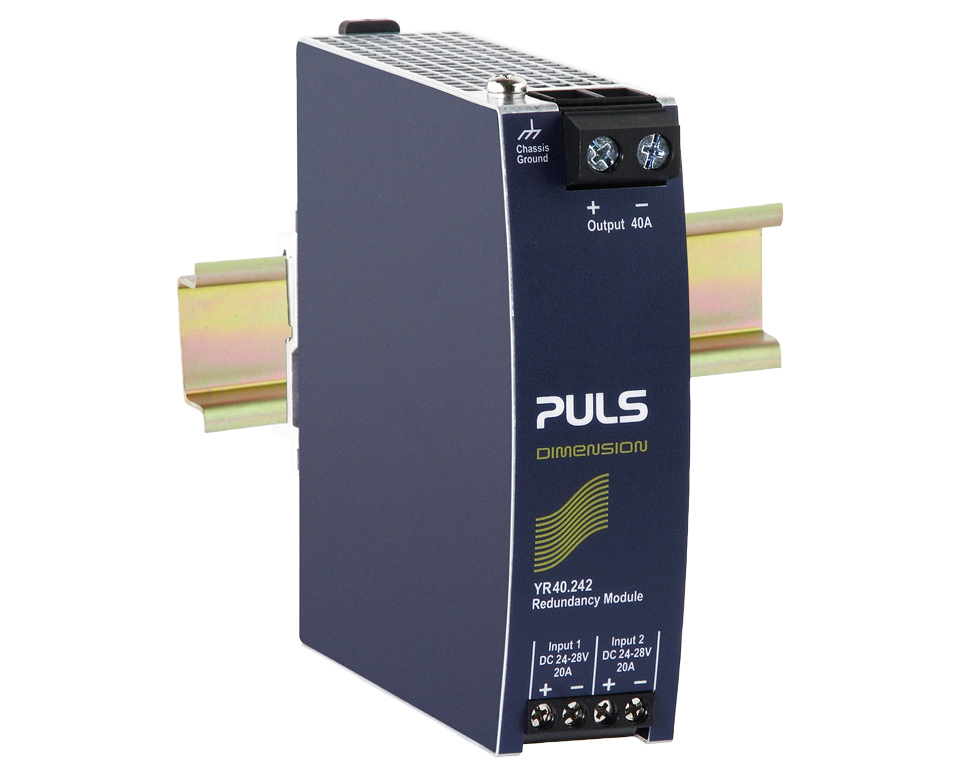

YR40.242

MOSFET redundancy module
24 V, 40 A
2x 20A input
Datasheet
DC output 12 - 28 Vdc
40 A
Input DC 12 V - 28 V
Dimensions (WxHxD) 36 x 124 x 127 mm
Weight 280 g
Compare

Input data

Input current 2 x 20 A
Nominal current per input 20 A
DC Input voltage DC 12 V - 28 V
Voltage drop 72 mV

Output data

Output current range 40 A
Output current 40 A
Output current short circuit max. 26 A
Derating 1 W/°C for >+60 °C

Overview

Dimensions (WxHxD) 36 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 280 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Screw terminals
Power losses, typ. 1.7 W
No-load losses, typ. 0.2 W
MTBF SN 29500 @ 40 °C (h) 4500000 h
