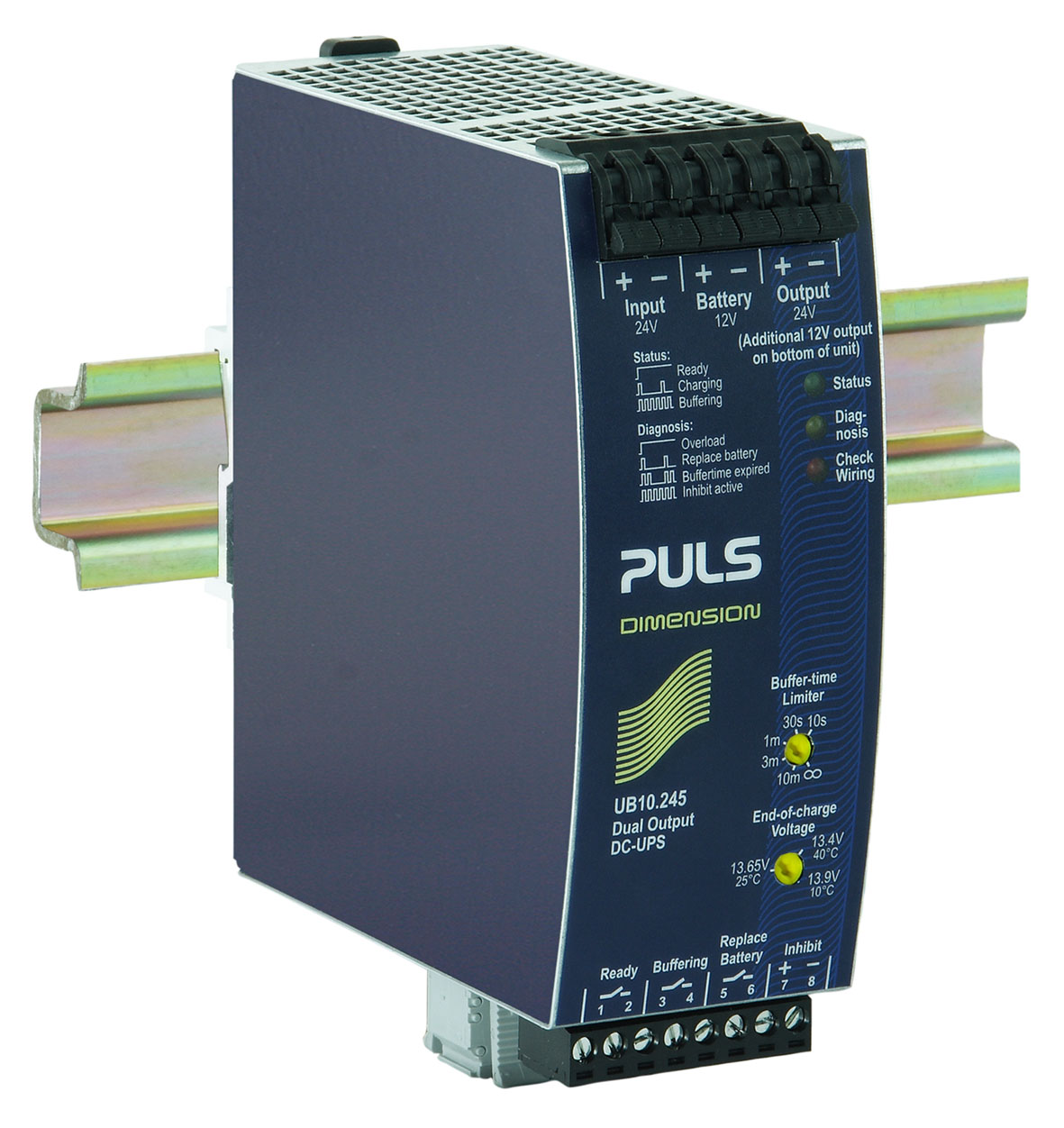

UB10.245
DC-UPS control unit
24 V, 10 A additional 12V output
Datasheet
24 V, 10 A additional 12V output
| DC output | DC 24 V |
|---|---|
| 10 A | |
| Input | DC 24 V |
| Dimensions (WxHxD) | 49 x 124 x 117 mm |
| Weight | 350 g |
Input data
| DC Input voltage | DC 24 V |
|---|---|
| Int. current consumption (incl. charging current) | 1.3 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| 22.5 Vds | |
| Output current | 15 A |
| 10 A | |
| Derating | 0.25 W/°C for >+60 °C |
Buffering
| Storage element | External lead acid battery |
|---|---|
| Allowed battery size | 12 V, 3.9 to 40 Ah |
| Temperature tracking of the end-of-charge voltage | manual-select |
Overview
| Dimensions (WxHxD) | 49 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 350 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| MTBF SN 29500 @ 40 °C (h) | 788000 h |
