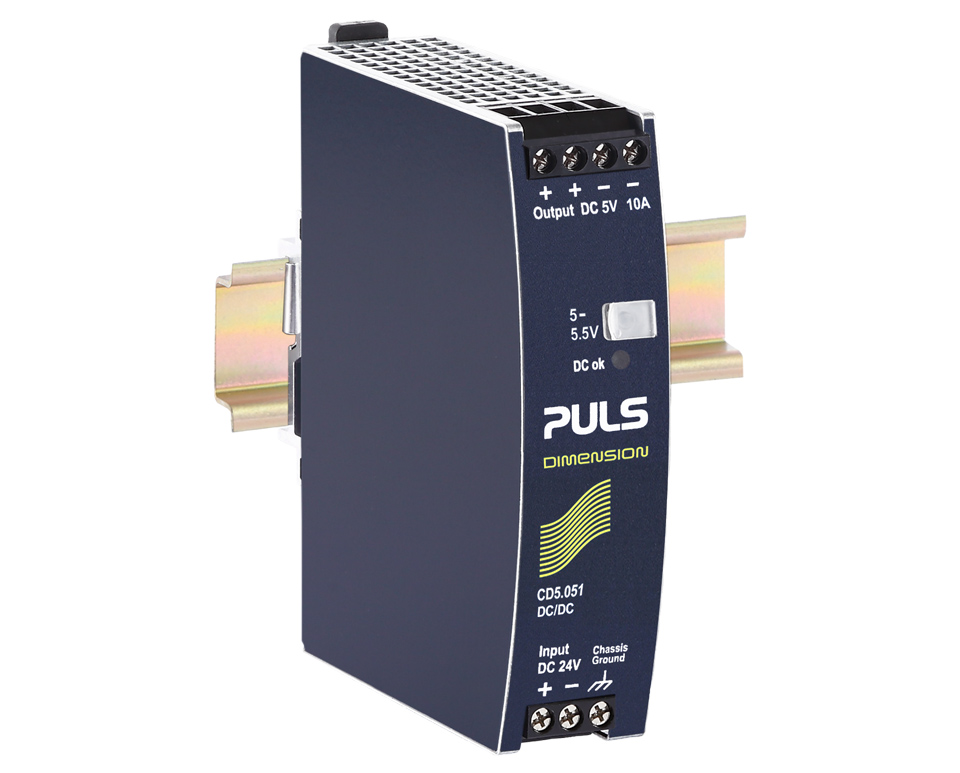

CD5.051
DC/DC converter
5 V, 10 A
Datasheet
5 V, 10 A
| DC output | 5 - 5.5 Vdc |
|---|---|
| 10 - 10 A | |
| 50 W | |
| Input | DC 18 V - 32.4 V |
| Dimensions (WxHxD) | 32 x 124 x 102 mm |
| Weight | 425 g |
Input data
| DC Input voltage | DC 18 V - 32.4 V |
|---|
Output data
| Nominal voltage | 5 Vdc |
|---|---|
| Adjustment range | 5 - 5.5 V |
| Output current range | 10 - 10 A |
| Output current | 10 A at 5.5 V |
| 10 A at 5 V | |
| Output power | 50 W |
| Power reserves | 20 % Power Boost |
| Derating | 1.25 W/°C for +60 to +70 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 425 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
| Efficiency, typ. | 81.5 % |
| Power losses, typ. | 11.5 W |
| MTBF SN 29500 @ 40 °C (h) | 1161000 h |
