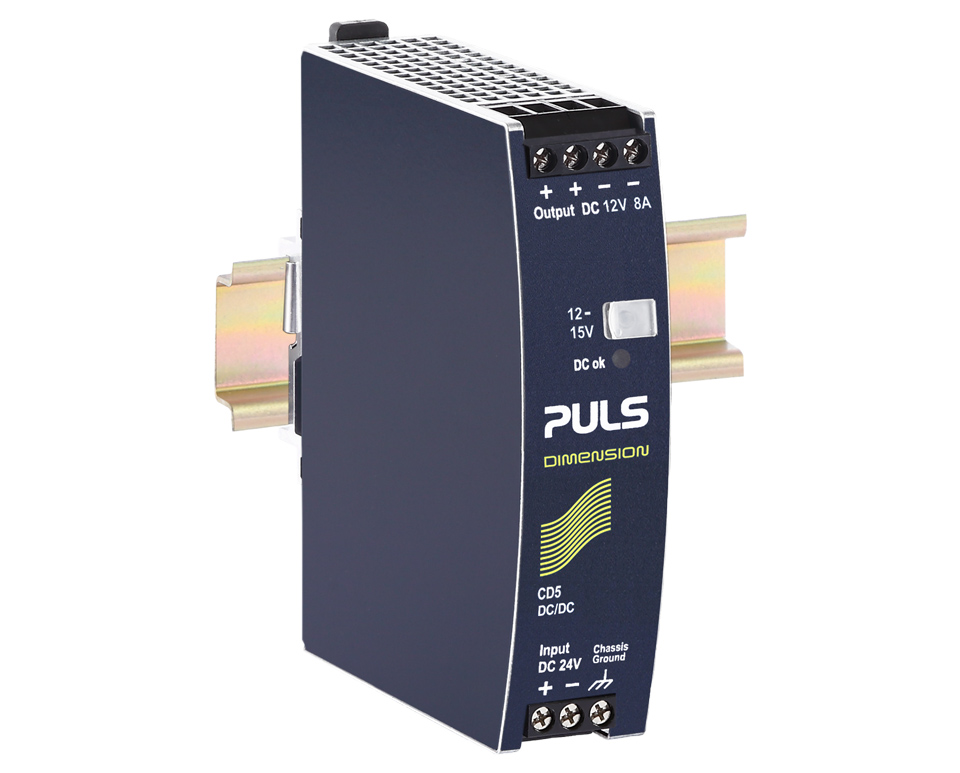

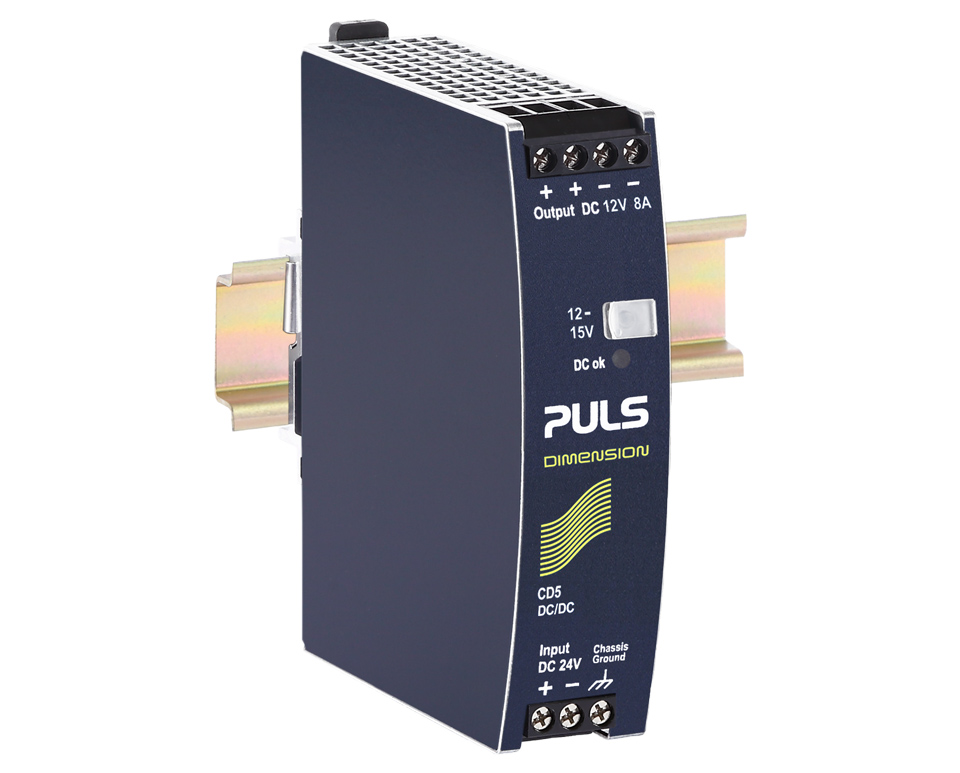

CD5.121
DC/DC converter
12V, 8A
Datasheet
12V, 8A
| DC output | 12 - 15Vdc |
|---|---|
| 8 - 6.4A | |
| 96W | |
| Input | DC 24V (-25%/+35%) |
| Dimensions (WxHxD) | 32 x 124 x 102mm |
| Weight | 425g |
Input data
| DC Input voltage | DC 24V (-25%/+35%) |
|---|
Output data
| Nominal voltage | 12Vdc |
|---|---|
| Adjustment range | 12 - 15V |
| Output current range | 8 - 6.4A |
| Output current | 6.4A at 15V |
| 8A at 12V | |
| Output power | 96W |
| Power reserves | 20% Power Boost |
| Derating | 2.5W/°C for >+60°C |
| Ripple and noise voltage max. | 75mVpp |
Overview
| Dimensions (WxHxD) | 32mm x 124mm x 102mm |
|---|---|
| Weight per unit (excl. packaging) | 425g |
| Mounting method | DIN rail |
| Operating temp. range | -25°C to 70°C |
| Connection method | Screw terminals |
| Efficiency, typ. | 88.2% |
| Power losses, typ. | 12.8W |
| MTBF SN 29500 @ 40°C (h) | 1161000h |
