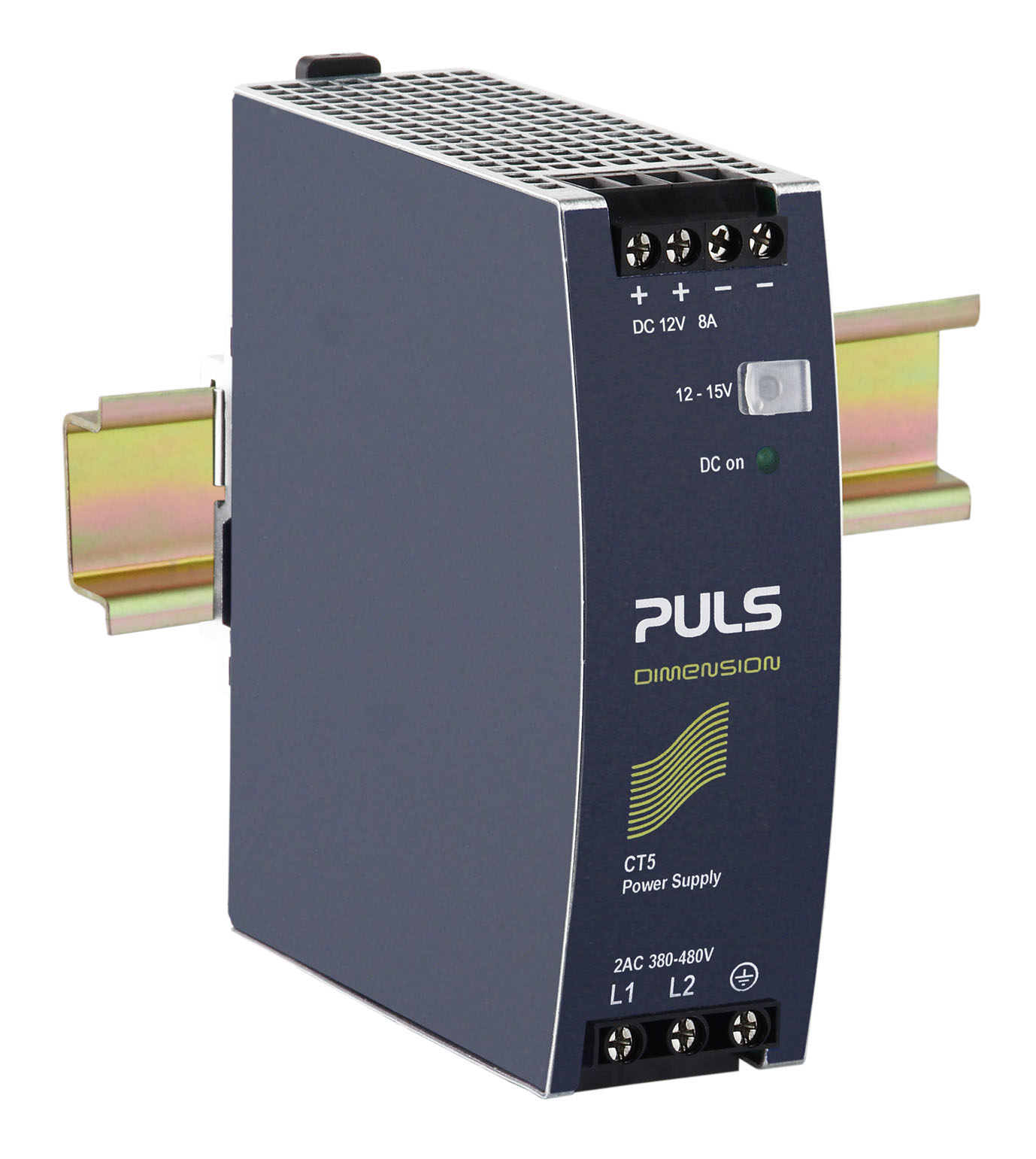

CT5.121

DIN rail power supplies for 3-phase system
12 V, 8 A
Datasheet
DC output 12 - 15 Vdc
8 - 6.4 A
96 W
Input AC 380 - 480 V (-15 %/+20 %)
Dimensions (WxHxD) 40 x 124 x 117 mm
Weight 500 g
Compare

Input data

AC Input voltage AC 380 - 480 V (-15 %/+20 %)
Harmonic correction PFC
Power factor 0.44
Input inrush current limitation active
Input inrush current 4 A / 4 A
External input fuse recommendation B-6 A / C-3 A

Output data

Nominal voltage 12 Vdc
Adjustment range 12 - 15 V
Output current range 8 - 6.4 A
Output current 6.4 A at 15 V
8 A at 12 V
Output power 96 W
Derating 2.5 W/°C for >+60 °C
Ripple and noise voltage max. 100 mVpp

Overview

Dimensions (WxHxD) 40 mm x 124 mm x 117 mm
Weight per unit (excl. packaging) 500 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 85.4 %
Power losses, typ. 16.4 W
MTBF SN 29500 @ 40 °C (h) 983000 h
