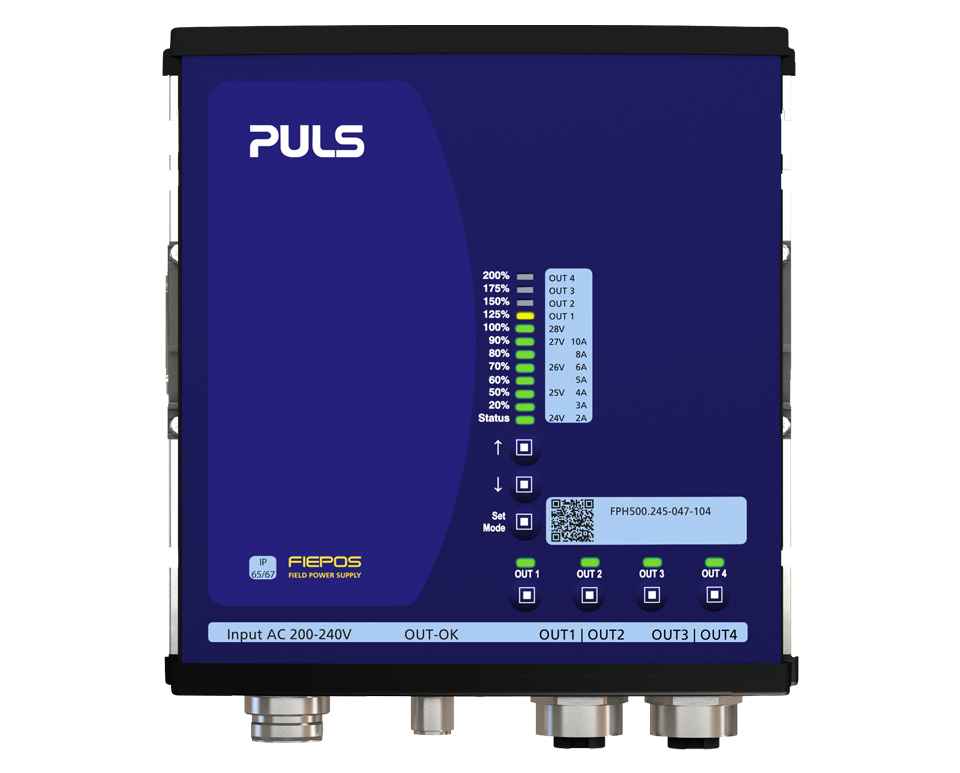

FPH500.245-047-104
24 V, 25 A Input: 7/8" 3pin | Ouput: 2x 7/8” 4pin
DC output | 24 - 28 Vdc |
---|---|
25 - 21.4 A | |
600 W | |
Input | AC 200 - 240 V (-15 %/+10 %) |
DC 200 V - 300 V (± 20 %) | |
Dimensions (WxHxD) | 181 x 183 x 59 mm |
Weight | 1200 g |
Input data
AC Input voltage | AC 200 - 240 V (-15 %/+10 %) |
---|---|
DC Input voltage | DC 200 V - 300 V (± 20 %) |
Power factor | 0.97 |
Input inrush current limitation | active |
Input inrush current | 6 A |
External input fuse recommendation | B-6 A / C-6 A |
Output data
Nominal voltage | 24 Vdc |
---|---|
Adjustment range | 24 - 28 V |
Output current range | 25 - 21.4 A |
Output current | 21.4 A at 28 V |
25 A at 24 V | |
Output power | 600 W |
Power reserves | 1000 W (up to 5s) |
Derating | 10 W/°C for +45 to +70 °C |
20 W/1000 m for altitudes >2000 m | |
Ripple and noise voltage max. | 50 mVpp |
Overview
Dimensions (WxHxD) | 181 mm x 183 mm x 59 mm |
---|---|
Weight per unit (excl. packaging) | 1200 g |
Mounting method | DIN rail |
Operating temp. range | -25 °C to 70 °C |
Connection method | Input: 7/8" 3pin | Output: 7/8" 4pin |
Efficiency, typ. | 94.8 % |
Power losses, typ. | 27.8 W |
MTBF SN 29500 @ 40 °C (h) | 211000 h |
DC-OK signal | yes |
