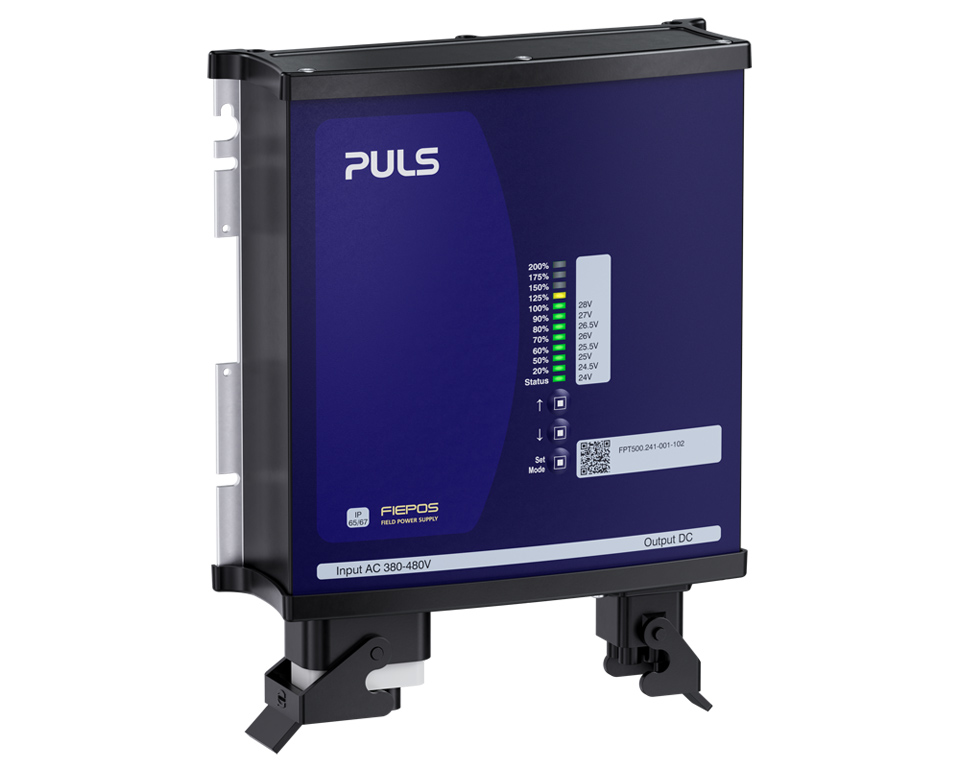

FPT500.241-001-102
3-phase IP54, IP65 and IP67 power supply
24 V, 25 A Input: Han Q4/2 | Output: Han Q4/0
Datasheet
24 V, 25 A Input: Han Q4/2 | Output: Han Q4/0
| DC output | 24 - 28 Vdc |
|---|---|
| 25 - 21.4 A | |
| 600 W | |
| Input | AC 380 - 480 V (± 15 %) |
| Dimensions (WxHxD) | 181 x 183 x 59 mm |
| Weight | 1200 g |
Input data
| AC Input voltage | AC 380 - 480 V (± 15 %) |
|---|---|
| Power factor | 0.95 |
| Input inrush current limitation | active |
| Input inrush current | 1.9 A / 1.8 A |
| External input fuse recommendation | B-6 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 25 - 21.4 A |
| Output current | 21.4 A at 28 V |
| 25 A at 24 V | |
| Output power | 600 W |
| Power reserves | 1000 W (up to 5s) |
| Derating | 10 W/°C for +45 to +70 °C |
| 33 W/1000 m for altitudes >2000 m | |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 181 mm x 183 mm x 59 mm |
|---|---|
| Weight per unit (excl. packaging) | 1200 g |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Input: HanQ4/2 | Output: HanQ4/0 |
| Efficiency, typ. | 95.6 % |
| Power losses, typ. | 23 W |
| MTBF SN 29500 @ 40 °C (h) | 290000 h |
