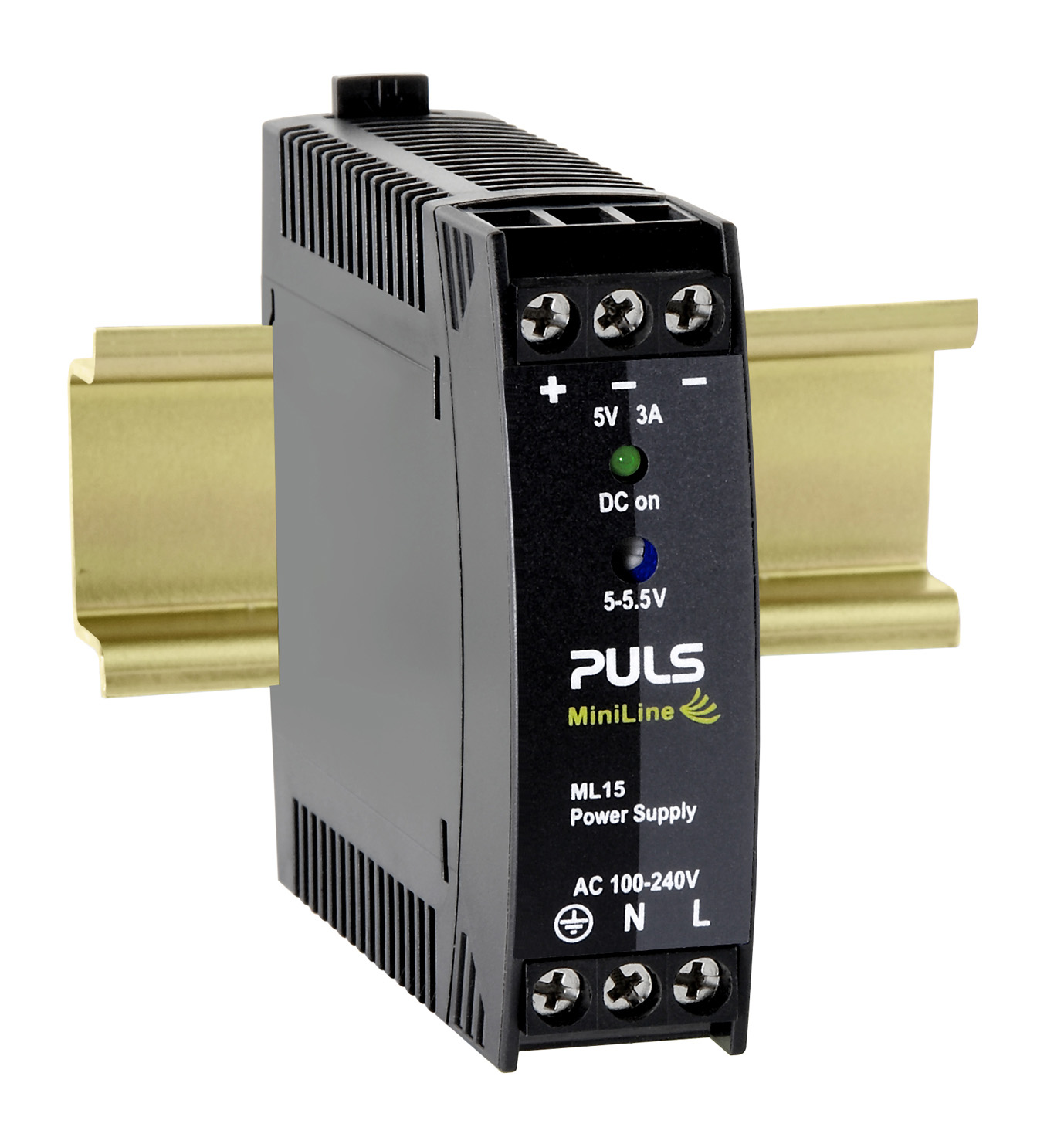

ML15.051
DIN rail power supplies for 1-phase system
5V, 3A
Datasheet
5V, 3A
| DC output | 5 - 5.5Vdc |
|---|---|
| 3 - 2.7A | |
| 15W | |
| Input | AC 100 - 240V (-15%/+10%) |
| DC 110V - 300V (-20%/+25%) | |
| Dimensions (WxHxD) | 23 x 75 x 91mm |
| Weight | 130g |
Input data
| AC Input voltage | AC 100 - 240V (-15%/+10%) |
|---|---|
| DC Input voltage | DC 110V - 300V (-20%/+25%) |
| Power factor | 0.44 |
| Input inrush current limitation | NTC |
| Input inrush current | 16A / 31A |
| External input fuse recommendation | B-6A / C-3A |
Output data
| Nominal voltage | 5Vdc |
|---|---|
| Adjustment range | 5 - 5.5V |
| Output current range | 3 - 2.7A |
| Output current | 2.7A at 5.5V |
| 3A at 5V | |
| Output power | 15W |
| Derating | 0.4W/°C for >+60°C |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 23mm x 75mm x 91mm |
|---|---|
| Weight per unit (excl. packaging) | 130g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 77.2% |
| Power losses, typ. | 4,5W |
| MTBF SN 29500 @ 40°C (h) | 2686000h |
