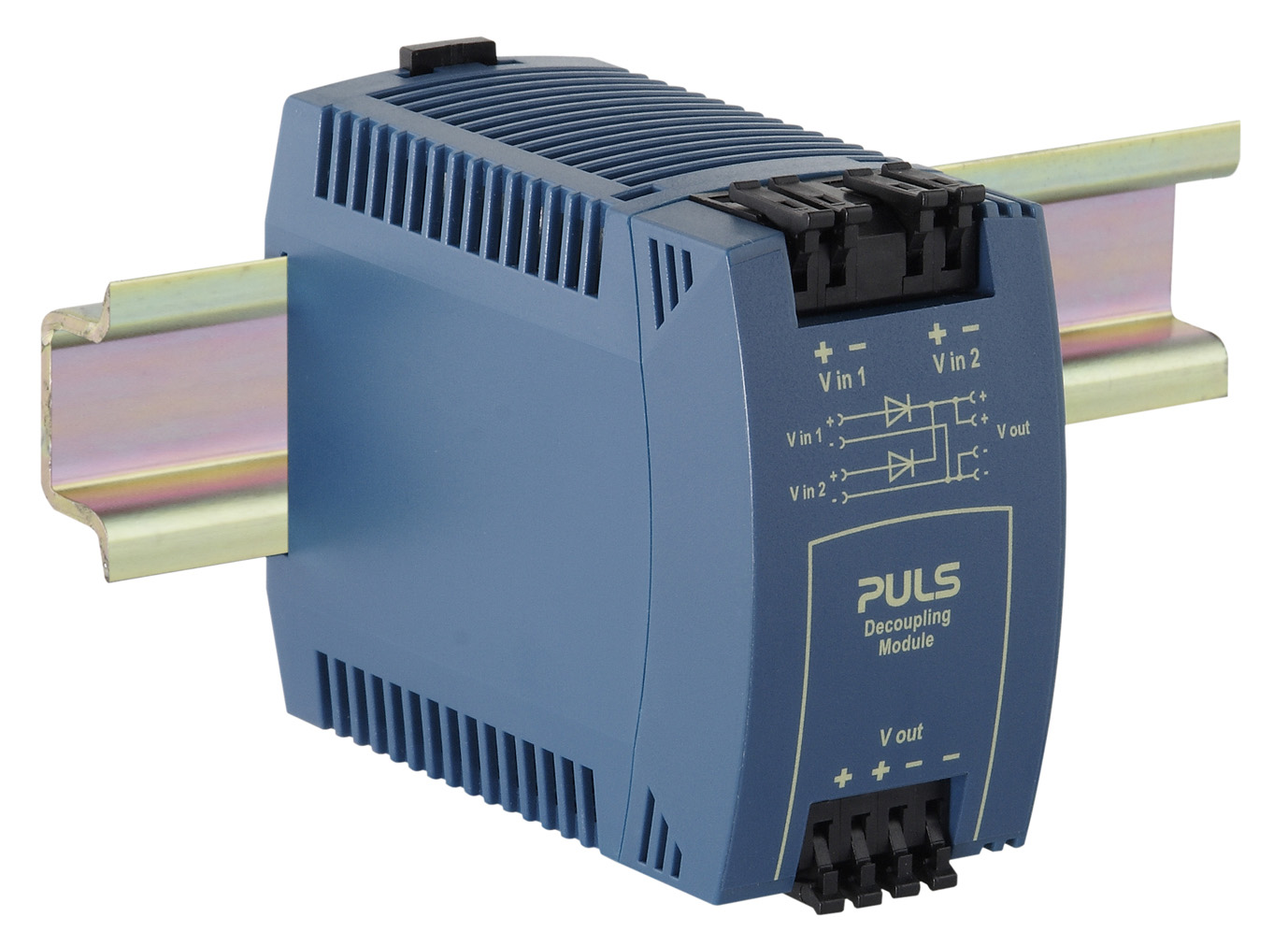

Diode redundancy module
24 V, 10 A
2x 5A input
DC output 12 - 48 Vdc
10 A
Input DC 12 V - 48 V (± 25 %)
Dimensions (WxHxD) 45 x 75 x 91 mm
Weight 140 g

Input data

Input current 2 x 5 A
Nominal current per input 5 A
DC Input voltage DC 12 V - 48 V (± 25 %)
Voltage drop 800 mV

Output data

Output current range 10 A
Output current 10 A
Output current short circuit max. 16 A
Derating 0.25 W/°C for >+60 °C


Dimensions (WxHxD) 45 mm x 75 mm x 91 mm
Weight per unit (excl. packaging) 140 g
Mounting method DIN rail
Operating temp. range -40 °C to 70 °C
Connection method Spring clamps
Power losses, typ. 4.0 W
No-load losses, typ. 0 W
MTBF SN 29500 @ 40 °C (h) 58000000 h
