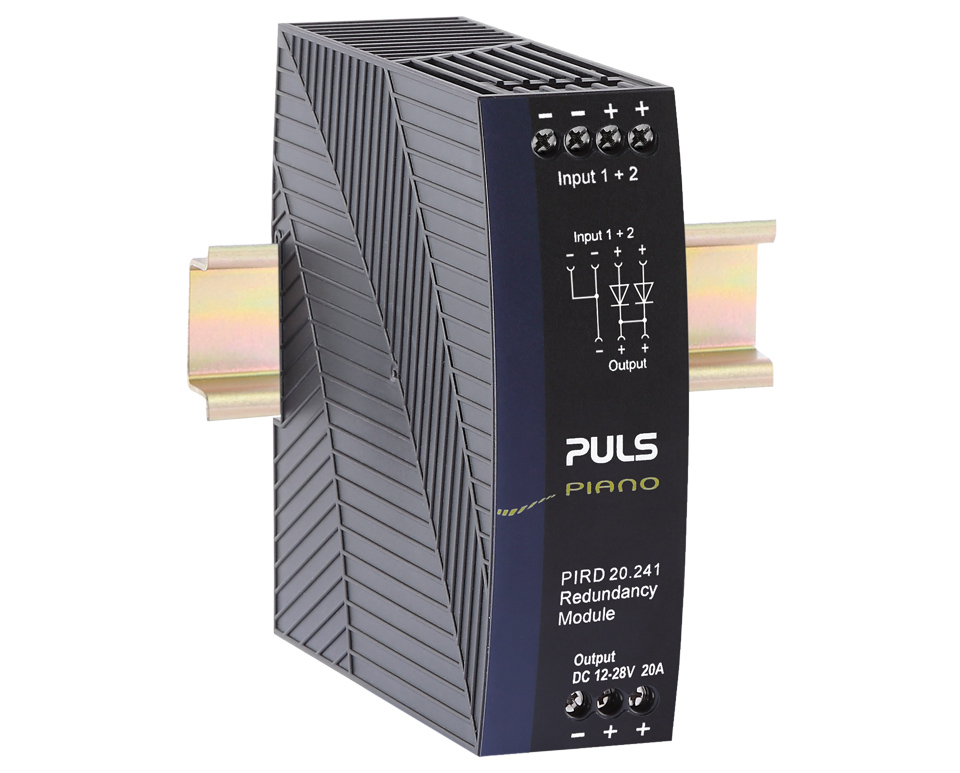

PIRD20.241
Diode redundancy module
24V, 20A 2x 10A; DC-OK relay contact
Datasheet
24V, 20A 2x 10A; DC-OK relay contact
| DC output | 12 - 24Vdc |
|---|---|
| Input | DC 12V - 28V (± 25%) |
| Dimensions (WxHxD) | 39 x 124 x 124mm |
| Weight | 280g |
Input data
| Input current | 2 x 10A |
|---|---|
| Nominal current per input | 10A |
| DC Input voltage | DC 12V - 28V (± 25%) |
| Voltage drop | 460mV |
Output data
| Output current range | 20A |
|---|---|
| Output current | 20A |
| Output current short circuit max. | 26A |
| Derating | 0.5W/°C for >+55°C |
Overview
| Dimensions (WxHxD) | 39mm x 124mm x 124mm |
|---|---|
| Weight per unit (excl. packaging) | 280g |
| Mounting method | DIN rail |
| Operating temp. range | -40°C to 70°C |
| Connection method | Screw terminals |
| Power losses, typ. | 4.6W |
| No-load losses, typ. | 0W |
| MTBF SN 29500 @ 40°C (h) | 20310000h |
