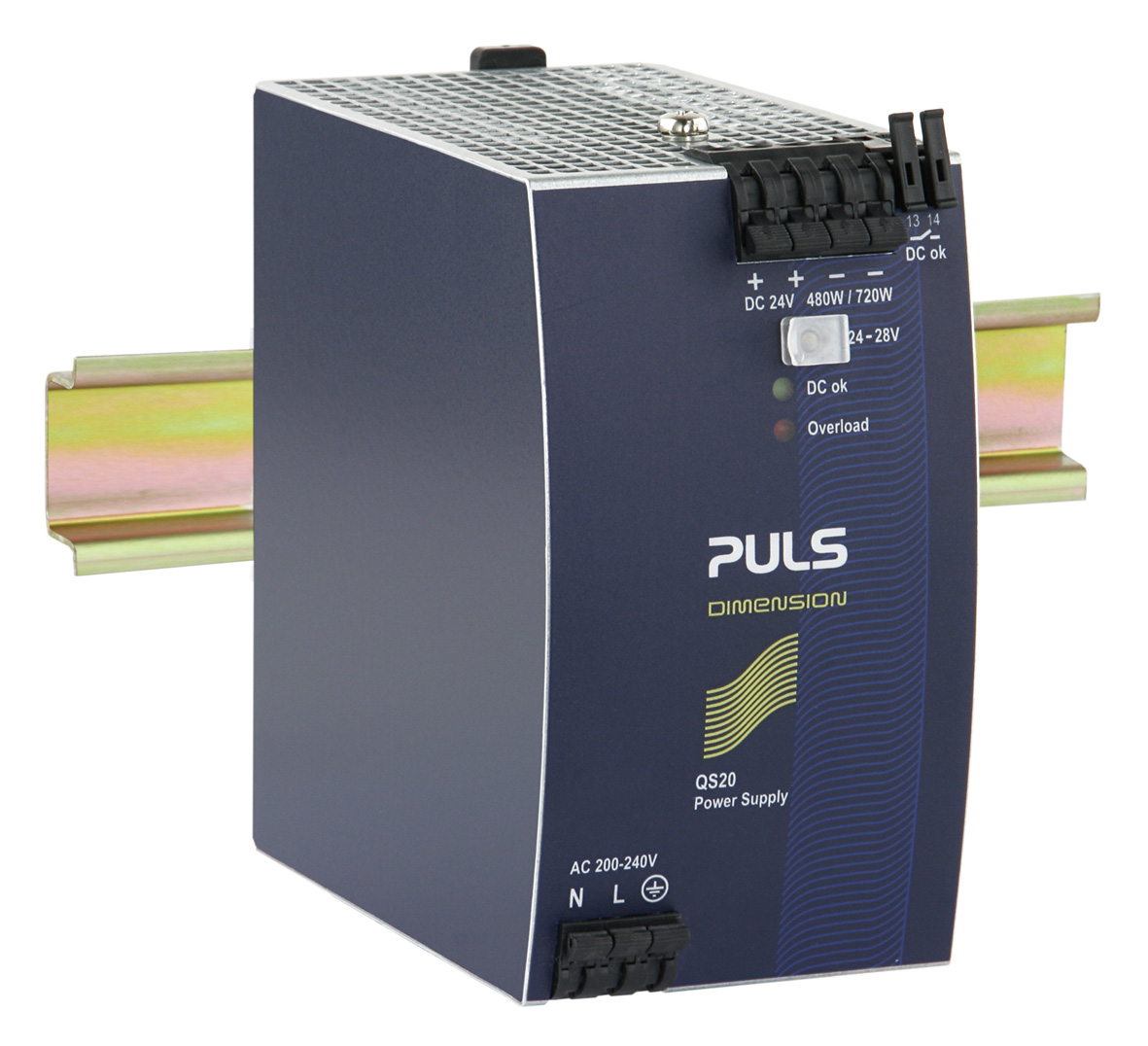

QS20.244
DIN rail power supplies for 1-phase system
24 V, 20 A
Datasheet
24 V, 20 A
| DC output | 24 - 28 Vdc |
|---|---|
| 20 - 17 A | |
| 480 W | |
| Input | AC 200 - 240 V (± 15 %) |
| Dimensions (WxHxD) | 70 x 124 x 127 mm |
| Weight | 880 g |
Input data
| AC Input voltage | AC 200 - 240 V (± 15 %) |
|---|---|
| Power factor | 0.5 |
| Input inrush current limitation | active |
| Input inrush current | 40 A |
| External input fuse recommendation | B-10 A / C-6 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 - 28 V |
| Output current range | 20 - 17 A |
| Output current | 17 A at 28 V |
| 20 A at 24 V | |
| Output power | 480 W |
| Power reserves | 50 % BonusPower |
| Derating | 12 W/°C for >+60 °C |
| Ripple and noise voltage max. | 100 mVpp |
Overview
| Dimensions (WxHxD) | 70 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 880 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 94.5 % |
| Power losses, typ. | 28.3 W |
| MTBF SN 29500 @ 40 °C (h) | 577000 h |
| DC-OK signal | yes |
