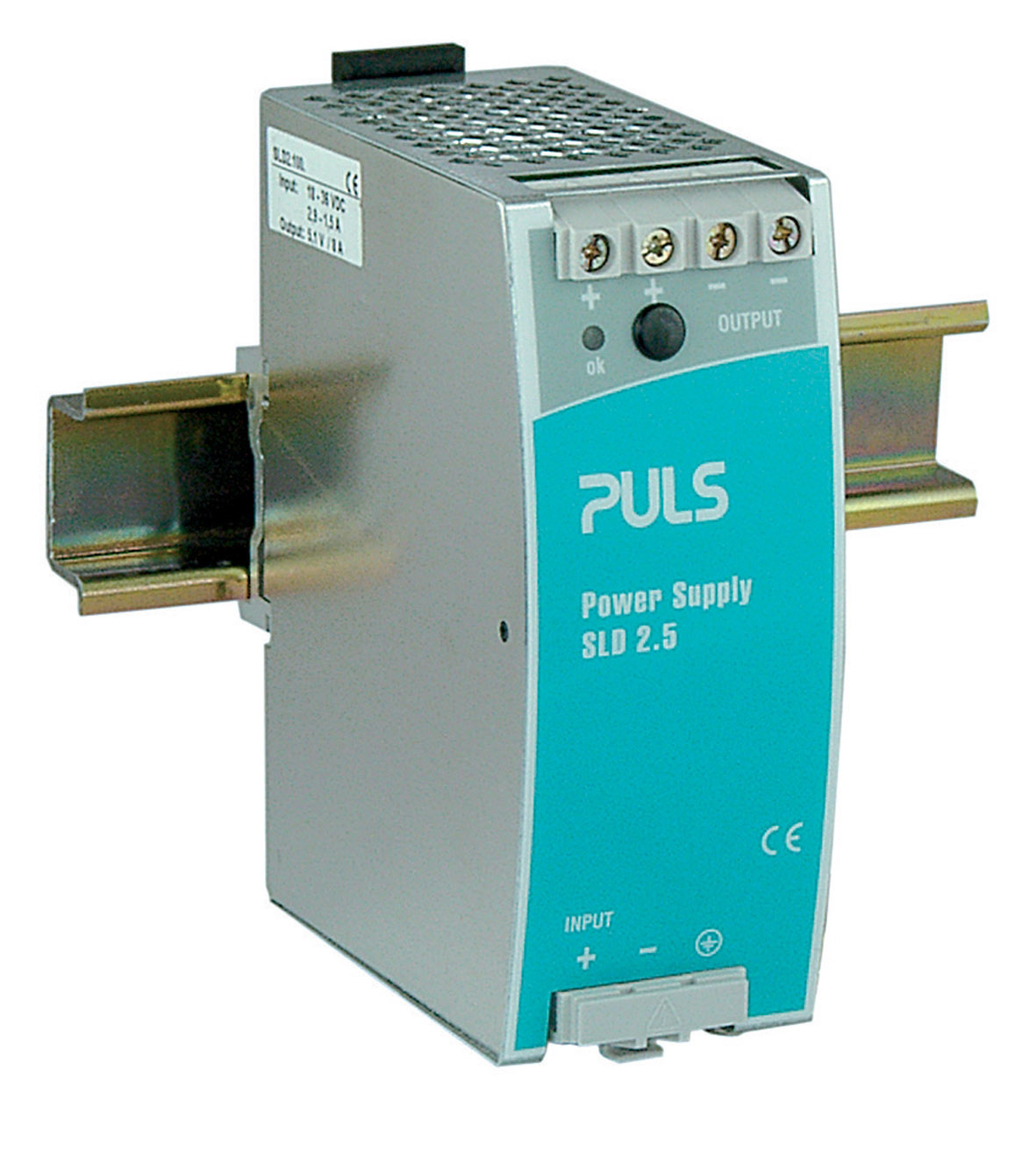

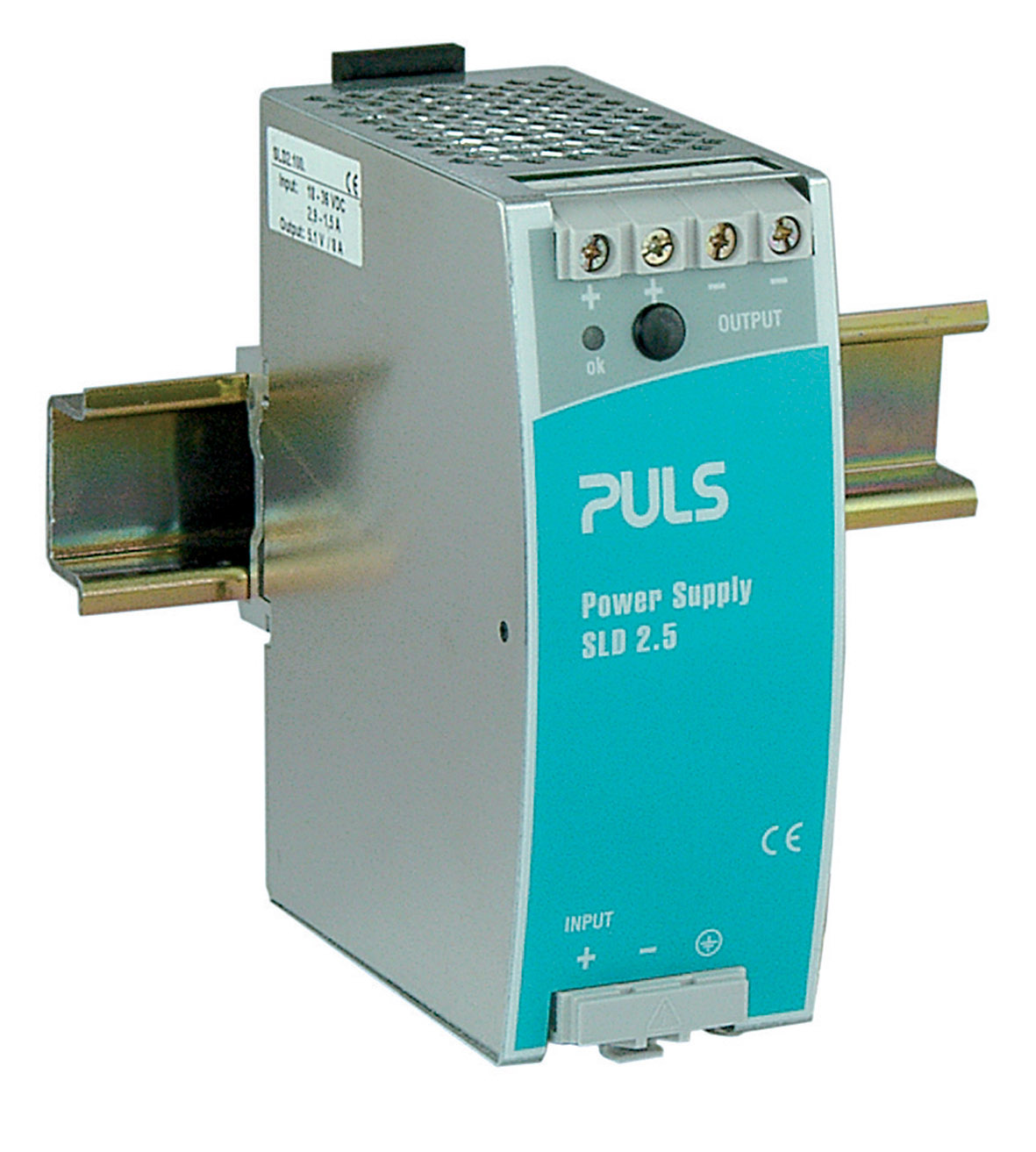

SLD2.100
DC/DC converter
5V, 8A
Datasheet
5V, 8A
| DC output | 5 - 5.5Vdc |
|---|---|
| 8A | |
| 40W | |
| Input | DC 24V (-25%/+50%) |
| Dimensions (WxHxD) | 49 x 124 x 102mm |
| Weight | 470g |
Input data
| DC Input voltage | DC 24V (-25%/+50%) |
|---|
Output data
| Nominal voltage | 5Vdc |
|---|---|
| Adjustment range | 5 - 5.5V |
| Output current range | 8A |
| Output current | 5.5V |
| 8A at 5V | |
| Output power | 40W |
| Derating | 1.5W/°C for >+60°C |
| Ripple and noise voltage max. | 50mVpp |
Overview
| Dimensions (WxHxD) | 49mm x 124mm x 102mm |
|---|---|
| Weight per unit (excl. packaging) | 470g |
| Mounting method | DIN rail |
| Operating temp. range | 0°C to 40°C |
| Connection method | Screw terminals |
| Efficiency, typ. | 82% |
| Power losses, typ. | 8.5W |
| MTBF SN 29500 @ 40°C (h) | 510000h |
