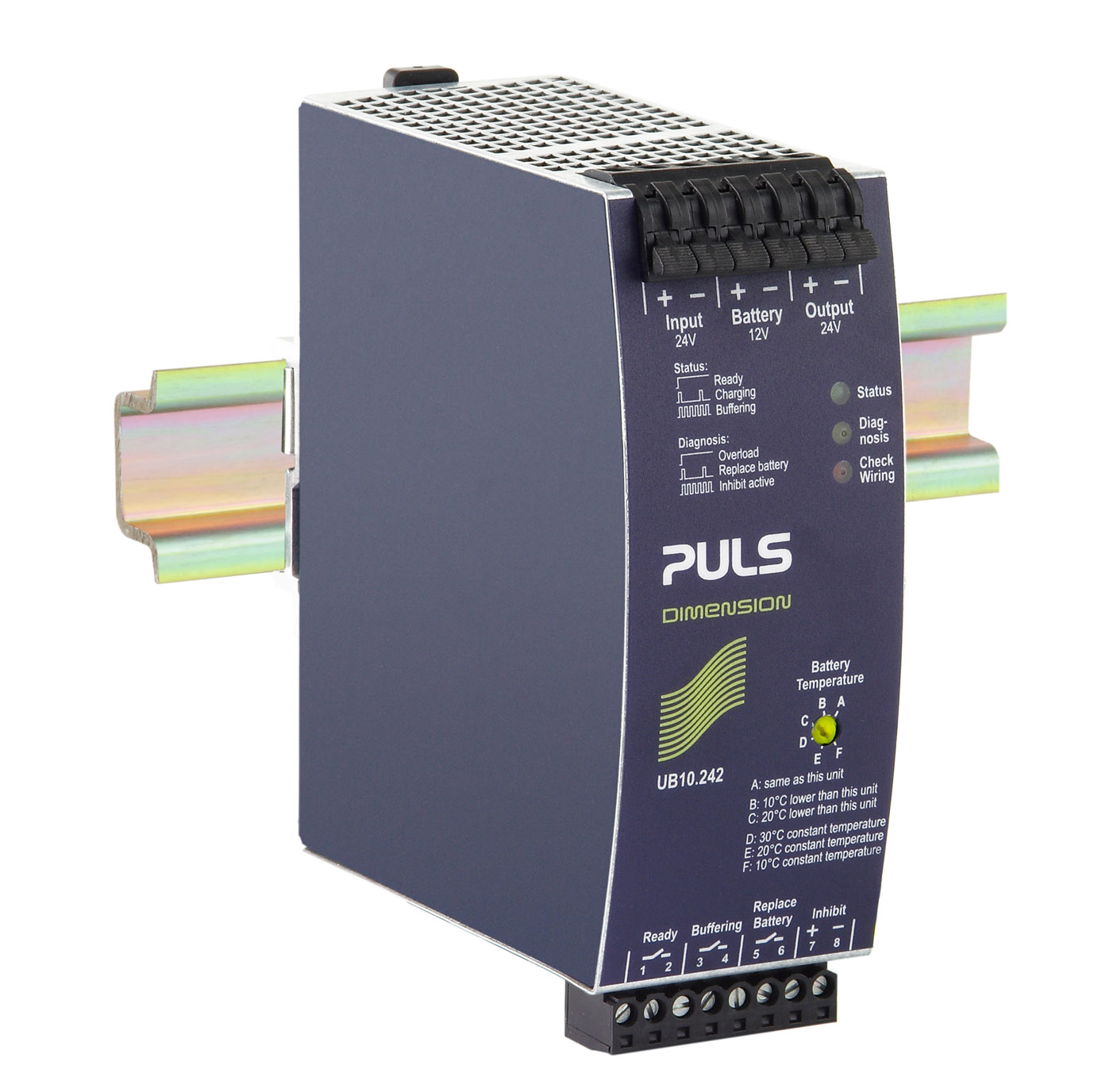

DC-UPS control unit
24V, 10A
for battery sizes from 17Ah to 130Ah
DC output DC 24V
Input DC 24V
Dimensions (WxHxD) 49 x 124 x 117mm
Weight 545g

Input data

DC Input voltage DC 24V
Int. current consumption (incl. charging current) 2.2A

Output data

Nominal voltage 24Vdc
Output current 15A


Storage element External lead acid battery
Allowed battery size 12V, 17 to 130Ah
Temperature tracking of the end-of-charge voltage manual/automatic


Dimensions (WxHxD) 49mm x 124mm x 117mm
Weight per unit (excl. packaging) 545g
Mounting method DIN rail
Operating temp. range -25°C to 50°C
Connection method Spring clamps
MTBF SN 29500 @ 40°C (h) 886000h
