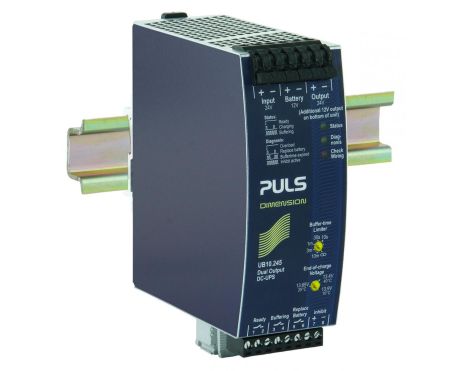

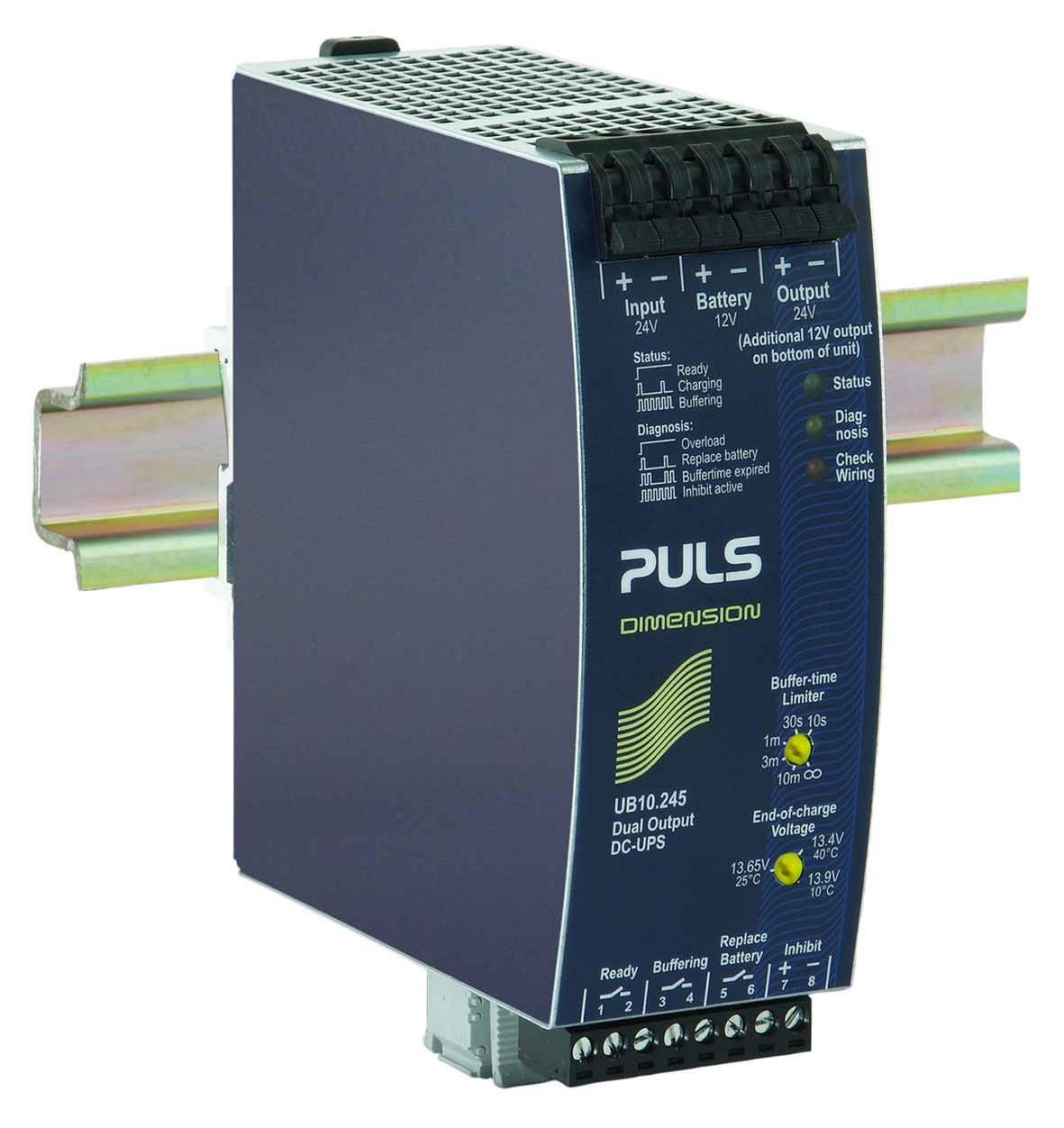

24 V, 10 A additional 12V output
|DC output||DC 24 V|
|Input||DC 24 V|
|Dimensions (WxHxD)||49 x 124 x 117 mm|
|DC Input voltage||DC 24 V|
|Int. current consumption (incl. charging current)||1.3 A|
|Nominal voltage||24 Vdc|
|Output current||15 A|
|Derating||0.25 W/°C for >+60 °C|
|Storage element||External lead acid battery|
|Allowed battery size||12 V, 3.9 to 40 Ah|
|Temperature tracking of the end-of-charge voltage||manual-select|
|Dimensions (WxHxD)||49 mm x 124 mm x 117 mm|
|Weight per unit (excl. packaging)||350 g|
|Mounting method||DIN rail|
|Operating temp. range||-25 °C to 70 °C|
|Connection method||Spring clamps|
|MTBF SN 29500 @ 40 °C (h)||788000 h|
