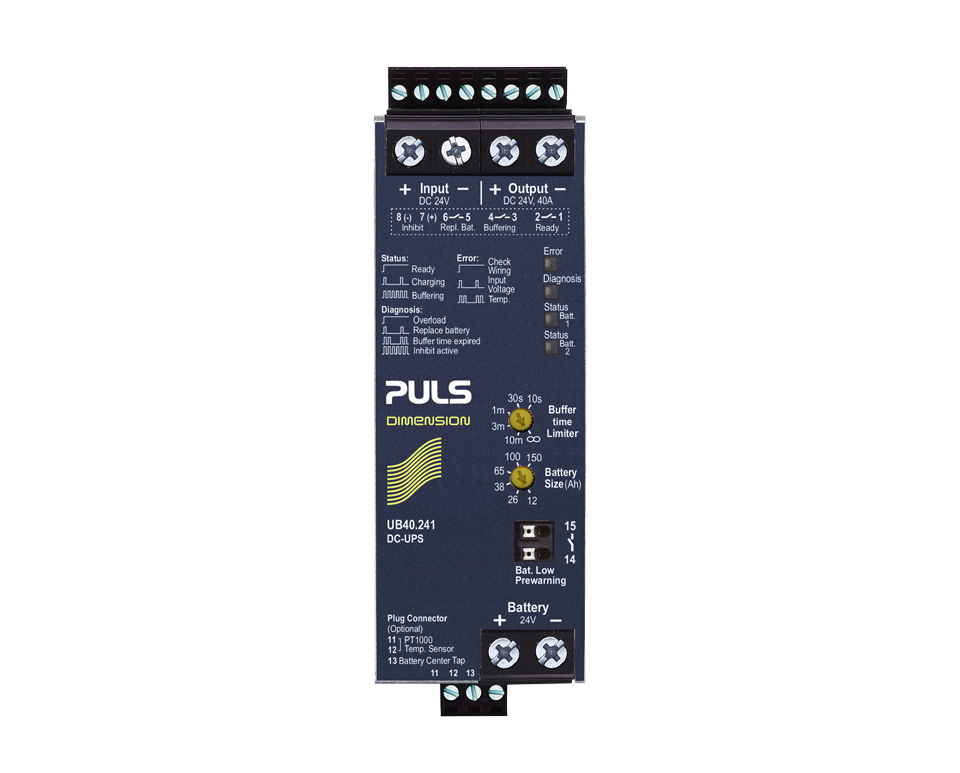

UB40.241
DC-UPS control unit
24 V, 40 A for battery sizes from 12Ah to 200Ah
Datasheet
24 V, 40 A for battery sizes from 12Ah to 200Ah
| DC output | DC 24 V |
|---|---|
| 40 A | |
| Input | DC 24 V (± 25 %) |
| Dimensions (WxHxD) | 46 x 124 x 127 mm |
| Weight | 530 g |
Input data
| DC Input voltage | DC 24 V (± 25 %) |
|---|---|
| Int. current consumption (incl. charging current) | 3.2 / 6.2 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Output current | 40 A |
| Output power | 960 W |
| Derating | 24 W/°C for +50 to +70 °C |
Buffering
| Storage element | External lead acid battery |
|---|---|
| Allowed battery size | 12 Ah - 200 Ah |
| Temperature tracking of the end-of-charge voltage | automatically with temp. sensor |
Overview
| Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 530 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Screw terminals |
