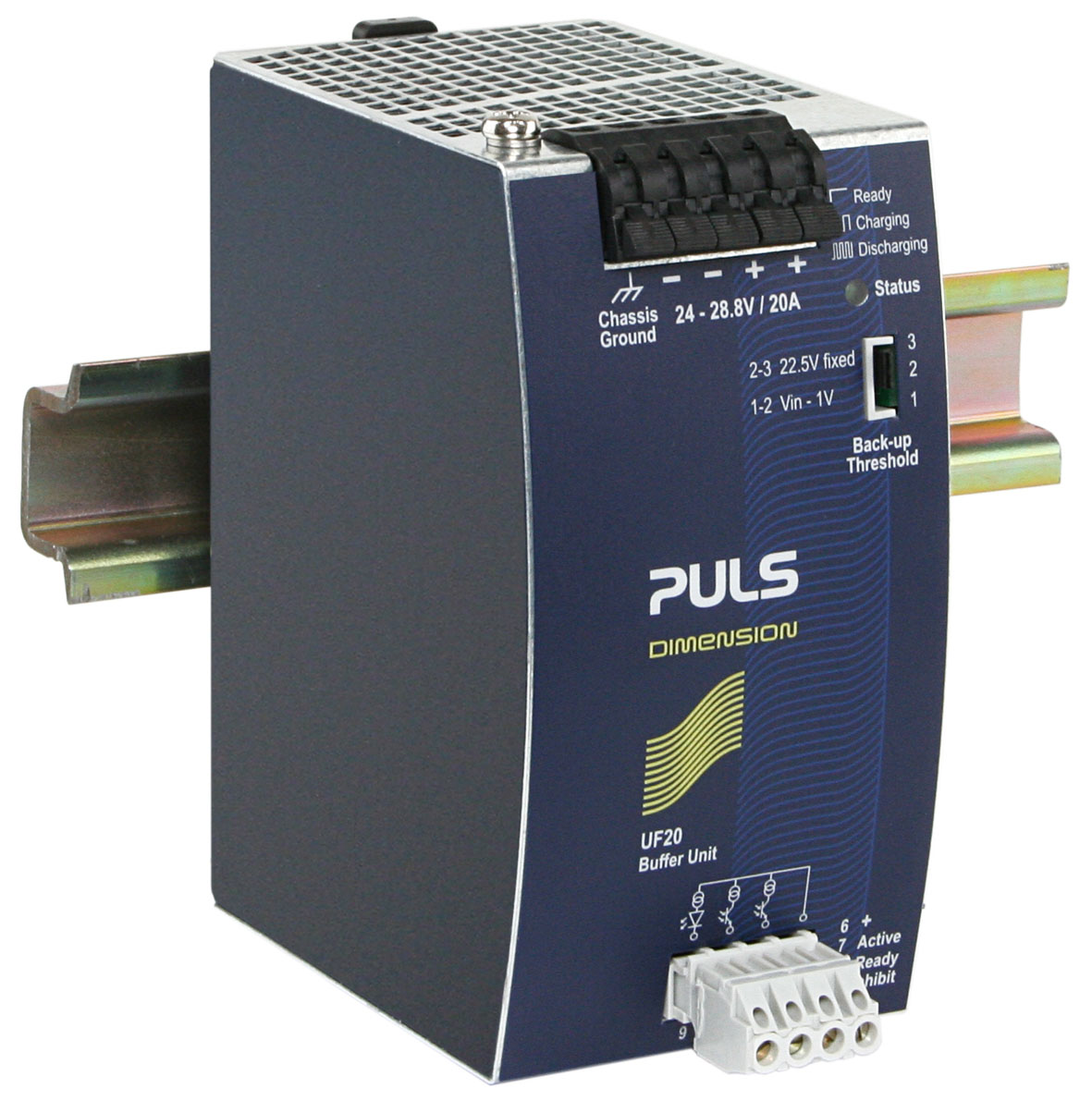

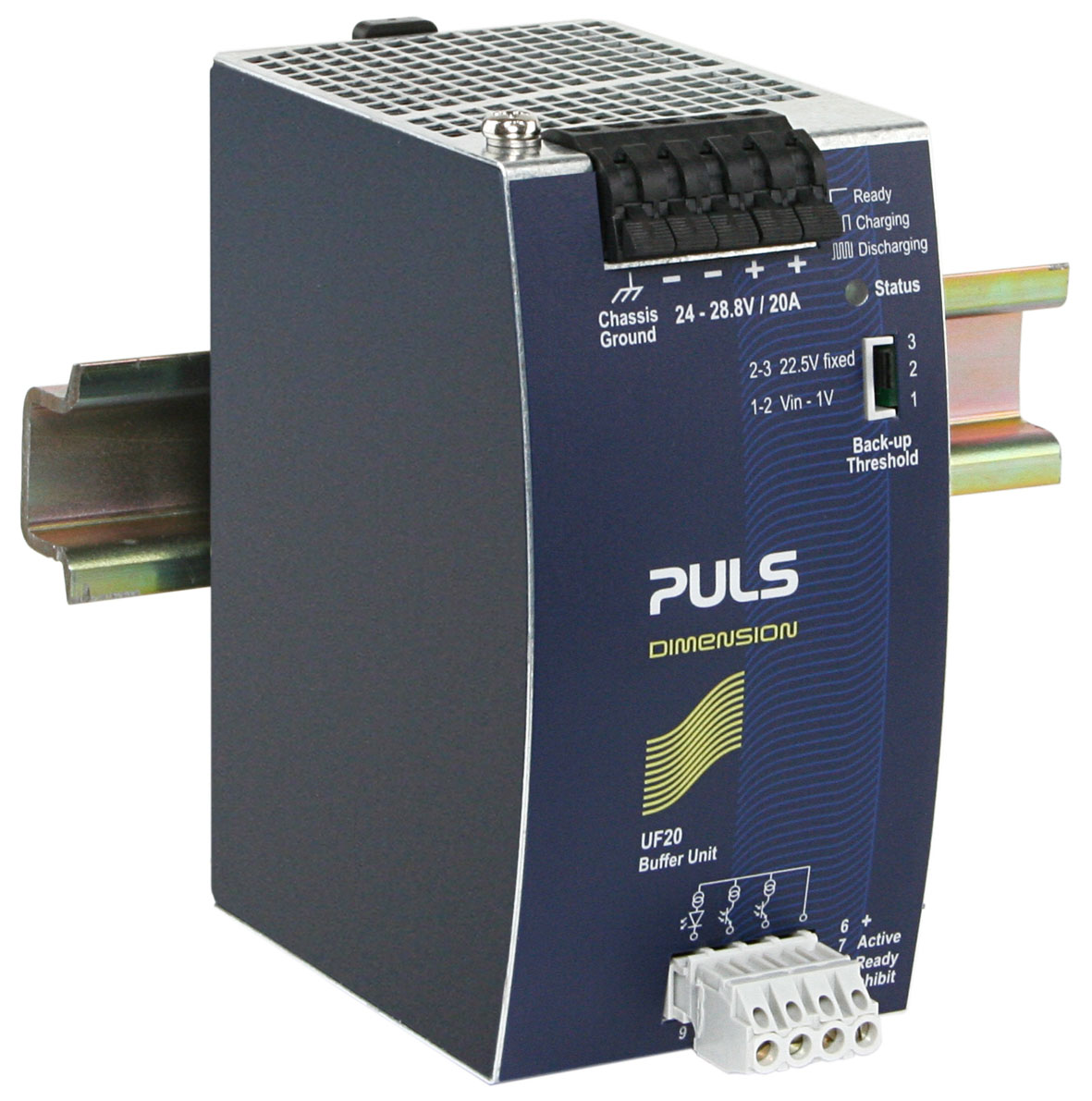

UF20.241
Buffer module
24 V, 20 A electrolytic capacitor buffer module typ. 310ms at 20A
Datasheet
24 V, 20 A electrolytic capacitor buffer module typ. 310ms at 20A
| DC output | DC 24 V |
|---|---|
| 20 A | |
| Input | DC 24 V - 24 V (-7 %/+20 %) |
| Dimensions (WxHxD) | 64 x 124 x 102 mm |
| Weight | 740 g |
Input data
| DC Input voltage | DC 24 V - 24 V (-7 %/+20 %) |
|---|
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| 22.5 Vds | |
| Output current | 24 A |
| 20 A |
Buffering
| Storage element | Electrolytic capacitors |
|---|
Overview
| Dimensions (WxHxD) | 64 mm x 124 mm x 102 mm |
|---|---|
| Weight per unit (excl. packaging) | 740 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| MTBF SN 29500 @ 40 °C (h) | 2327000 h |
