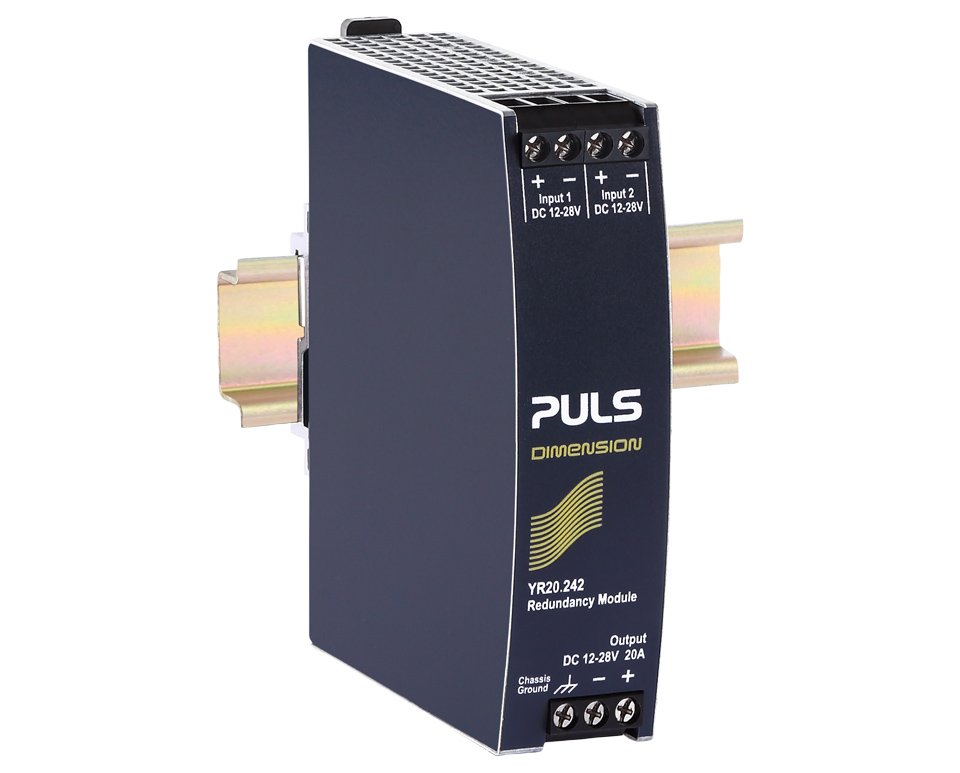

MOSFET redundancy module
24V, 20A
2 x 10A input
DC output 12 - 28Vdc
Input DC 12V - 28V
Dimensions (WxHxD) 32 x 124 x 117mm
Weight 250g

Input data

Input current 2 x 10A
Nominal current per input 10A
DC Input voltage DC 12V - 28V
Voltage drop 60mV

Output data

Output current range 20A
Output current 20A
Output current short circuit max. 26A


Dimensions (WxHxD) 32mm x 124mm x 117mm
Weight per unit (excl. packaging) 250g
Mounting method DIN rail
Operating temp. range -40°C to 70°C
Connection method Screw terminals
Power losses, typ. 0.6W
No-load losses, typ. 0.2W
MTBF SN 29500 @ 40°C (h) 7895000h
