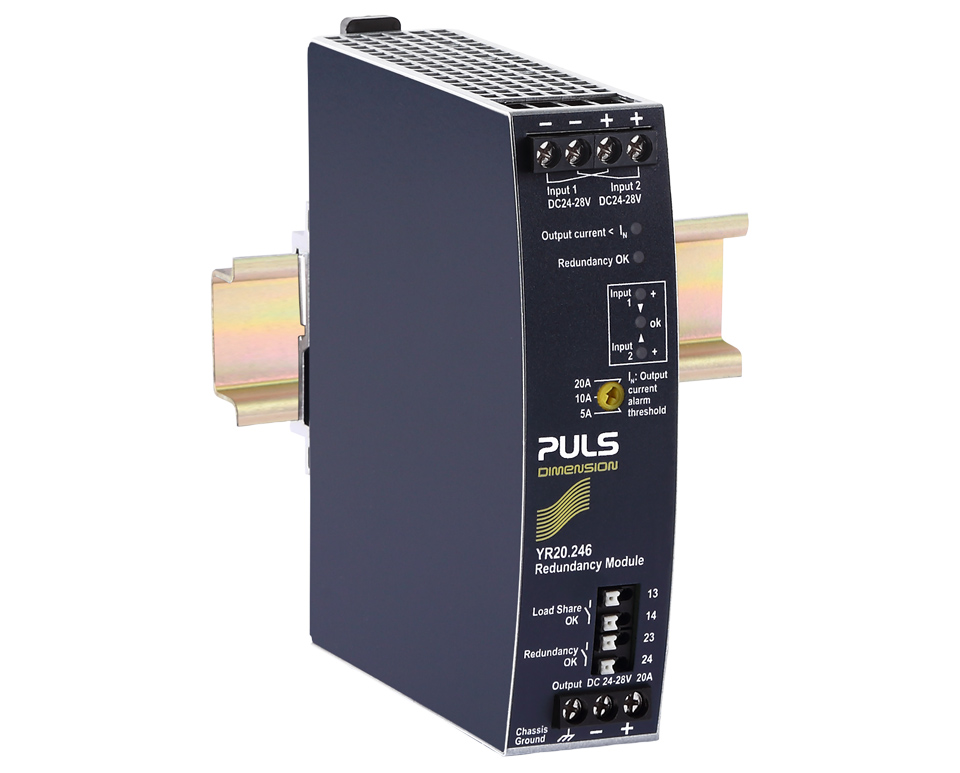

YR20.246
MOSFET redundancy module
24 V, 20 A 2 x 10A input
Datasheet
24 V, 20 A 2 x 10A input
| DC output | 24 - 28 Vdc |
|---|---|
| 20 A | |
| Input | DC 24 V - 28 V |
| Dimensions (WxHxD) | 32 x 124 x 117 mm |
| Weight | 310 g |
Input data
| Input current | 2 x 10 A |
|---|---|
| Nominal current per input | 10 A |
| DC Input voltage | DC 24 V - 28 V |
| Voltage drop | 110 mV |
Output data
| Output current range | 20 A |
|---|---|
| Output current | 20 A |
| Output current short circuit max. | 26 A |
Overview
| Dimensions (WxHxD) | 32 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 310 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 2.6 W |
| No-load losses, typ. | 1.7 W |
| MTBF SN 29500 @ 40 °C (h) | 1954000 h |
