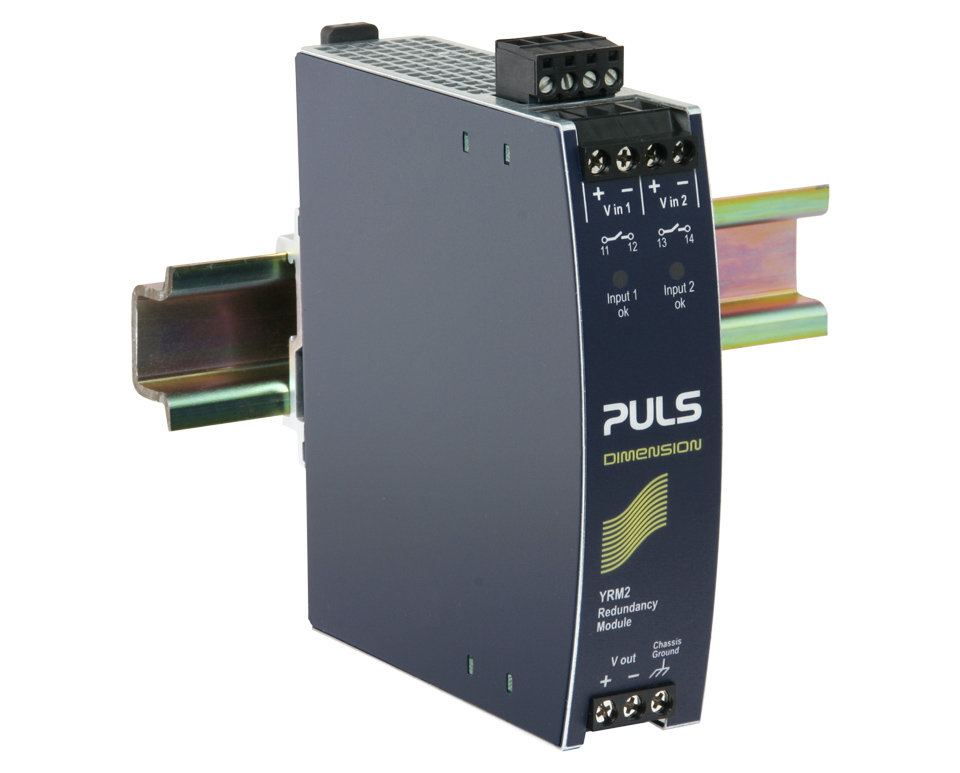

YRM2.DIODE
Diode redundancy module
24V, 20A 2x 10A input, with signal contact
Datasheet
24V, 20A 2x 10A input, with signal contact
| DC output | 24 - 48Vdc |
|---|---|
| 20A | |
| Input | DC 24V - 48V |
| Dimensions (WxHxD) | 32 x 124 x 117mm |
| Weight | 350g |
Input data
| Input current | 2 x 10A |
|---|---|
| Nominal current per input | 10A |
| DC Input voltage | DC 24V - 48V |
| Voltage drop | 800mV |
Output data
| Output current range | 20A |
|---|---|
| Output current | 20A |
| Output current short circuit max. | 25A |
| Derating | 0.5W/°C for >+60°C |
Overview
| Dimensions (WxHxD) | 32mm x 124mm x 117mm |
|---|---|
| Weight per unit (excl. packaging) | 350g |
| Mounting method | DIN rail |
| Operating temp. range | -40°C to 70°C |
| Connection method | Screw terminals |
| Power losses, typ. | 9.0W |
| No-load losses, typ. | 1W |
| MTBF SN 29500 @ 40°C (h) | 9100000h |
