ZM2.WALL

Wall / panel mount bracket

Dimensions (WxHxD)	18 x 145 x 28 mm
Weight	90 g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Overview

Dimensions (WxHxD)	18 mm x 145 mm x 28 mm
Weight per unit (excl. packaging)	90 g
Mounting method	Wall mounting
Housing material	Metal

Techn. documentation

Datasheet

(140 KB)

Installation manual

(195 KB)

2-D dimensional mechanical CAD drawing DXF

(120 KB)

2-D dimensional mechanical drawing DWG

(163 KB)

3-D dimensional mechanical CAD model STEP

(8 KB)

3-D dimensional mechanical model DWF

(11 KB)

Image ZM2.WALL

(114 KB)

Approvals / Product Compliance

Marine ABS

(3 MB)

Marine DNV

(89 KB)

Material Compliance Declaration – RoHS, REACH, ...

(86 KB)

Ship Recycling – IHM Declaration

(473 KB)

PULS Conflict Minerals Statement & RMI Reporting Templates (CMRT/EMRT)

(3 MB)

Features

Wall / panel mouting bracket

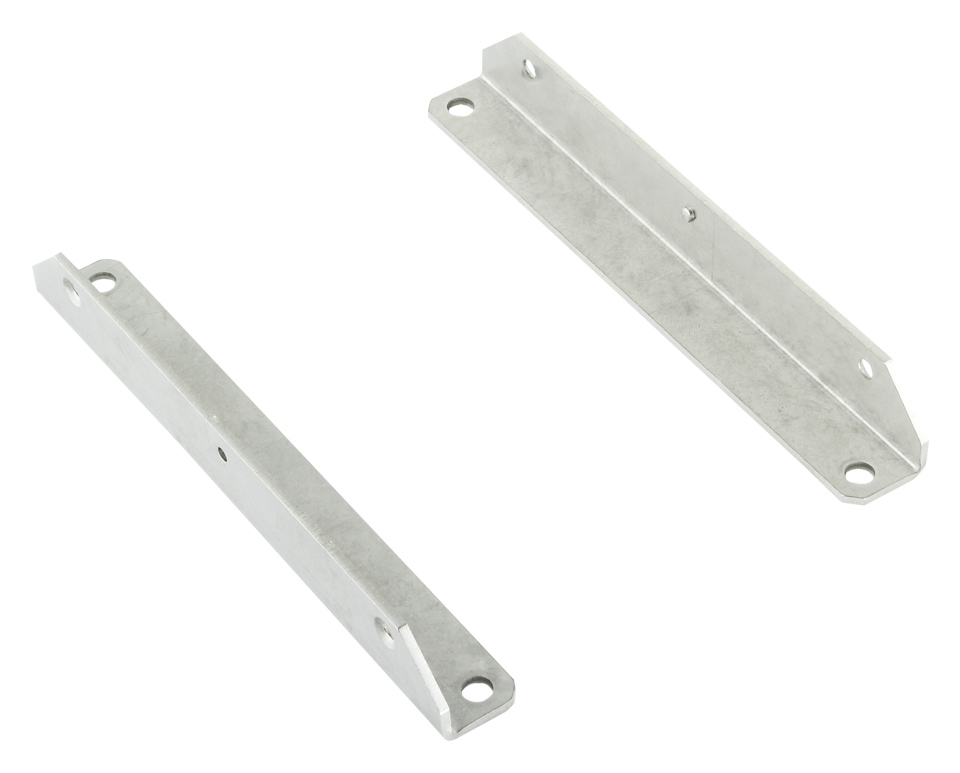

This accessory is used to mount various DIMENSION power supplies and other DIMENSION supplementary modules on a wall or on a panel without using a DIN rail. To mount a unit on a wall or panel, the two zinc-plated steel brackets have to be installed on the side of the unit.

Please check the datasheet to see if the ZM2.WALL brackets are suitable for a specific DIMENSION power supply or supplementary module.

Commercial info

Article number	ZM2.WALL
Product status	Lead time on request
UPC code	875404001539
Warranty period (months)	36
Country of origin	China / Czech Republic
Packaging unit	1 PU pc
Weight per piece (excl. packaging)	90 g
E classification	eClass 5.1 27049090
	eClass 6.x 27049090
	eClass 7.x 27049090
	eClass 8.0 27049090
	eClass 9.0 27049090
	ETIM 4.0 EC002625
	ETIM 5.0 EC001024
Customs tariff number	85049090
