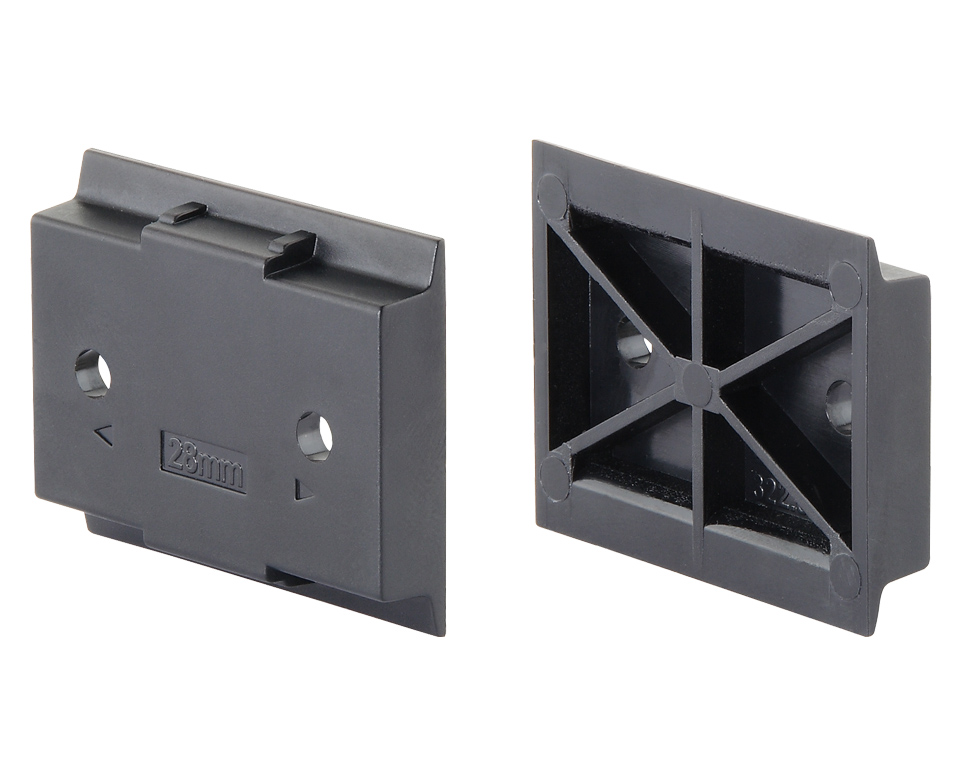

ZM3.WALL

Wall / panel mount bracket
for 45mm wide MiniLine units; 25 pcs

Dimensions (WxHxD)	45 x 35 x 7 mm
Weight	25 g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Overview

Dimensions (WxHxD)	45 mm x 35 mm x 7 mm
Weight per unit (excl. packaging)	25 g
Mounting method	Wall mounting
Housing material	Metal

Techn. documentation

Datasheet

(95 KB)

Installation manual

(175 KB)

2-D dimensional mechanical CAD drawing DXF

(94 KB)

2-D dimensional mechanical drawing DWG

(162 KB)

3-D dimensional mechanical CAD model STEP

(13 KB)

3-D dimensional mechanical model DWF

(11 KB)

Image ZM3.WALL

(194 KB)

Approvals / Product Compliance

Material Compliance Declaration – RoHS, REACH, ...

(87 KB)

PULS Conflict Minerals Statement & RMI Reporting Templates (CMRT/EMRT)

(3 MB)

Features

Wall / panel mount bracket for 45mm wide MiniLine units
Bulk package with 25 pcs

Commercial info

Article number	ZM3.WALL
Product status	Lead time on request
UPC code	875404001904
Warranty period (months)	36
Country of origin	Czech Republic
Packaging unit	25 PU pc
Weight per piece (excl. packaging)	25 g
E classification	eClass 5.1 27049090
	eClass 6.x 27049090
	eClass 7.x 27049090
	eClass 8.0 27049090
	eClass 9.0 27049090
	ETIM 4.0 EC002625
	ETIM 5.0 EC001024
Customs tariff number	85049090
