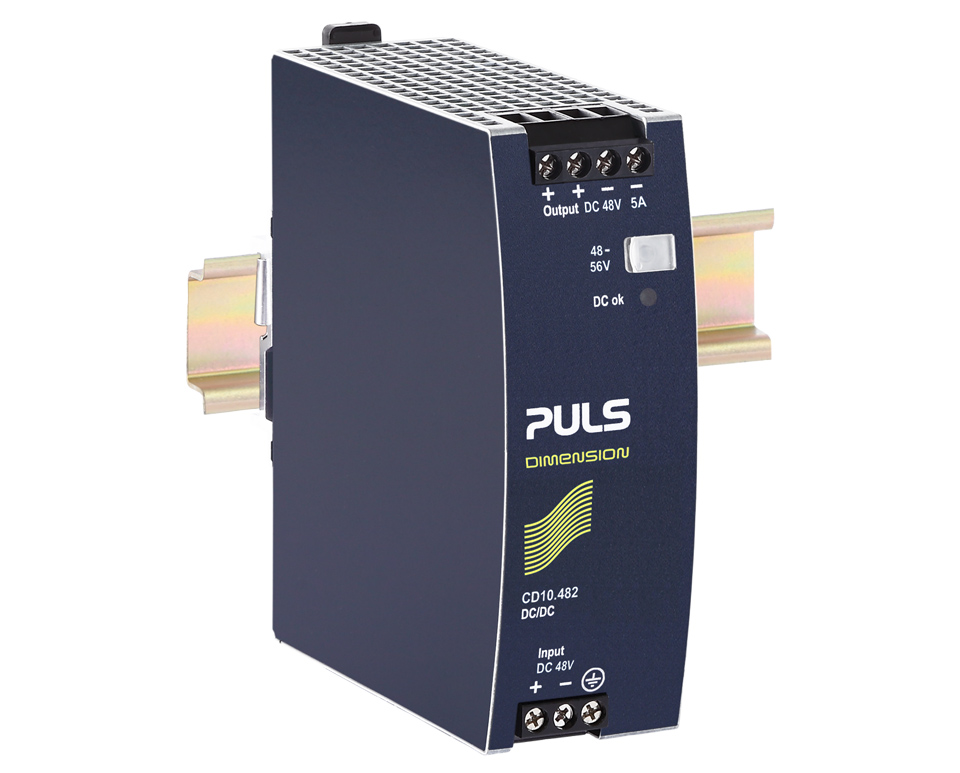

CD10.482

DC/DC converter
48 V, 5 A
Datasheet
DC output 48 - 56 Vdc
5 - 4.3 A
240 W
Input DC 48 V (± 25 %)
Dimensions (WxHxD) 42 x 124 x 117 mm
Weight 500 g
Compare

Input data

DC Input voltage DC 48 V (± 25 %)

Output data

Nominal voltage 48 Vdc
Adjustment range 48 - 56 V
Output current range 5 - 4.3 A
Output current 4.3 A at 56 V
5 A at 48 V
Output power 240 W
Power reserves 20 % Power Boost
Derating 6 W/°C for >+60 °C
Ripple and noise voltage max. 100 mVpp

Overview

Dimensions (WxHxD) 42 mm x 124 mm x 117 mm
Weight per unit (excl. packaging) 500 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
Efficiency, typ. 95.1 %
Power losses, typ. 12.4 W 12.4 W
MTBF SN 29500 @ 40 °C (h) 853000 h
