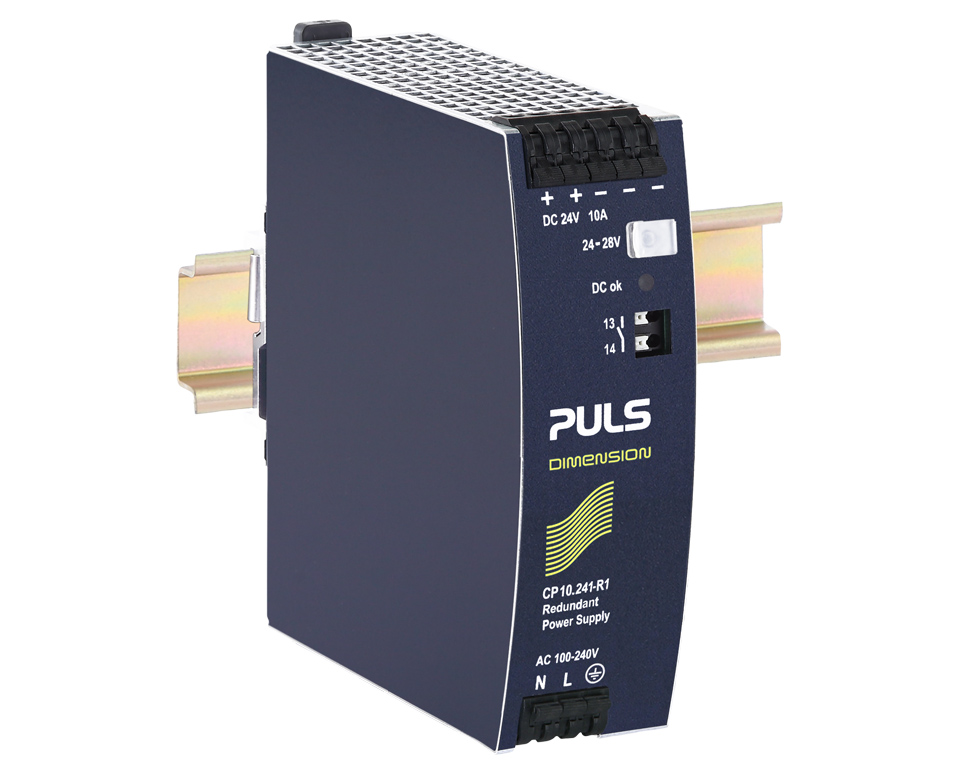

CP10.241-R1
24 V, 10 A spring clamp terminals
DC output | 24 Vdc |
---|---|
10 A | |
240 W | |
Input | AC 100 - 240 V (-15 %/+10 %) |
DC 110 V - 150 V (± 20 %) | |
Dimensions (WxHxD) | 39 x 124 x 117 mm |
Weight | 600 g |
Input data
AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
---|---|
DC Input voltage | DC 110 V - 150 V (± 20 %) |
Harmonic correction | active |
Power factor | 0.97 |
Input inrush current limitation | active |
Input inrush current | 6 A / 9 A |
External input fuse recommendation | B-6 A / C-6 A |
Output data
Nominal voltage | 24 Vdc |
---|---|
Adjustment range | 24 V |
Output current range | 10 A |
Output current | 10 A at 24 V |
Output power | 240 W |
Power reserves | 20 % Power Boost |
Derating | 6 W/°C for >+60 °C |
Ripple and noise voltage max. | 50 mVpp |
Overview
Dimensions (WxHxD) | 39 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 600 g |
Mounting method | DIN rail |
Operating temp. range | -25 °C to 70 °C |
Connection method | Spring clamps |
Efficiency, typ. | 94.7 % |
Power losses, typ. | 13.4 W |
MTBF SN 29500 @ 40 °C (h) | 641000 h |
DC-OK signal | yes |
