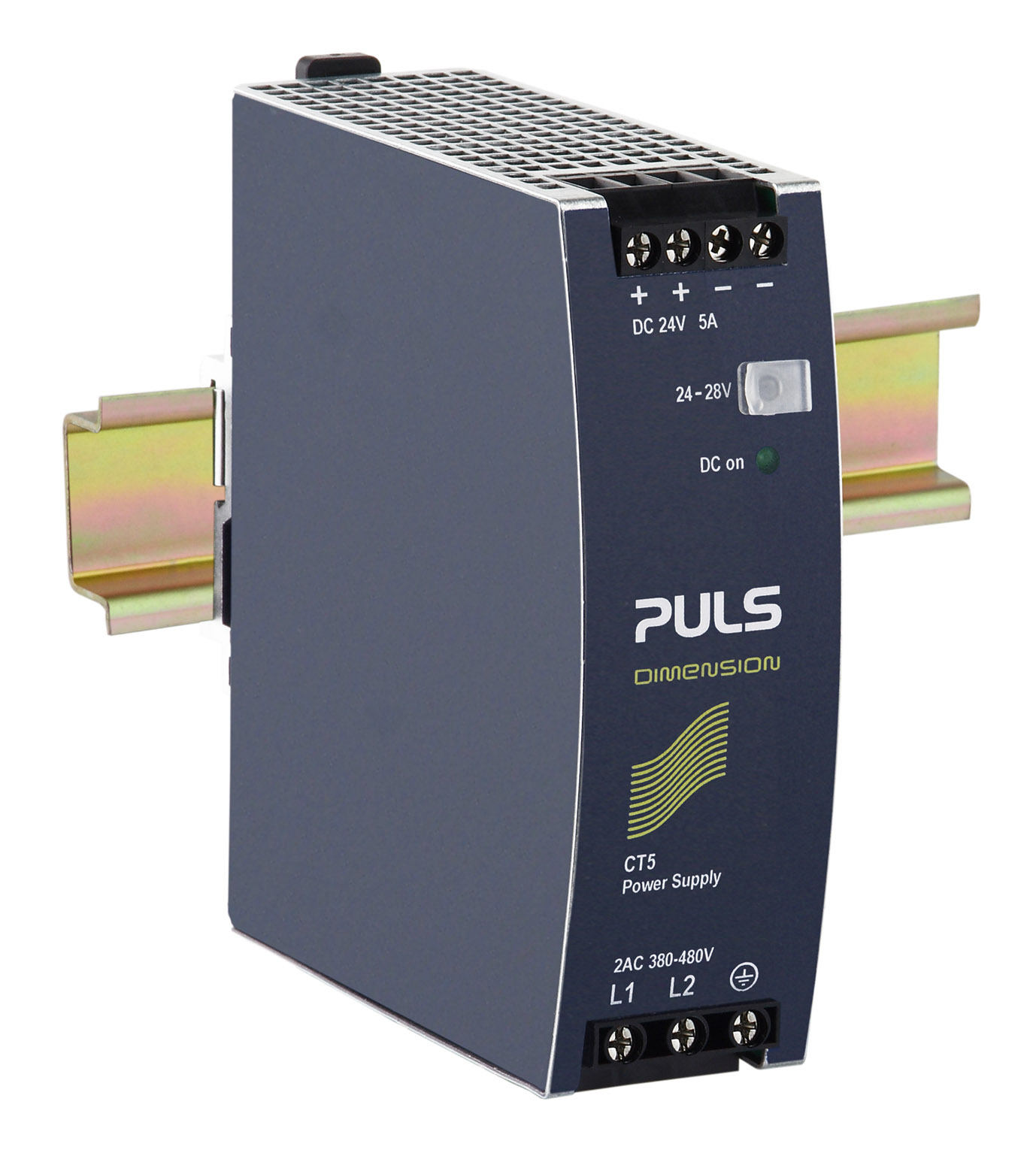

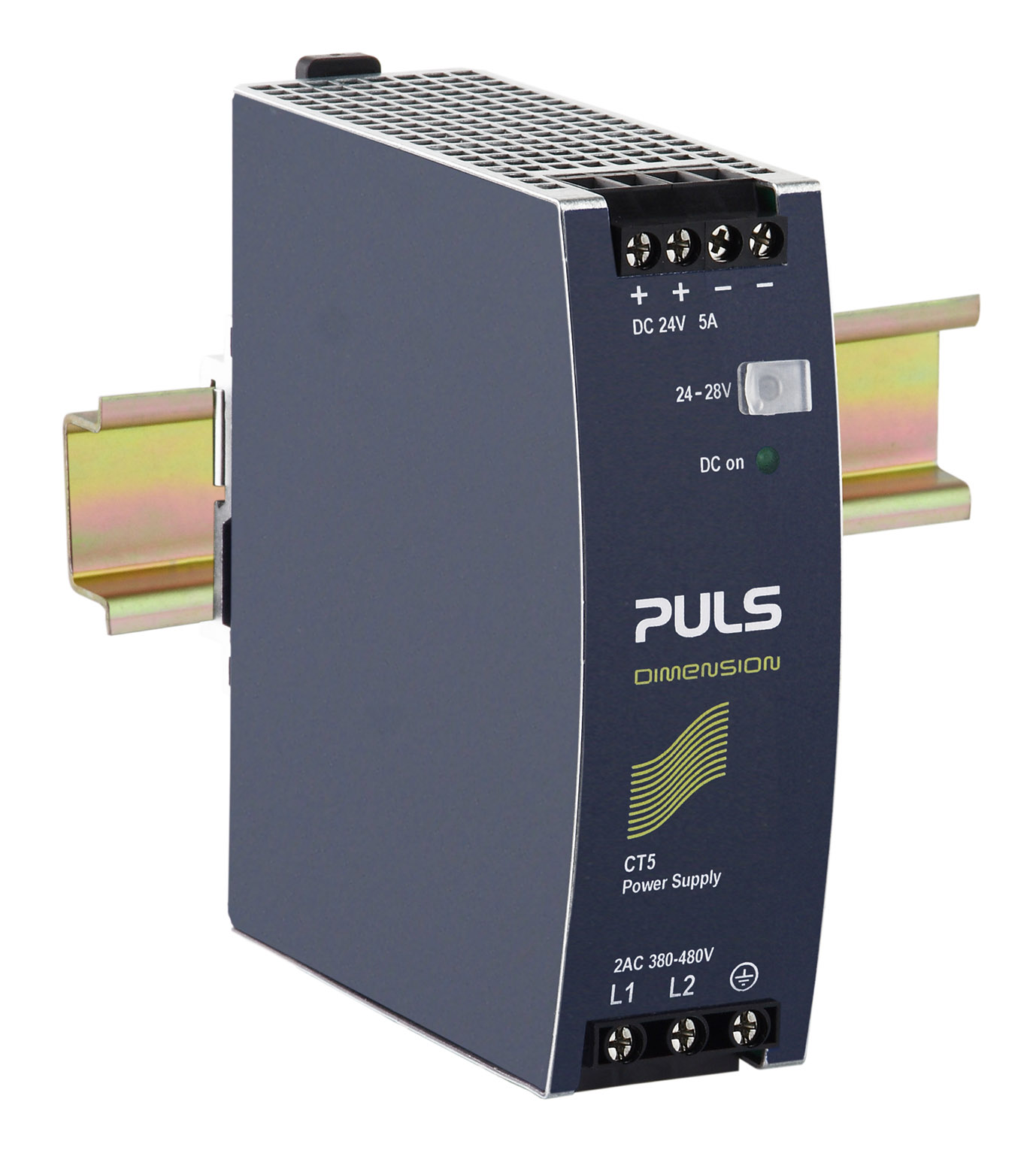

CT5.241
24 V, 5 A
DC output | 24 - 28 Vdc |
---|---|
5 - 4.3 A | |
120 W | |
Input | AC 380 - 480 V (-15 %/+20 %) |
Dimensions (WxHxD) | 40 x 124 x 117 mm |
Weight | 500 g |
Input data
AC Input voltage | AC 380 - 480 V (-15 %/+20 %) |
---|---|
Harmonic correction | PFC |
Power factor | 0.45 |
Input inrush current limitation | active |
Input inrush current | 4 A / 4 A |
External input fuse recommendation | B-6 A / C-3 A |
Output data
Nominal voltage | 24 Vdc |
---|---|
Adjustment range | 24 - 28 V |
Output current range | 5 - 4.3 A |
Output current | 4.3 A at 28 V |
5 A at 24 V | |
Output power | 120 W |
Power reserves | 20 % Power Boost |
Derating | 3 W/°C for >+60 °C |
Ripple and noise voltage max. | 50 mVpp |
Overview
Dimensions (WxHxD) | 40 mm x 124 mm x 117 mm |
---|---|
Weight per unit (excl. packaging) | 500 g |
Mounting method | DIN rail |
Operating temp. range | -25 °C to 70 °C |
Connection method | Screw terminals |
Efficiency, typ. | 90.4 % |
Power losses, typ. | 12.7 W |
MTBF SN 29500 @ 40 °C (h) | 1173000 h |
