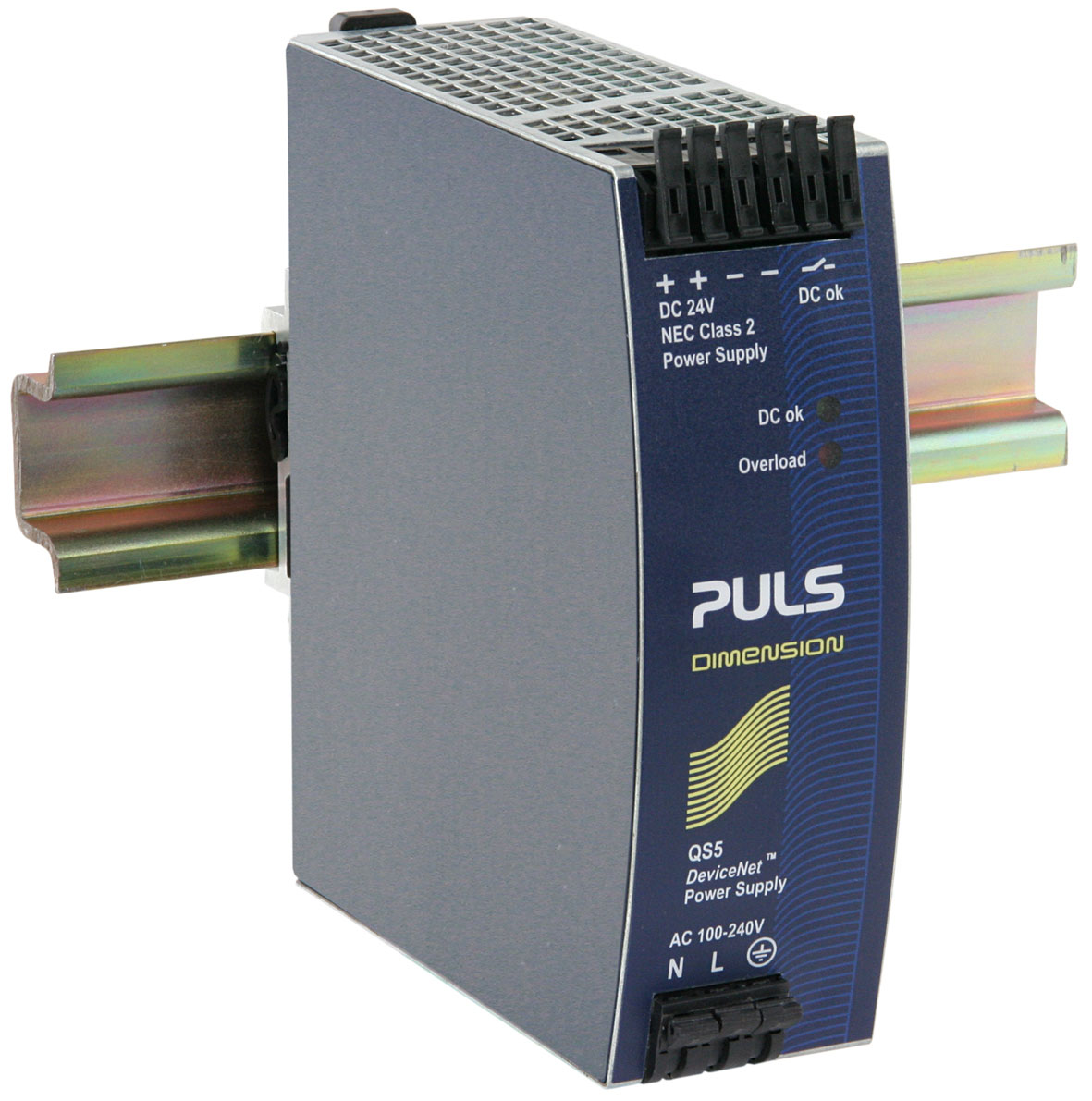

QS5.DNET
DeviceNet power supply
24 V, 3.8 A NEC Class 2
Datasheet
24 V, 3.8 A NEC Class 2
| DC output | 24 Vdc |
|---|---|
| 3.8 - 3.8 A | |
| 91 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (± 20 %) | |
| Dimensions (WxHxD) | 40 x 124 x 117 mm |
| Weight | 620 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (± 20 %) |
| Harmonic correction | active |
| Power factor | 0.90 |
| Input inrush current limitation | active |
| Input inrush current | 9 A / 11 A |
| External input fuse recommendation | B-6 A / C-3 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| Adjustment range | 24 V |
| Output current range | 3.8 - 3.8 A |
| Output current | 3.8 A V |
| 3.8 A at 24 V | |
| Output power | 91 W |
| Derating | 2 W/°C for >+60 °C |
| Ripple and noise voltage max. | 50 mVpp |
Overview
| Dimensions (WxHxD) | 40 mm x 124 mm x 117 mm |
|---|---|
| Weight per unit (excl. packaging) | 620 g |
| Mounting method | DIN rail |
| Operating temp. range | -25 °C to 70 °C |
| Connection method | Spring clamps |
| Efficiency, typ. | 92 % |
| Power losses, typ. | 7.9 W |
| MTBF SN 29500 @ 40 °C (h) | 831000 h |
| DC-OK signal | yes |
