UB20.241

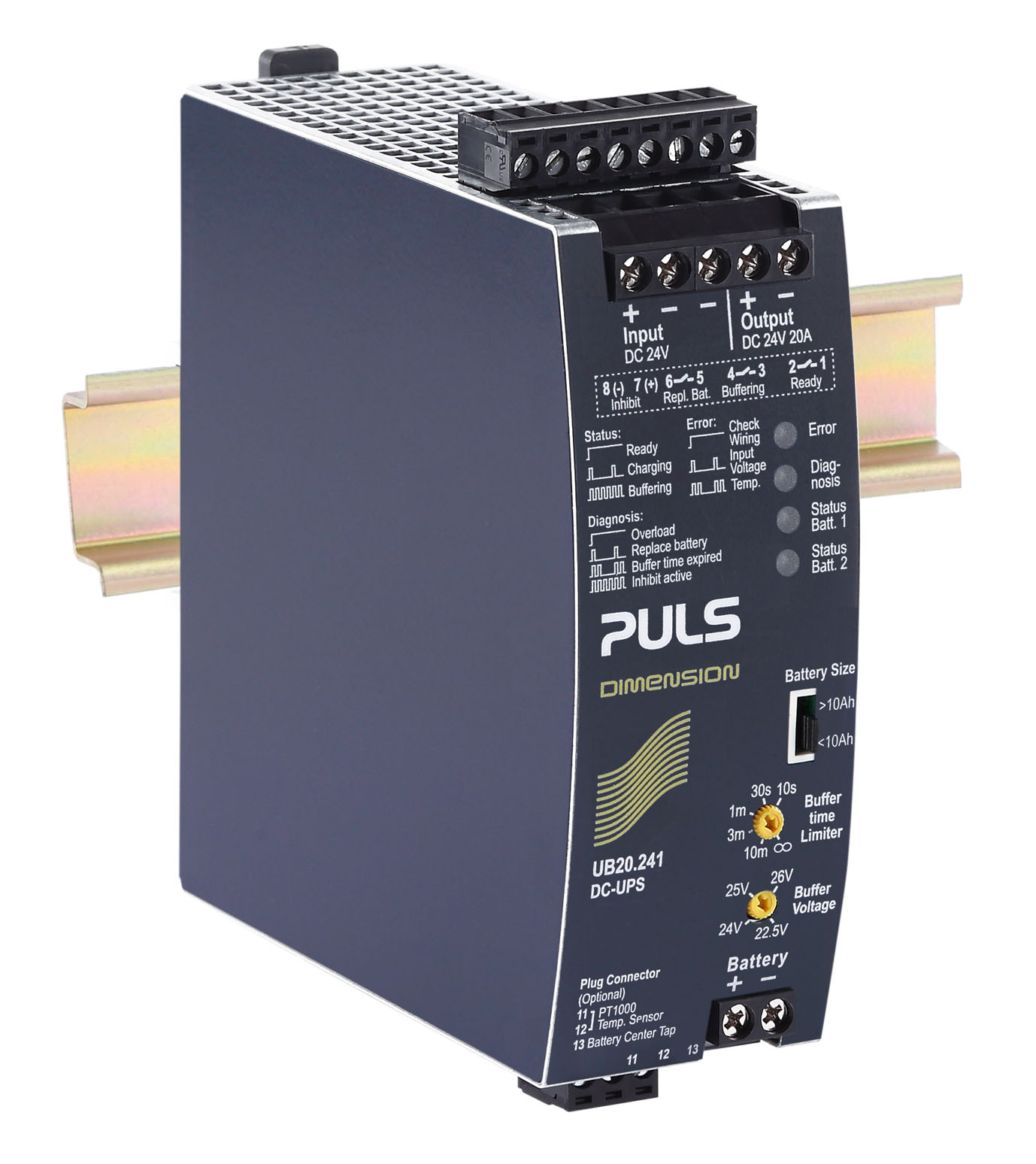

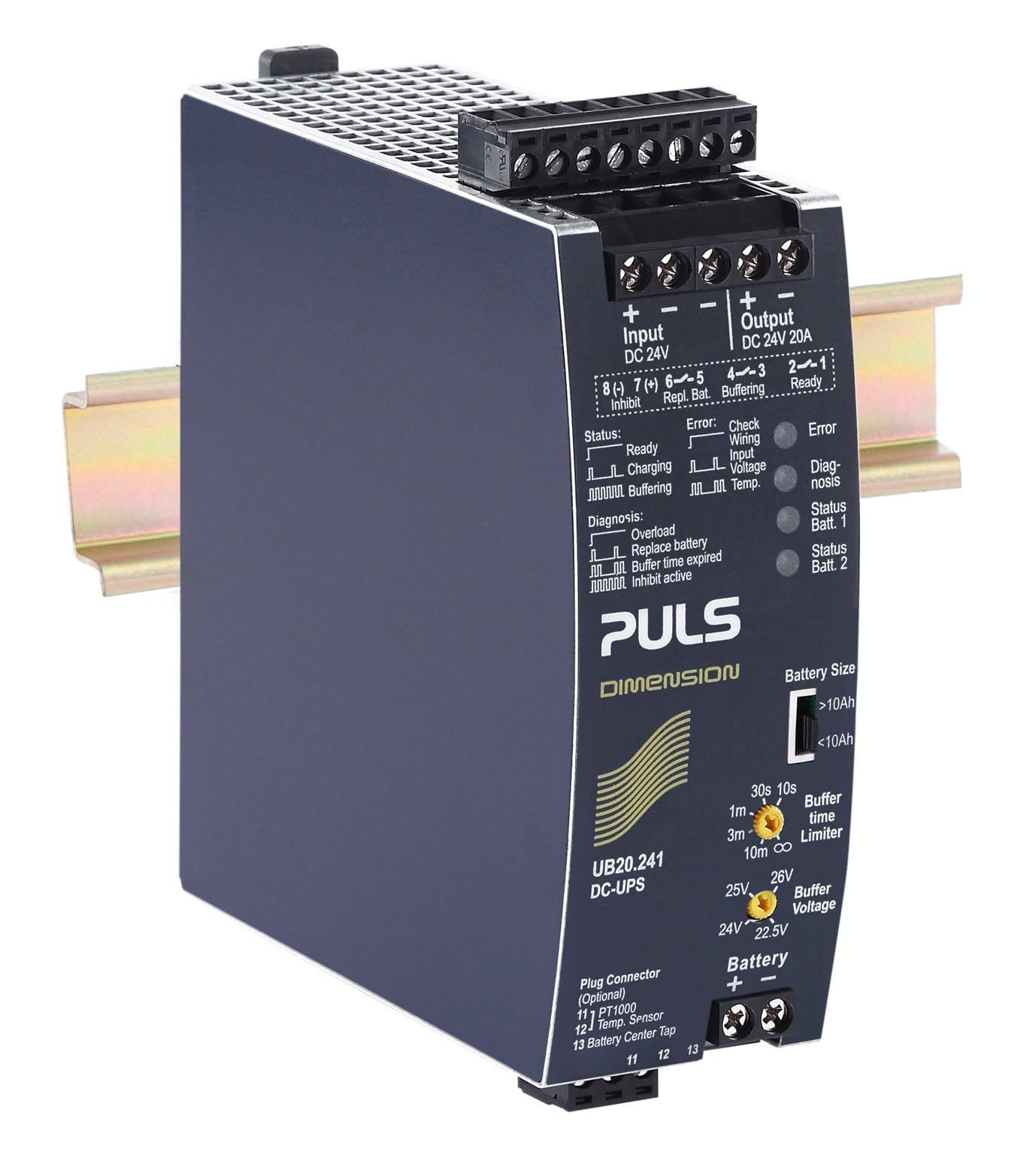

DC-UPS control unit
24 V, 20 A for battery sizes from 3.9Ah to 150Ah
Datasheet
24 V, 20 A for battery sizes from 3.9Ah to 150Ah
| DC output | DC 24 V |
|---|---|
| 20 A | |
| Input | DC 24 V (± 25 %) |
| Dimensions (WxHxD) | 46 x 124 x 127 mm |
| Weight | 700 g |
Input data
| DC Input voltage | DC 24 V (± 25 %) |
|---|---|
| Int. current consumption (incl. charging current) | 2.3/4.3 A |
Output data
| Nominal voltage | 24 Vdc |
|---|---|
| 22.5 Vds | |
| Output current | 25 A |
| 20 A | |
| Output power | 480 W |
| Power reserves | 50 % BonusPower for typ. 4s |
| Derating | 12 W/°C for +60 to +70 °C |
Buffering
| Storage element | External lead acid battery |
|---|---|
| Allowed battery size | 24 V, 3.9 to 150 Ah |
| Temperature tracking of the end-of-charge voltage | automatically with temp. sensor |
Overview
| Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
|---|---|
| Weight per unit (excl. packaging) | 700 g |
| Mounting method | DIN rail |
| Operating temp. range | -40 °C to 70 °C |
| Connection method | Screw terminals |
| Power losses, typ. | 4.6 W |
| MTBF SN 29500 @ 40 °C (h) | 649000 h |
