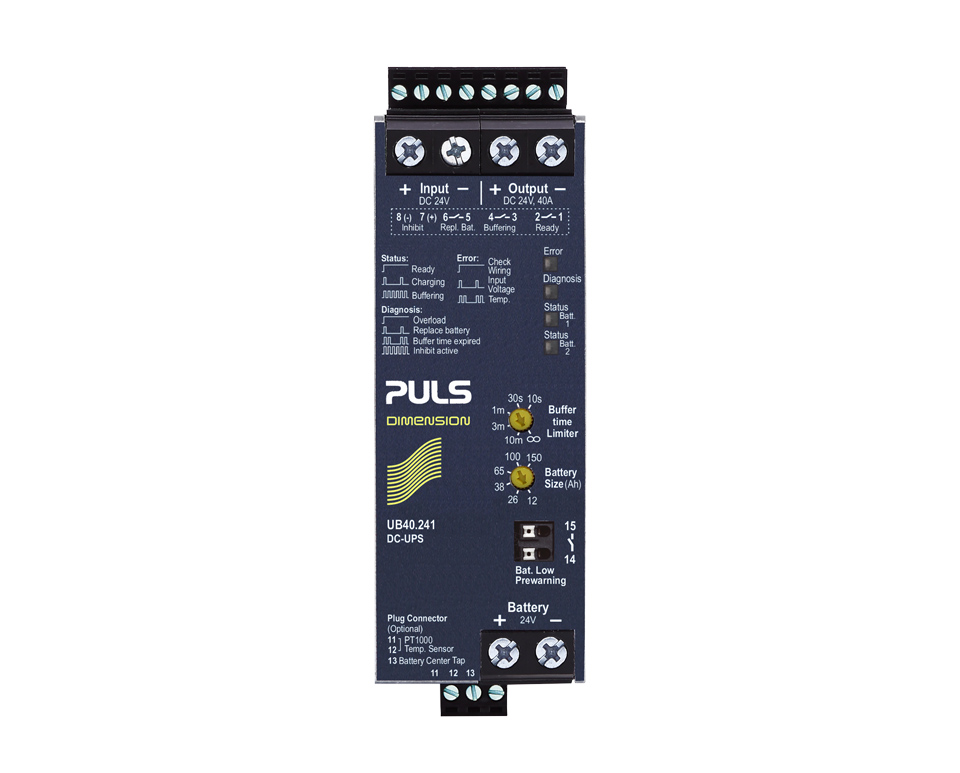

UB40.241

DC-UPS control unit
24 V, 40 A
for battery sizes from 12Ah to 200Ah
Datasheet
DC output DC 24 V
40 A
Input DC 24 V (± 25 %)
Dimensions (WxHxD) 46 x 124 x 127 mm
Weight 530 g
Compare

Input data

DC Input voltage DC 24 V (± 25 %)
Int. current consumption (incl. charging current) 3.2 / 6.2 A

Output data

Nominal voltage 24 Vdc
Output current 40 A
Output power 960 W
Derating 24 W/°C for +50 to +70 °C

Buffering

Storage element External lead acid battery
Allowed battery size 12 Ah - 200 Ah
Temperature tracking of the end-of-charge voltage automatically with temp. sensor

Overview

Dimensions (WxHxD) 46 mm x 124 mm x 127 mm
Weight per unit (excl. packaging) 530 g
Mounting method DIN rail
Operating temp. range -25 °C to 70 °C
Connection method Screw terminals
