UZK24.122

New

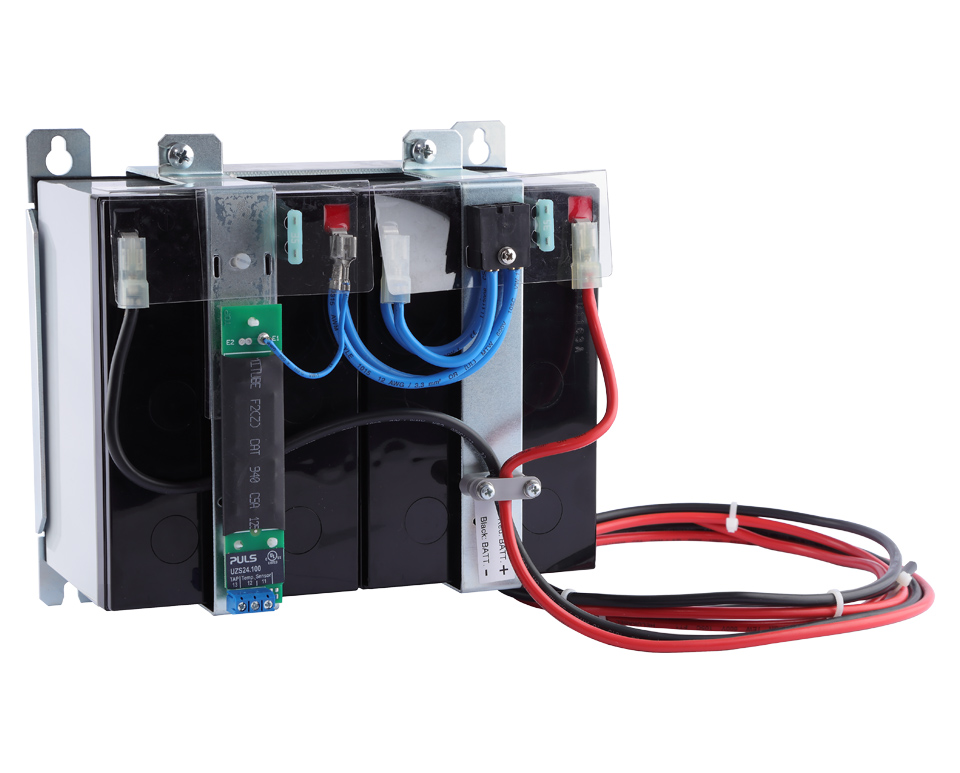

Battery module with battery
24 V, 12 A 24V, 12Ah battery capacity, for UB40

Dimensions (WxHxD)	203 x 186 x 125 mm
Weight	9400 g

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical data

Output data

Nominal voltage	12 Vdc

Overview

Dimensions (WxHxD)	203 mm x 186 mm x 125 mm
Weight per unit (excl. packaging)	9400 g

Techn. documentation

Datasheet

(754 KB)

Installation manual

(742 KB)

Installation manual - CCC - CN

(268 KB)

2-D dimensional mechanical CAD drawing DXF

(793 KB)

2-D dimensional mechanical drawing DWG

(342 KB)

3-D dimensional mechanical CAD model STEP

(1 MB)

2-D dimensional mechanical CAD drawing DXF

(610 KB)

MSDS (Material Safety Data Sheet) - YUASA Battery

(775 KB)

Image UZK24.122

(211 KB)

Approvals / Product Compliance

EU Declaration of Conformity

(9 KB)

ATEX EN 60079

IECEx IEC 60079

Class I Div. 2 Canada - UL

Class I Div. 2 USA - UL

CCC Certificate

(3 MB)

Material Compliance Declaration – RoHS, REACH, ...

(103 KB)

PULS Conflict Minerals Statement & RMI Reporting Templates (CMRT/EMRT)

(3 MB)

Features

24 V, 12 Ah Battery capacity (2x 12 V batteries in series)
Small mounting footprint
1.5 m power leads included
PT1000 sensor for battery module temperature included
Includes a centre-tap terminal with auto-resettable fuse
3 year warranty (except for batteries which are considered a service part)

Commercial info

Article number	UZK24.122
Product status	Lead time on request
UPC code	875404002130
Warranty period (months)	36
Country of origin	Czech Republic
Packaging unit	1 PU pc
Weight per piece (excl. packaging)	9400 g
E classification	eClass 5.1 27040603
	eClass 6.x 27040603
	eClass 7.x 27049201
	eClass 8.0 27049201
	eClass 9.0 27049201
	ETIM 4.0 EC000357
	ETIM 5.0 EC000357
Customs tariff number	85072080
