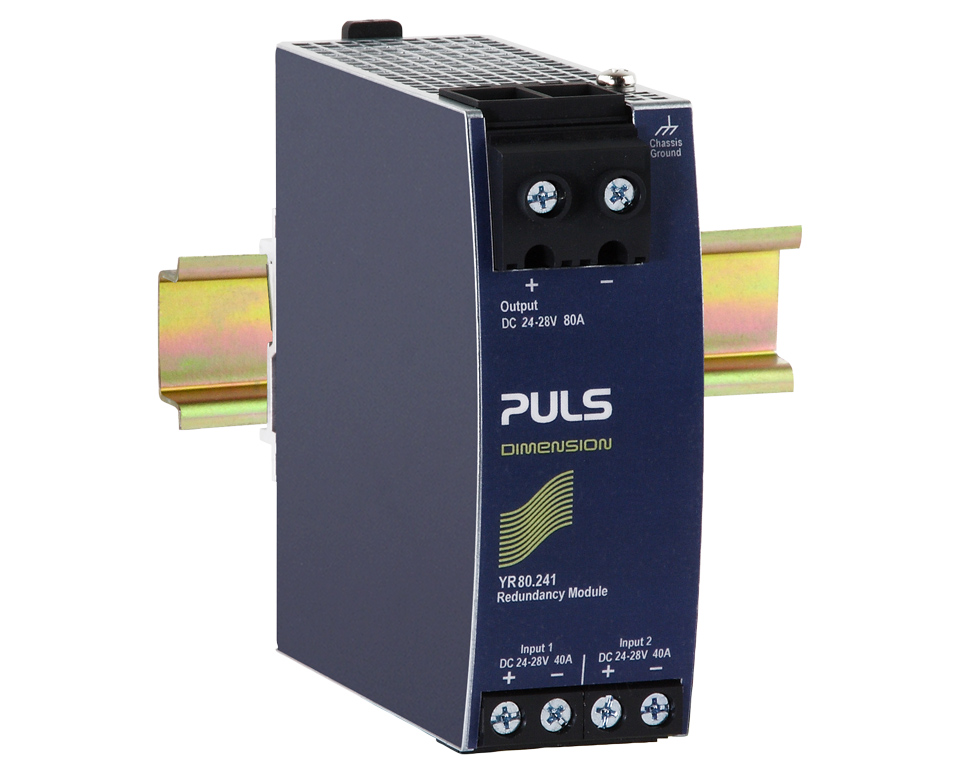

YR80.241
24 V, 80 A 2x 40A input, for all power supplies
DC output | 12 - 28 Vdc |
---|---|
80 A | |
Input | DC 12 V - 28 V |
Dimensions (WxHxD) | 46 x 124 x 127 mm |
Weight | 440 g |
Input data
Input current | 2 x 40 A |
---|---|
Nominal current per input | 40 A |
DC Input voltage | DC 12 V - 28 V |
Voltage drop | 49 mV |
Output data
Output current range | 80 A |
---|---|
Output current | 80 A |
Output current short circuit max. | 130 A |
Overview
Dimensions (WxHxD) | 46 mm x 124 mm x 127 mm |
---|---|
Weight per unit (excl. packaging) | 440 g |
Mounting method | DIN rail |
Operating temp. range | -40 °C to 70 °C |
Connection method | Screw terminals |
Power losses, typ. | 2.7 W |
No-load losses, typ. | 0.7 W |
MTBF SN 29500 @ 40 °C (h) | 2100000 h |
