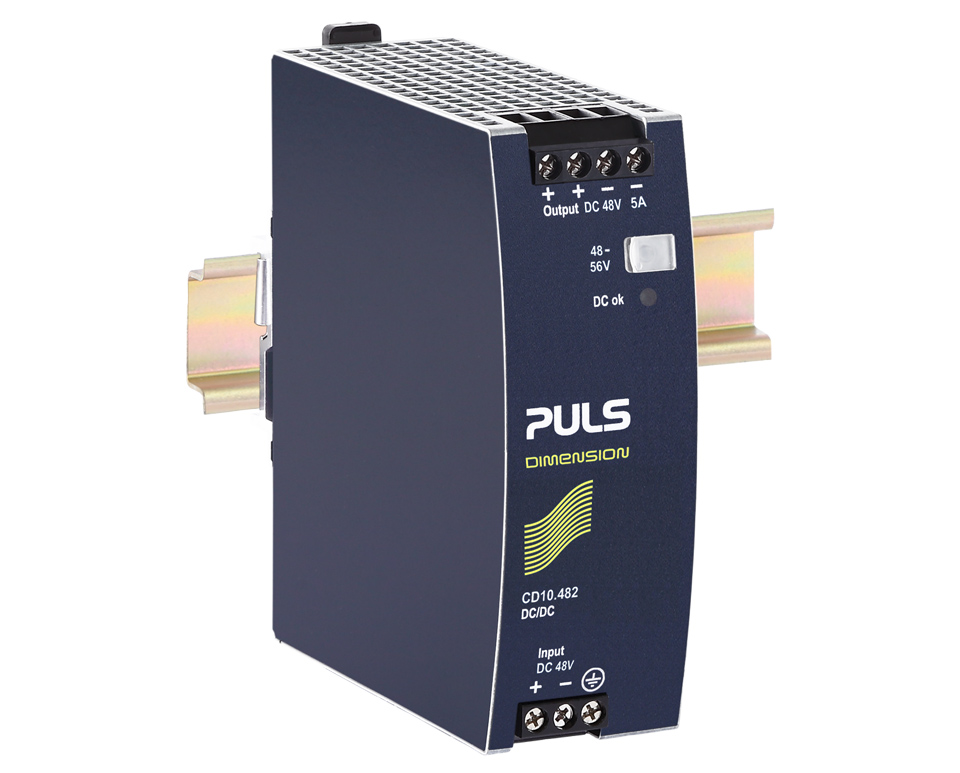

DC/DC converter
48V, 5A
DC output 48 - 56Vdc
5 - 4.3A
Input DC 48V (± 25%)
Dimensions (WxHxD) 42 x 124 x 117mm
Weight 500g

Input data

DC Input voltage DC 48V (± 25%)

Output data

Nominal voltage 48Vdc
Adjustment range 48 - 56V
Output current range 5 - 4.3A
Output current 4.3A at 56V
5A at 48V
Output power 240W
Power reserves 20% Power Boost
Derating 6W/°C for >+60°C
Ripple and noise voltage max. 100mVpp


Dimensions (WxHxD) 42mm x 124mm x 117mm
Weight per unit (excl. packaging) 500g
Mounting method DIN rail
Operating temp. range -25°C to 70°C
Connection method Screw terminals
Efficiency, typ. 95.1%
Power losses, typ. 12.4W 12.4W
MTBF SN 29500 @ 40°C (h) 853000h
