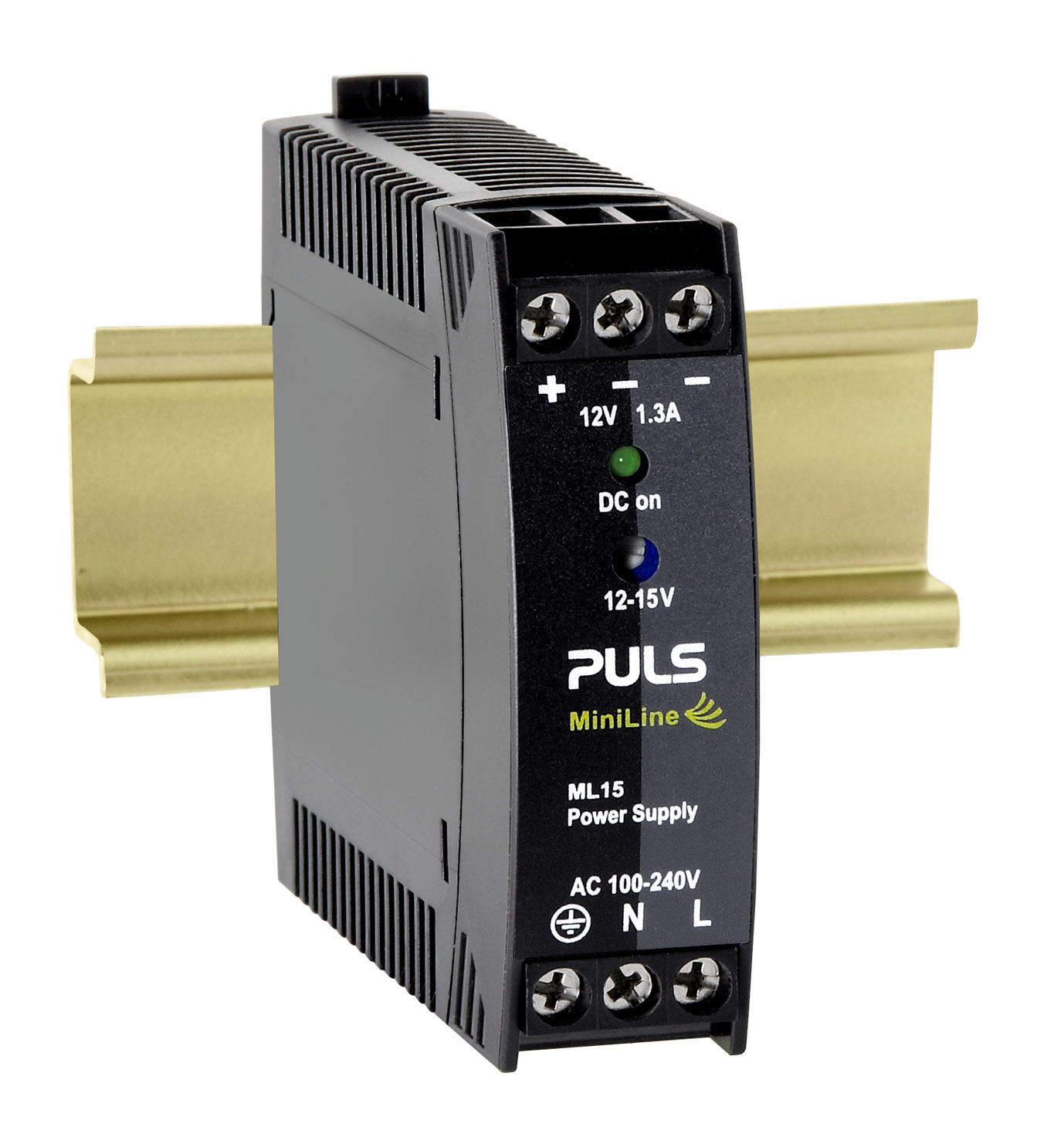

ML15.121
DIN rail power supplies for 1-phase system
12 V, 1.3 A
Datasheet
12 V, 1.3 A
| DC output | 12 - 15 Vdc |
|---|---|
| 1.3 - 1 A | |
| 15 W | |
| Input | AC 100 - 240 V (-15 %/+10 %) |
| DC 110 V - 300 V (-20 %/+25 %) | |
| Dimensions (WxHxD) | 23 x 75 x 91 mm |
| Weight | 130 g |
Input data
| AC Input voltage | AC 100 - 240 V (-15 %/+10 %) |
|---|---|
| DC Input voltage | DC 110 V - 300 V (-20 %/+25 %) |
| Power factor | 0.44 |
| Input inrush current limitation | NTC |
| Input inrush current | 16 A / 31 A |
| External input fuse recommendation | B-6 A / C-3 A |
Output data
| Nominal voltage | 12 Vdc |
|---|---|
| Adjustment range | 12 - 15 V |
| Output current range | 1.3 - 1 A |
| Output current | 1 A at 15 V |
| 1.3 A at 12 V | |
| Output power | 15 W |
| Derating | 0.4 W/°C for >+60 °C |
| Ripple and noise voltage max. | 75 mVpp |
Overview
| Dimensions (WxHxD) | 23 mm x 75 mm x 91 mm |
|---|---|
| Weight per unit (excl. packaging) | 130 g |
| Mounting method | DIN rail |
| Connection method | Screw terminals |
| Efficiency, typ. | 82.5 % |
| Power losses, typ. | 3.2 W |
| MTBF SN 29500 @ 40 °C (h) | 3811000 h |
