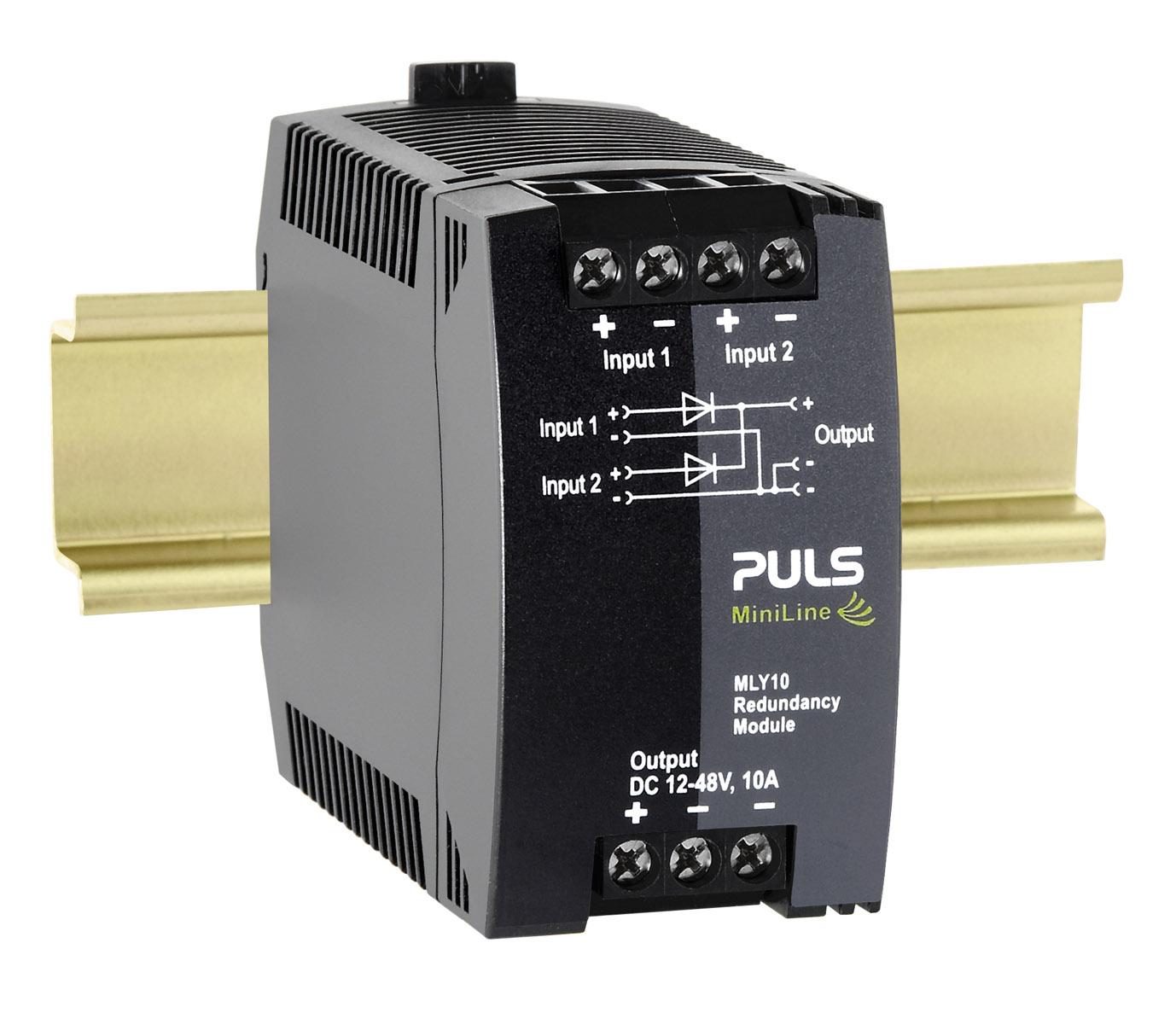

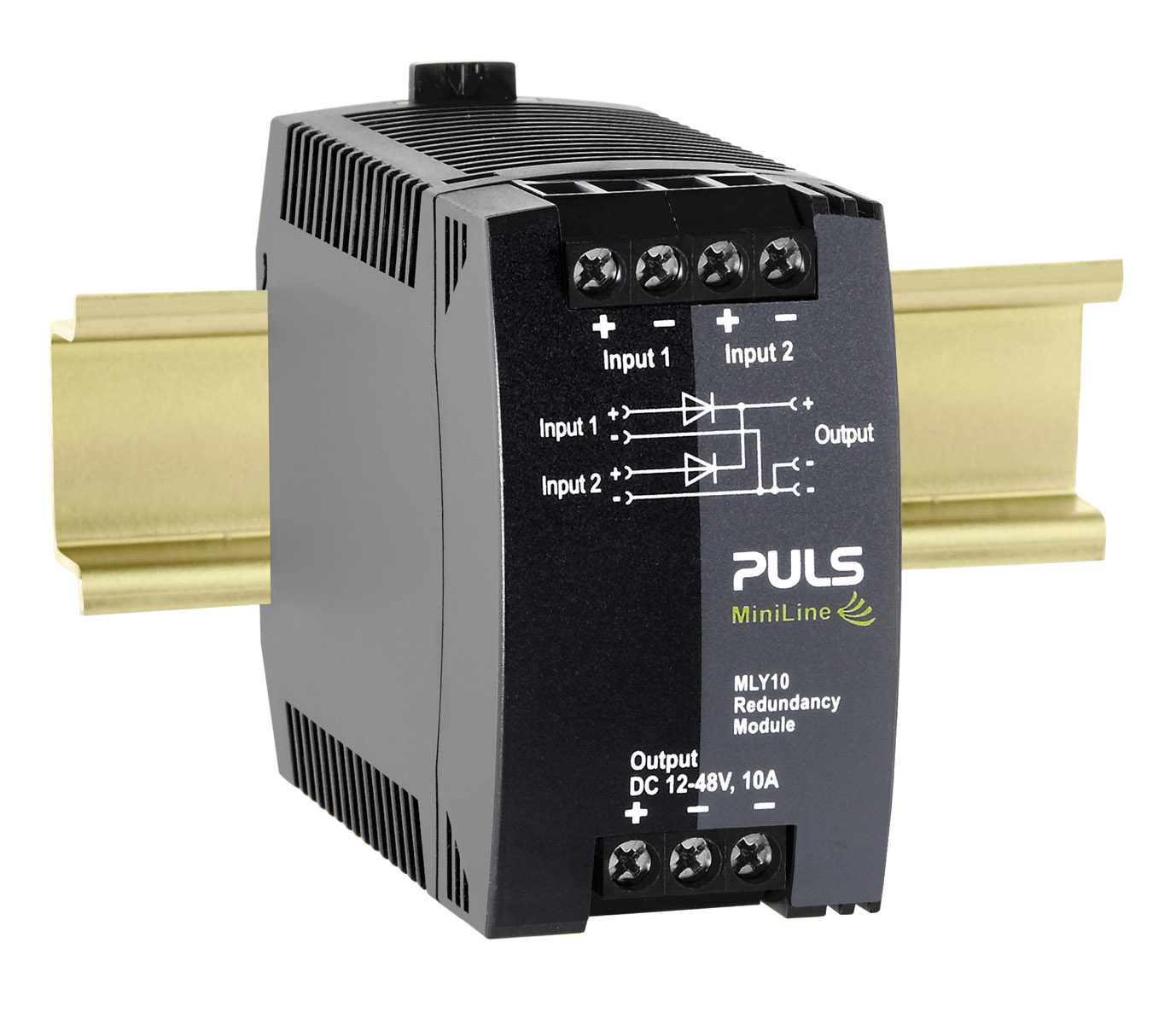

MLY10.241
Diode redundancy module
24V, 10A 2x 5A input
Datasheet
24V, 10A 2x 5A input
| DC output | 12 - 48Vdc |
|---|---|
| 10A | |
| Input | DC 12V - 48V (± 25%) |
| Dimensions (WxHxD) | 45 x 75 x 91mm |
| Weight | 140g |
Input data
| Input current | 2 x 5A |
|---|---|
| Nominal current per input | 5A |
| DC Input voltage | DC 12V - 48V (± 25%) |
| Voltage drop | 800mV |
Output data
| Output current range | 10A |
|---|---|
| Output current | 10A |
| Output current short circuit max. | 16A |
| Derating | 0.25W/°C for >+60°C |
Overview
| Dimensions (WxHxD) | 45mm x 75mm x 91mm |
|---|---|
| Weight per unit (excl. packaging) | 140g |
| Mounting method | DIN rail |
| Operating temp. range | -40°C to 70°C |
| Connection method | Screw terminals |
| Power losses, typ. | 4.0W |
| No-load losses, typ. | 0W |
| MTBF SN 29500 @ 40°C (h) | 85000000h |
